OEM Cathodic Protection Anodes 9.1kg Ship Sacrificial Anode MG

  • OEM Cathodic Protection Anodes 9.1kg Ship Sacrificial Anode MG
  • OEM Cathodic Protection Anodes 9.1kg Ship Sacrificial Anode MG
Place of Origin CHINA
Certification USA: G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords High Potential Magnesium Anode Material High Purity Magnesium
Application Cathodic Protection Adventage Better Electrochemical Properties
Service OEM / OEM Technical Standard GB/T 17731-2015
High Light

OEM Cathodic Protection Anodes mg

,

Cathodic Protection Anodes mg 9.1kg

,

9.1kg Ship Sacrificial Anode mg
Leave a Message
Product Description

1.7V High Potential Magnesium Anode For Cathodic Protection

Introduction:

The high potential magnesium anode is produced of high-purity ingots following a specialized manufacturing technology to ensure its excellent electrochemical properties that are assessed in accordance with the ASTM97-89 standard. The anodes are sacrificed uniformly and possess a long service life.

Such high potential anodes are recommended to be used in the case where the electric resistivity of the soil is higher than 2000cm.

Chemical composition %:



Alloy

Al
(max)

Mn
(max)

Si
(max)

Cu
(max)

Ni
(max)

Fe
(max)

Other impurity(each)
(max)

Total Impurities
(max)
Mg-Mn 0.01 0.50-1.30 0.05 0.005 0.001 0.03 0.05 0.30


The electrochemical performance of:


Open voltage
(-V)

Closed voltage
(-V)

Actual capacity
(A.h/kg)

Efficiency
(%)
1.70-1.75 1.58-1.62 1230min 50min



Features:



The main characteristics of high-potential magnesium alloy sacrificial anodes are large electricity per unit mass, high potential, small specific gravity, negative potential, high driving voltage to Fe, low current efficiency, etc., especially suitable for high resistivity media. When using magnesium alloy sacrificial anode, care should be taken to avoid collision with steel structure. American standard ASTM8431993 (2003) and Chinese standard GB/T177312004 both require the current efficiency of high-potential magnesium alloy sacrificial anodes to be higher than 50% and the potential higher than 1.77 V.



Application:



Applicable to anti-corrosion protection of the oil, gas, water supply, and drainage pipelines, as well as the protection of harbor, ship, reservoir, gate, and other projects in the water.

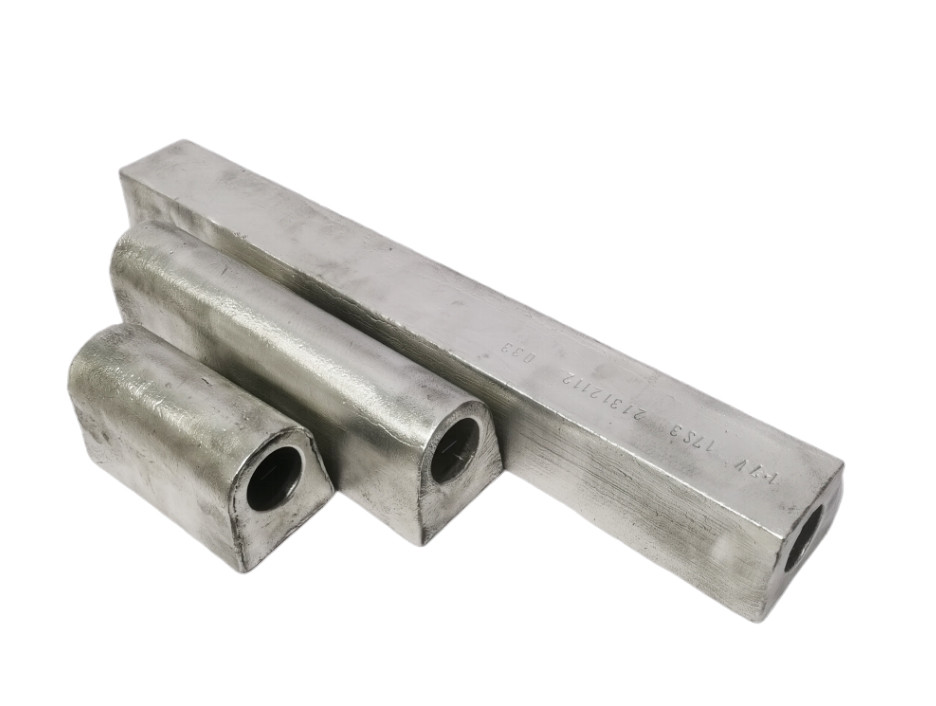

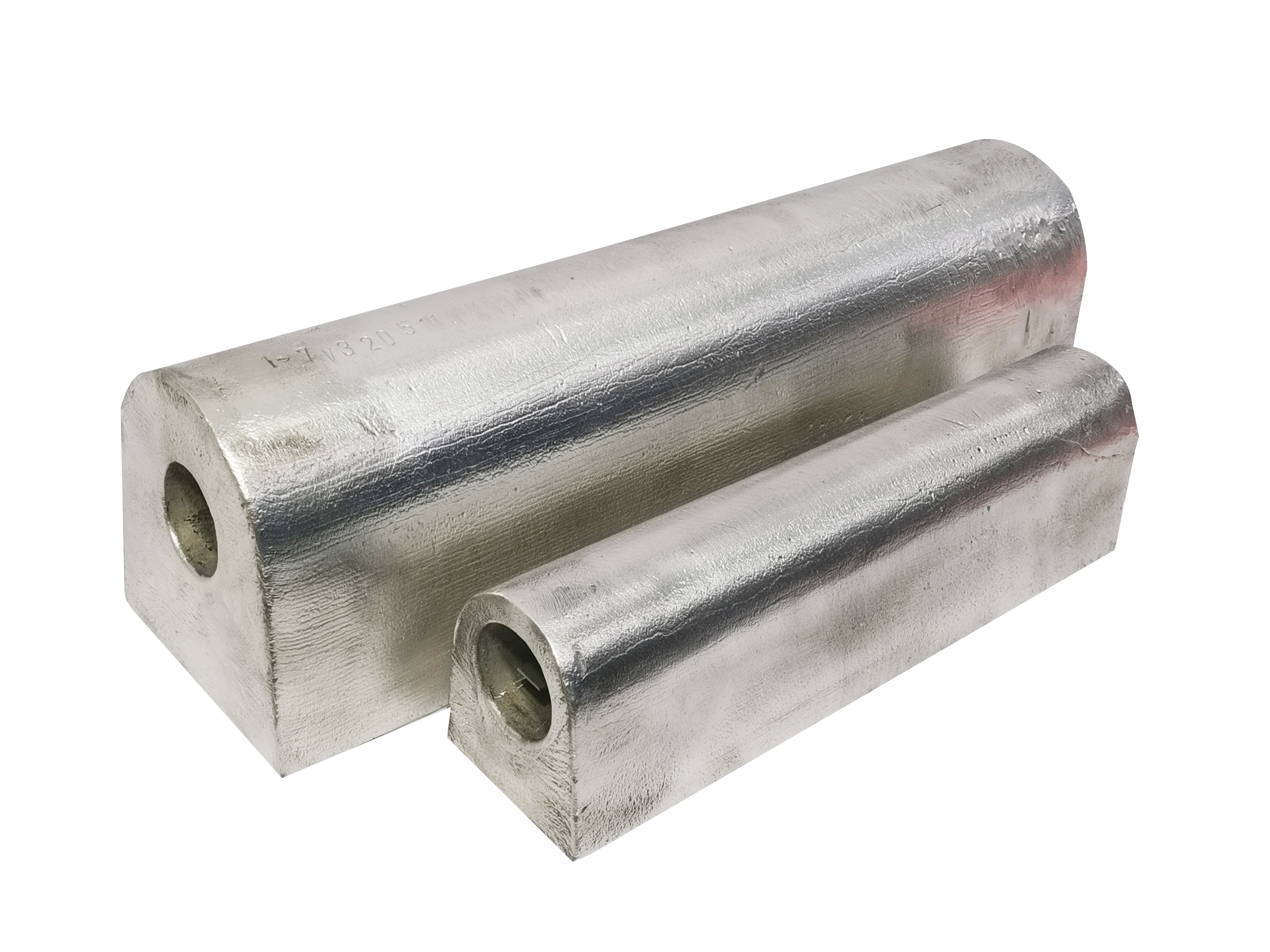

Photos:

OEM Cathodic Protection Anodes 9.1kg Ship Sacrificial Anode MG 0


FAQ:

Q : Can I add my logo on the boxes/cartons?
A : Yes,OEM and ODM are available from us.

Q : What are the benefits of being a distributor ?
A : Special discount Marketing protection.

Q : How does your factory control the quality of your products?
A : 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.

Q : Can we mix items in one 20ft container?
A : Yes.

Q : Can I have a visit to your factory before the order?
A : Sure, welcome your visit to factory.

Q : What are the necessary parameters to get an accurate quote?
A : Material chemical composition, anode size, cable and other accessaries information.

Tags:

ASTM High Potential Magnesium Anode

32 Lb Magnesium Anode

Magnesium Sacrificial Anode ASTM97-89
