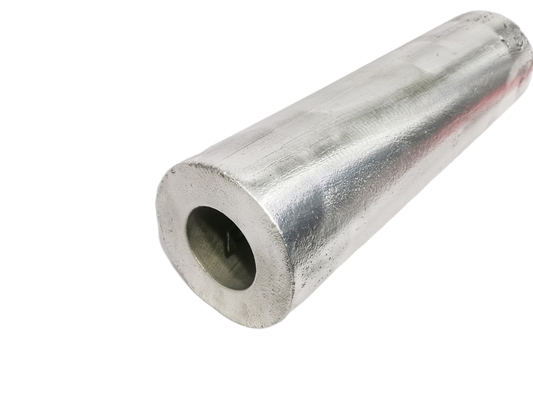

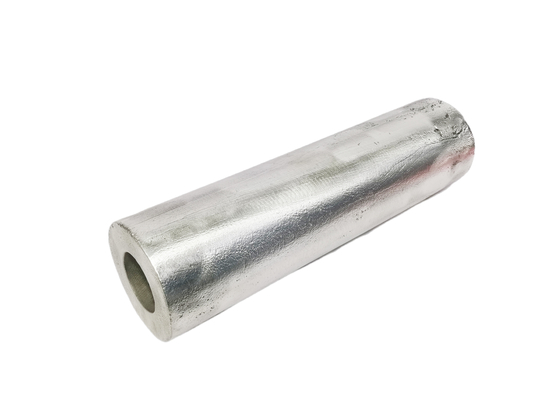

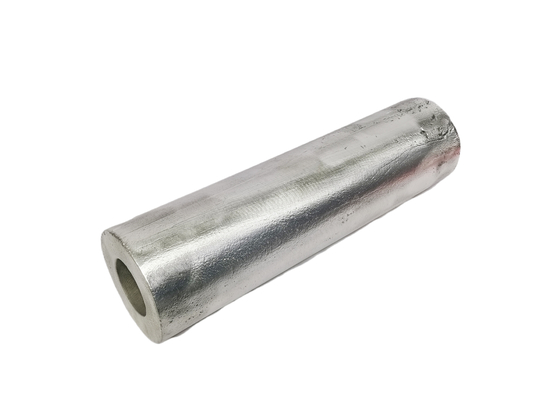

R Type High Potential Magnesium Anode Cathodic Protection R36 3.7kg
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | High Potential Magnesium Anode | Material | High Purity Magnesium |
|---|---|---|---|
| Application | Cathodic Protection | Adventage | Better Electrochemical Properties |
| Service | OEM / OEM | Technical Standard | GB/T 17731-2015 |
| High Light | High Potential Magnesium Anode R36,R Type High Potential Magnesium Anode,Magnesium Anode Cathodic Protection 3.7kg |
||
Product Description
R Type Magnesium Anode High Potential Widely Used In Soil For Cathodic Protection
Introduction:
The Mg-Mn sacrificial anode is a high-potential magnesium anode, and its current efficiency is usually around 50%.
On the basis of fully studying the corrosion laws of Mg-Mn sacrificial anodes and high-purity magnesium anodes, two main reasons that affect the current efficiency of high-potential magnesium anodes are summarized, self-corrosion and large-scale shedding of grains. Two main aspects of anode current efficiency are used to improve the current efficiency of the anode, and a specific process is adopted to make the Mg-Mn sacrificial anode have excellent electrochemical performance, uniform consumption and longer service life in the cathodic protection process.
Chemical composition %:
| Alloy |
Al |
Mn |
Si |
Cu |
Ni |
Fe |
Other impurity(each) |
Total Impurities |
| Mg-Mn | 0.01 | 0.50-1.30 | 0.05 | 0.005 | 0.001 | 0.03 | 0.05 | 0.30 |
The electrochemical performance of:
|
Open voltage |
Closed voltage |
Actual capacity |
Efficiency |
| 1.70-1.75 | 1.58-1.62 | 1230min | 50min |
Specification:
| Type | N.W.(kg) | G.W.(kg) | DIA(mm) | Length(mm) | Insert |
| 1.7v | Dimension | ||||
| R36 | 3.6 | 3.7 | 114 | 202 | 25x2x190 |
| R41 | 4.1 | 4.2 | 114 | 230 | 25x2x190 |
| R50 | 5.0 | 5.1 | 114 | 280 | 25x2x195 |
| R77 | 7.7 | 7.8 | 114 | 431 | 25x2x332 |
| R100 | 10.0 | 10.2 | 114 | 560 | 25x2x428 |
| R145 | 14.5 | 14.7 | 146 | 494 | 25x2x428 |
| R227 | 22.7 | 22.9 | 178 | 520 | 25x2x428 |
| R274(I) | 27.3 | 27.6 | 178 | 630 | 25x3x550 |
| R274(II) | 27.3 | 28.2 | 114 | 1528 | 25x3x190 |
Features:
The main characteristics of high-potential magnesium alloy sacrificial anodes are large electricity per unit mass, high potential, small specific gravity, negative potential, high driving voltage to Fe, low current efficiency, etc., especially suitable for high resistivity media. When using magnesium alloy sacrificial anode, care should be taken to avoid collision with steel structure. American standard ASTM8431993 (2003) and Chinese standard GB/T177312004 both require the current efficiency of high-potential magnesium alloy sacrificial anodes to be higher than 50% and the potential higher than 1.77 V.
Application:
Applicable to anti-corrosion protection of the oil, gas, water supply and drainage pipelines, as well as the protection of harbor, ship, resevoir, gate and other projects in water.
