R36 Magnesium Anodes For Freshwater R Type
| Place of Origin | CHINA |
|---|---|
| Certification | USA : G97，ASTM |
| Model Number | R type |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Anodes | Material | High Purity Magnesium |
|---|---|---|---|
| Adventage | Better Electrochemical Properties | Technical Standard | GB/T 17731-2015 |
| Application | Corrosion Protection | Service | OEM / OEM |
| Highlight | Magnesium Anodes For Freshwater,Magnesium Anodes For Freshwater R type,Extruded Magnesium R274 |
||
Product Description
High Purity Magnesium Sacrifical Anode For Corrosion Protection
Introduction:
Magnesium anode is a common sacrificial anode material used in electrochemical cathodic protection engineering. This galvanic anode is connected to steel structures to prevent or slow down rusting. This magnesium sacrificial anode has high chemical activity, its electrode potential is rather negative, and the driving voltage is quite high.
Magnesium sacrificial anode features:
- good protection performance
- easy installation
- automatic operation after installation
- no maintenance
- no external current
- low engineering cost
- easy replacement
Magnesium alloy anode is an ideal cathodic protection method.
Magnesium sacrificial anode parameters:
| Type | N.W.(kg) | G.W.(kg) | DIA(mm) | Length(mm) | Length(mm) | Insert |
| 1.7v | 1.5v | Dimension | ||||
| R36 | 3.6 | 3.7 | 114 | 202 | 193 | 25x2x190 |
| R41 | 4.1 | 4.2 | 114 | 230 | 220 | 25x2x190 |
| R50 | 5.0 | 5.1 | 114 | 280 | 268 | 25x2x195 |
| R77 | 7.7 | 7.8 | 114 | 431 | 412 | 25x2x332 |
| R100 | 10.0 | 10.2 | 114 | 560 | 536 | 25x2x428 |
| R145 | 14.5 | 14.7 | 146 | 494 | 492 | 25x2x428 |
| R227 | 22.7 | 22.9 | 178 | 520 | 497 | 25x2x428 |
| R274(I) | 27.3 | 27.6 | 178 | 630 | 618 | 25x3x550 |
| R274(II) | 27.3 | 28.2 | 114 | 1528 | 1462 | 25x3x190 |
Applications:
Magnesium alloy sacrificial anode is an ideal sacrificial anode material, suitable for soil and fresh water media, because of its negative potential, which is lower than that of steel, with extremely high electrochemical performance, uniform anode consumption, long life and large power generation per unit mass. Cathodic protection of metal structures, used in oil pipelines, natural gas pipelines, underground oil tanks, oil platforms, water heaters, etc.

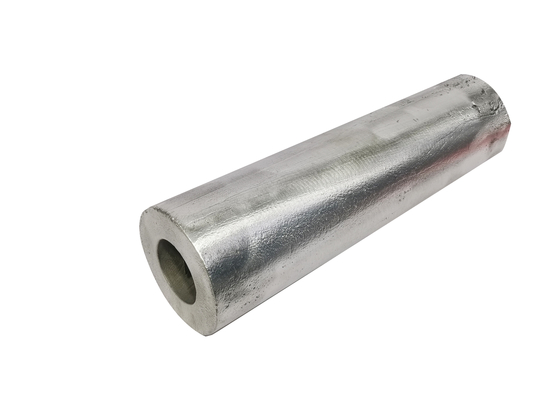

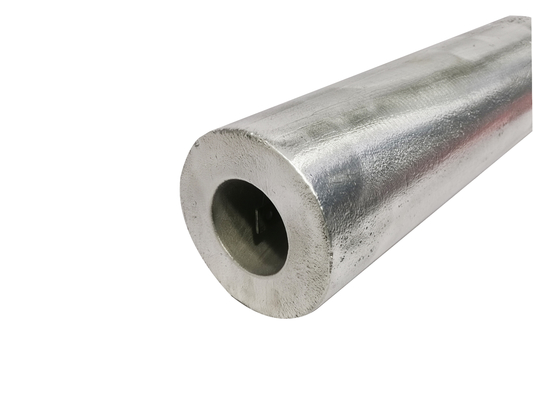

Photos:
