D Type Magnesium Sacrificial Anodes 20D2-2 Anode Magnesium OEM
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Sacrificial Anodes | Material | High Purity Magnesium |
|---|---|---|---|
| Application | Cathodic Protection | Adventage | Better Electrochemical Properties |
| Service | OEM / OEM | Technical Standard | GB/T 17731-2015 |
| High Light | D Type Magnesium Sacrificial Anodes,Magnesium Sacrificial Anodes 20D2-2,Anode MagnesiumOEM |
||
Product Description

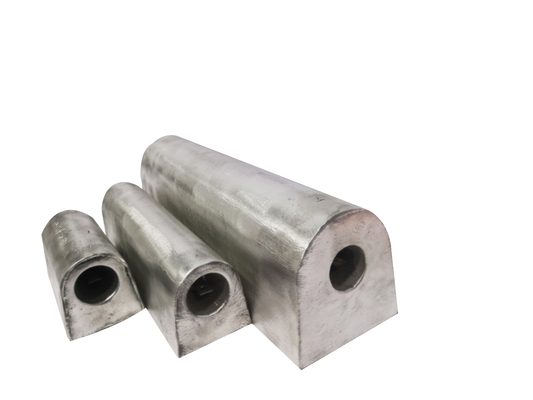

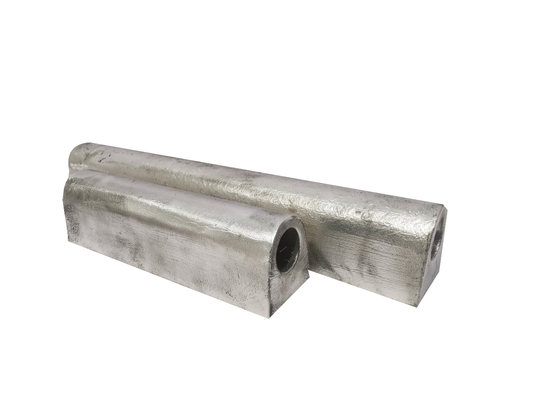

High Purity Magnesium Metal D Type Magnesium Anode For Better Electrochemical Properties
Introduction:
When metal structures are submerged or buried, oxidation can lead to rusting, which is a chemical reaction of the metal with its surroundings. This reaction can lead to loss of metal and ultimately overall structural integrity over time, if not addressed, to the point of failure.
The sacrificial anode (or galvanic cell) is the main component of the current cathodic protection system. These blocks, rods, plates or extruded strips are made of metal alloys with lower voltage activity than the structural alloys that require protection. In other words, the electron supply that promotes the dissolution of the primary metal will be diverted or consumed by the "sacrificial" metal.
These types of systems protect metal structures (usually steel) from the harmful effects of rust by using the physics of anodes.
Features:
Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.
Specification:
| Type | Weight(kg) | Width(mm) | Hight(mm) | Length(mm) | Insert |
| 9D2-1 | 4.1 | 63.5 | 63.5 | 669.9 | Strip |
| 9D2-2 | 4.1 | 69.9 | 76.2 | 560 | Strip |
| 14D2-1 | 6.35 | 63.5 | 63.5 | 1054 | Strip |
| 14D2-2 | 6.35 | 69.9 | 76.2 | 850.9 | Strip |
| 20D2-1 | 9.1 | 63.5 | 63.5 | 1505 | Strip |
| 20D2-2 | 9.1 | 69.9 | 76.2 | 1270 | Strip |
| 9D3 | 4.1 | 88.9 | 95.25 | 258.8 | Strip |
| 17D3 | 7.7 | 88.9 | 95.25 | 657.2 | Strip |
| 32D5 | 14.5 | 139.7 | 146.05 | 523.9 | Strip |
| 48D5 | 21.8 | 139.7 | 146.05 | 765.2 | Strip |
Applications:
Magnesium alloy sacrificial anode is an ideal sacrificial anode material, suitable for soil and fresh water media, because of its negative potential, which is lower than that of steel, with extremely high electrochemical performance, uniform anode consumption, long life and large power generation per unit mass. Cathodic protection of metal structures, used in oil pipelines, natural gas pipelines, underground oil tanks, oil platforms, water heaters, etc.
Photos:
FAQ:
Q : Can I add my logo on the boxes/cartons?
A : Yes,OEM and ODM are available from us.
Q : What are the benefits of being a distributor ?
A : Special discount Marketing protection.
Q : How does your factory control the quality of your products?
A : 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.
