GB/T 17731-2015 Magnesium Sacrificial Anodes 9S3
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Anodes | Type | "S" Anode |
|---|---|---|---|
| Material | High Purity Magnesium | Application | Petroleum Pipelines |
| Adventage | Better Electrochemical Properties | Service | OEM / OEM |
| Technical Standard | GB/T 17731-2015 | ||
| Highlight | GB/T 17731-2015 Magnesium Sacrificial Anodes,Magnesium Sacrificial Anodes 9S3,9S3 Extruded Magnesium Anodes |
||
Product Description
GB/T 17731-2015 Magnesium Sacrificial Anodes Widely Used In Petroleum Pipelines
Introduction:
Magnesium anode is a sacrificial anode material commonly used in electrochemical cathodic protection engineering. This galvanized anode is attached to the steel structure to prevent or slow down rust. This magnesium sacrificial anode has high chemical activity, negative electrode potential and high driving voltage.
Specification:
| Type | N.W.(kg) | G.W.(kg) | Top Width | Bottom Width | Length | Insert |
| (mm) | (mm) | (mm) | ||||
| 3S3 | 1.36 | 1.4 | 76 | 76 | 114 | Strip |
| 5S3 | 2.27 | 2.3 | 76 | 76 | 191 | Strip |
| 9S2 | 4.1 | 4.2 | 71.1 | 50.8 | 711 | Strip |
| 9S3 | 4.1 | 4.2 | 76 | 76 | 343 | Strip |
| 17S3 | 7.7 | 7.8 | 96.5 | 76.2 | 650 | Strip |
| 17S4 | 7.7 | 7.8 | 102 | 102 | 432 | Strip |
| 32S5 | 14.515 | 14.62 | 127 | 127 | 533 | Strip |
| 48S5 | 21.77 | 21.87 | 127 | 127 | 800 | Strip |
Features:
Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.
Applications:
Sacrificial anodes are used to protect the hulls of ships, water heaters, pipelines, distribution systems, above-ground tanks, underground tanks, and refineries – to name a few. The application will depend largely on the chemical and mineral environment (whether soil or water). Remember, the anodes in this type of cathodic protection system must be periodically inspected and replaced when they are consumed to the point of depletion.

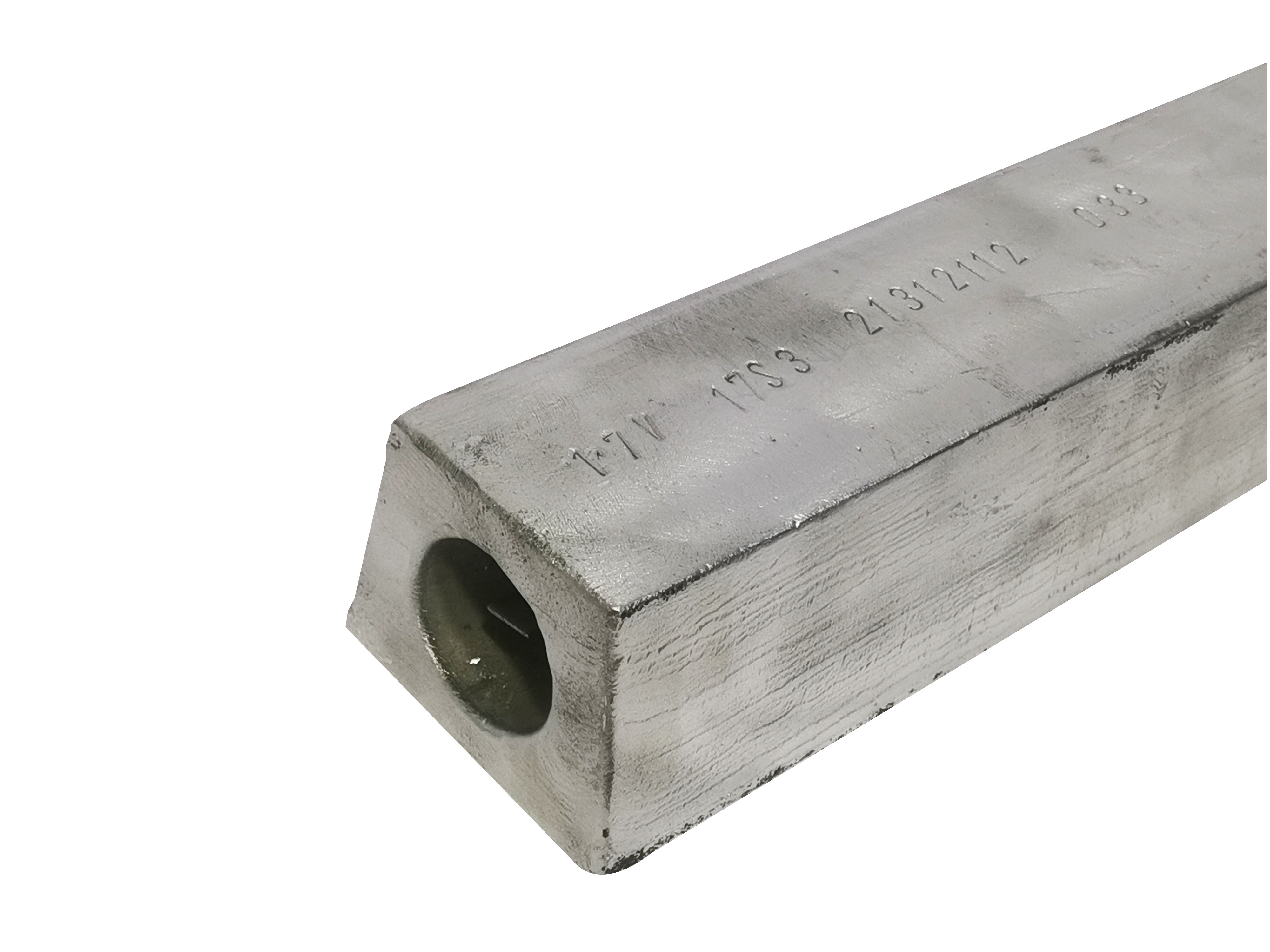

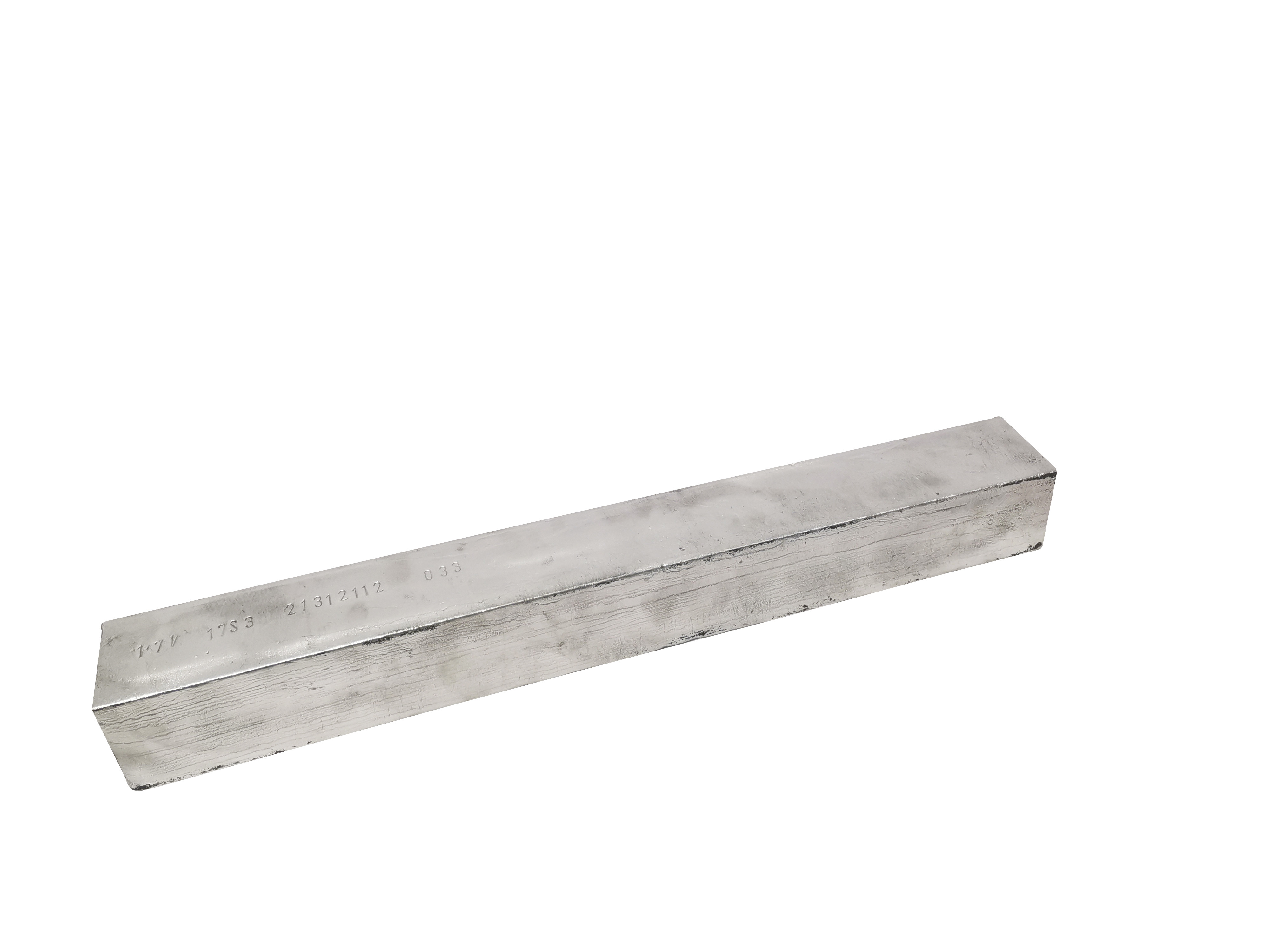

Photo:
FAQ:
Q : Can I add my logo on the boxes/cartons?
A : Yes,OEM and ODM are available from us.
Q : What are the benefits of being a distributor ?
A : Special discount Marketing protection.
Q : How does your factory control the quality of your products?
A : 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.
Q : Can we mix items in one 20ft container?
A : Yes.
Q : Can I have a visit to your factory before the order?
A : Sure,welcome your visit of factory.
Q : What's the necessary parameters to get the accurate quote?
A : Material chemical composition, anode size, cable and other accessaries information.
