ASTM Magnesium Anodes 20D2-1 Sacrificial Galvanic Anodes Mg
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Sacrificial Anodes | Material | High Purity Magnesium |
|---|---|---|---|
| Application | Cathodic Protection | Adventage | Better Electrochemical Properties |
| Service | OEM / OEM | Technical Standard | GB/T 17731-2015 |
| High Light | ASTM Magnesium Anodes,Magnesium Anodes 20D2-1,20D2-1 Sacrificial Galvanic Anodes Mg |
||
Product Description
High Purity Magnesium Metal D Type Magnesium Anode For Better Electrochemical Properties
Introduction:
When metal structures are submerged or buried, oxidation can cause rusting, which is a chemical reaction of the metal with its surroundings. This reaction can lead to loss of metal and ultimately overall structural integrity over time if not addressed until the point of failure.
The sacrificial anode (or galvanic cell) is the main component of the current cathodic protection system. These blocks, rods, plates or extruded strips are made of metal alloys with lower voltage activity than the structural alloys that require protection. In other words, the electron supply that promotes the dissolution of the primary metal will be diverted or consumed by the "sacrificial" metal.
Features:
Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.
Specification:
| Type | Weight(kg) | Width(mm) | Hight(mm) | Length(mm) | Insert |
| 9D2-1 | 4.1 | 63.5 | 63.5 | 669.9 | Strip |
| 9D2-2 | 4.1 | 69.9 | 76.2 | 560 | Strip |
| 14D2-1 | 6.35 | 63.5 | 63.5 | 1054 | Strip |
| 14D2-2 | 6.35 | 69.9 | 76.2 | 850.9 | Strip |
| 20D2-1 | 9.1 | 63.5 | 63.5 | 1505 | Strip |
| 20D2-2 | 9.1 | 69.9 | 76.2 | 1270 | Strip |
| 9D3 | 4.1 | 88.9 | 95.25 | 258.8 | Strip |
| 17D3 | 7.7 | 88.9 | 95.25 | 657.2 | Strip |
| 32D5 | 14.5 | 139.7 | 146.05 | 523.9 | Strip |
| 48D5 | 21.8 | 139.7 | 146.05 | 765.2 | Strip |
Applications:
Magnesium anodes are effective and affordable in fighting corrosion. For more than two decades, magnesium anodes have played a key role in protecting steel structures in salt and fresh water, including:
- Hull and various other boats
- Water tank
- Piers, piers and piers
- pipeline
- heat exchanger
- travel screen

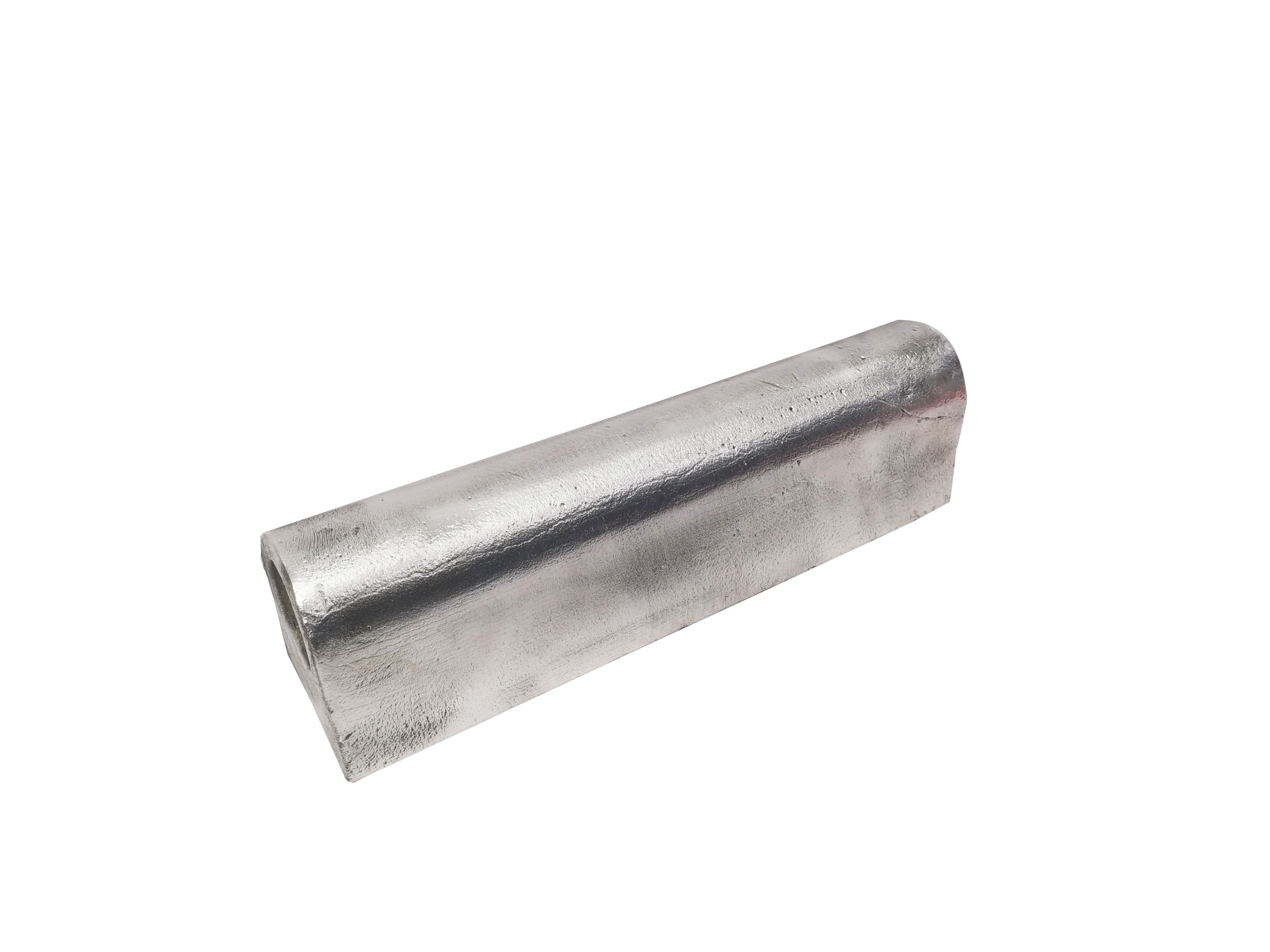

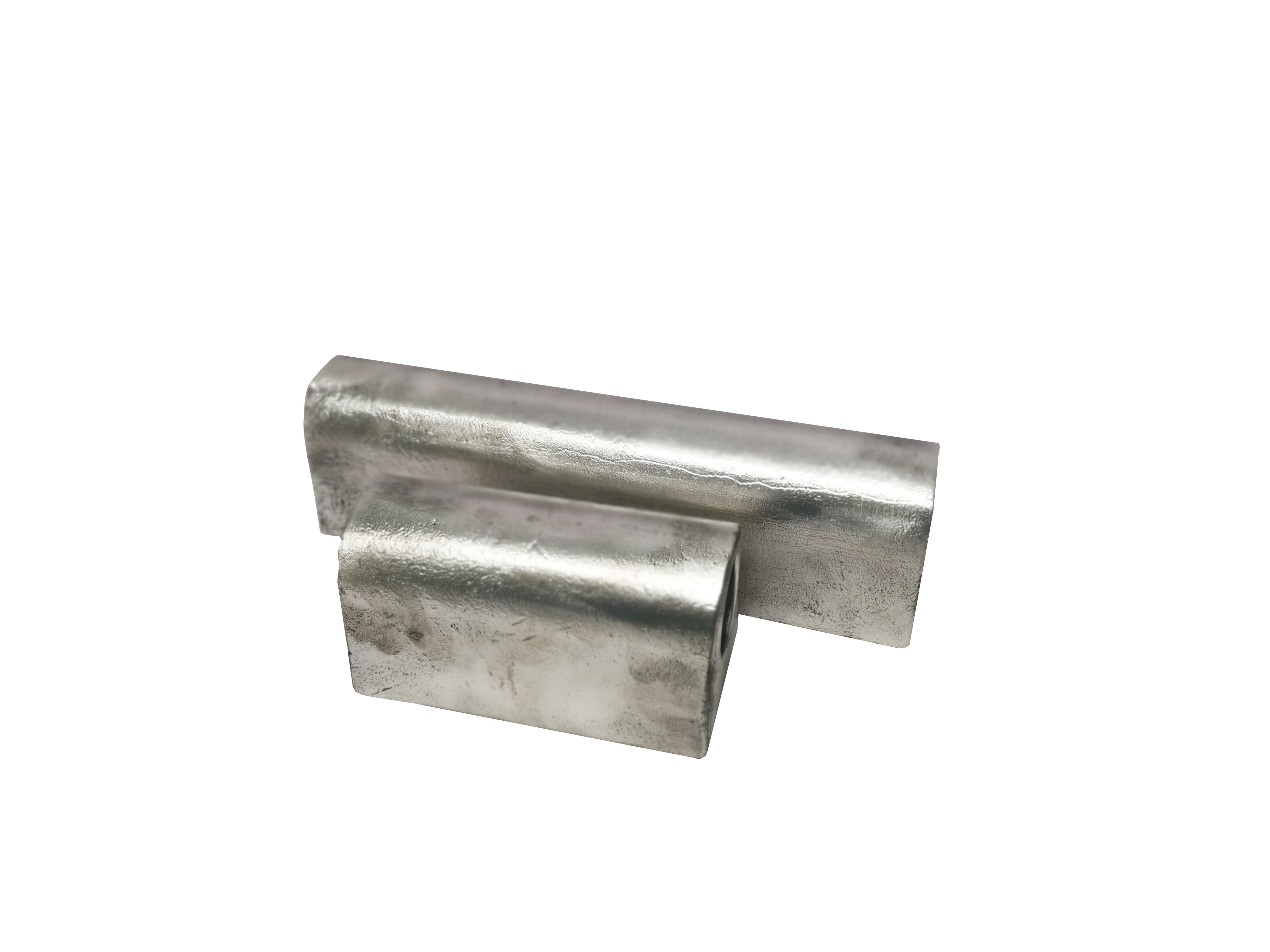

Photos:
