1.4kg Magnesium Sacrificial Anodes Material 3S3 Used In Cathodic Protection

  • 1.4kg Magnesium Sacrificial Anodes Material 3S3 Used In Cathodic Protection
  • 1.4kg Magnesium Sacrificial Anodes Material 3S3 Used In Cathodic Protection
Place of Origin CHINA
Certification USA: G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Magnesium Anodes Material High Purity Magnesium
Application Cathodic Protection Adventage Better Electrochemical Properties
Service OEM / OEM Dimensions Customer's Demands
High Light

Low Cost Magnesium Sacrificial Anodes

,

Sacrificial Anodes Material

,

Magnesium Sacrificial Anodes 3S3
Leave a Message
Product Description

More Negative Standard Potential Magnesium Sacrificial Anodes Widely Used In Cathodic Protection



Introduction:



Because magnesium alloy has a more negative standard potential compared with other metals , they are widely used in the field of cathodic protection.



The purity of the magnesium ingots used in better than that specified in the industrial standards , therefore , our sacrificial magnesium anodes possess excellent electrochemical properties .



Our products have the following specifications:

  • "D" anode
  • "R" Cylindrical anode
  • "S" anode

Specification:



Type N.W.(kg) G.W.(kg) Top Width Bottom Width Length Insert
(mm) (mm) (mm)
3S3 1.36 1.4 76 76 114 Strip
5S3 2.27 2.3 76 76 191 Strip
9S2 4.1 4.2 71.1 50.8 711 Strip
9S3 4.1 4.2 76 76 343 Strip
17S3 7.7 7.8 96.5 76.2 650 Strip
17S4 7.7 7.8 102 102 432 Strip
32S5 14.515 14.62 127 127 533 Strip
48S5 21.77 21.87 127 127 800 Strip



Type Weight(kg) Width(mm) Hight(mm) Length(mm) Insert
9D2-1 4.1 63.5 63.5 669.9 Strip
9D2-2 4.1 69.9 76.2 560 Strip
14D2-1 6.35 63.5 63.5 1054 Strip
14D2-2 6.35 69.9 76.2 850.9 Strip
20D2-1 9.1 63.5 63.5 1505 Strip
20D2-2 9.1 69.9 76.2 1270 Strip
9D3 4.1 88.9 95.25 258.8 Strip
17D3 7.7 88.9 95.25 657.2 Strip
32D5 14.5 139.7 146.05 523.9 Strip
48D5 21.8 139.7 146.05 765.2 Strip



Type N.W.(kg) G.W.(kg) DIA(mm) Length(mm) Length(mm) Insert
1.7v 1.5v Dimension
R36 3.6 3.7 114 202 193 25x2x190
R41 4.1 4.2 114 230 220 25x2x190
R50 5.0 5.1 114 280 268 25x2x195
R77 7.7 7.8 114 431 412 25x2x332
R100 10.0 10.2 114 560 536 25x2x428
R145 14.5 14.7 146 494 492 25x2x428
R227 22.7 22.9 178 520 497 25x2x428
R274(I) 27.3 27.6 178 630 618 25x3x550
R274(II) 27.3 28.2 114 1528 1462 25x3x190



Features:



Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.



Applications:



Magnesium alloy sacrificial anode is an ideal sacrificial anode material, suitable for soil and fresh water media, because of its negative potential, which is lower than that of steel, with extremely high electrochemical performance, uniform anode consumption, long life and large power generation per unit mass. Cathodic protection of metal structures, used in oil pipelines, natural gas pipelines, underground oil tanks, oil platforms, water heaters, etc.



Photos:

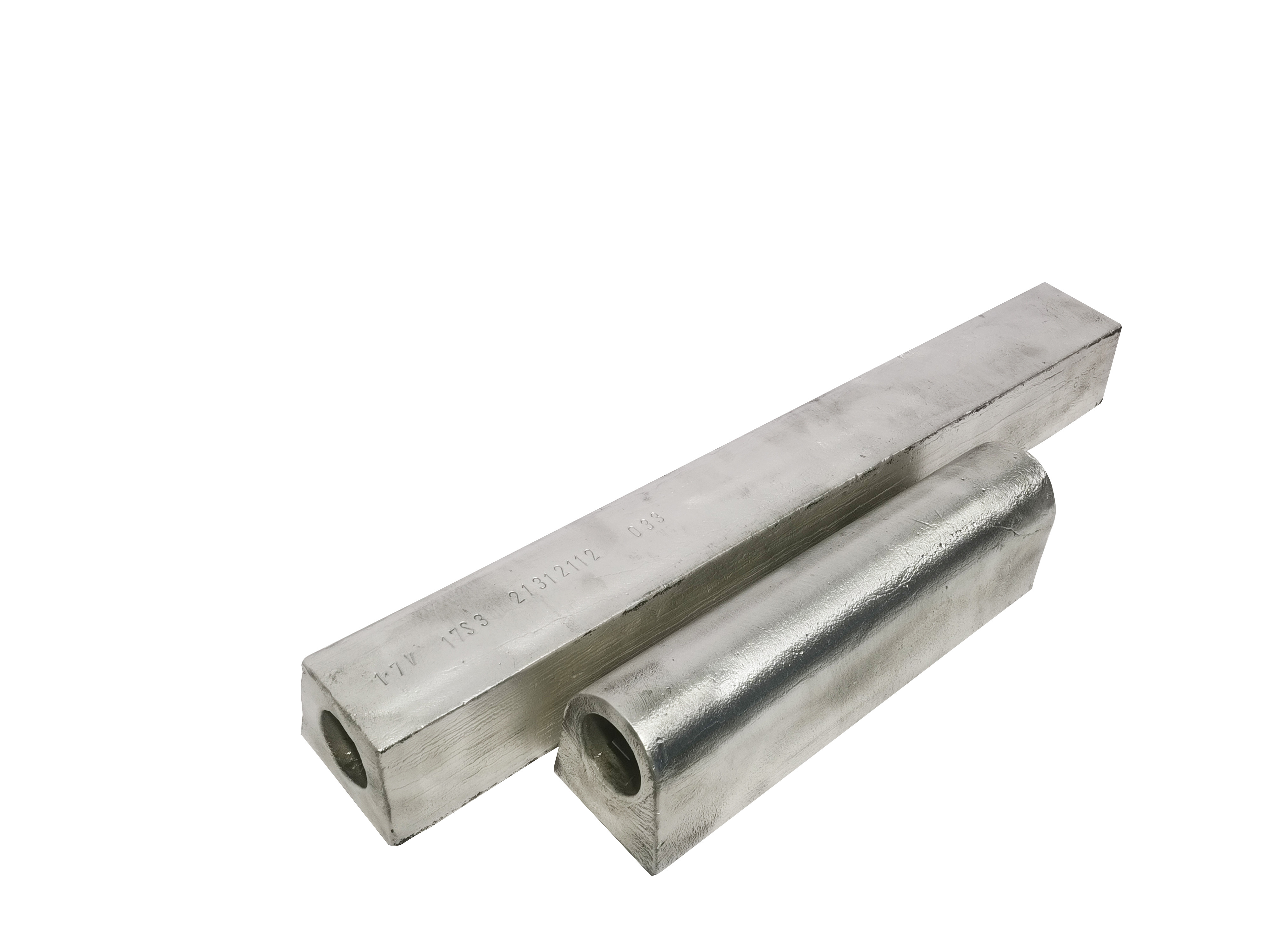

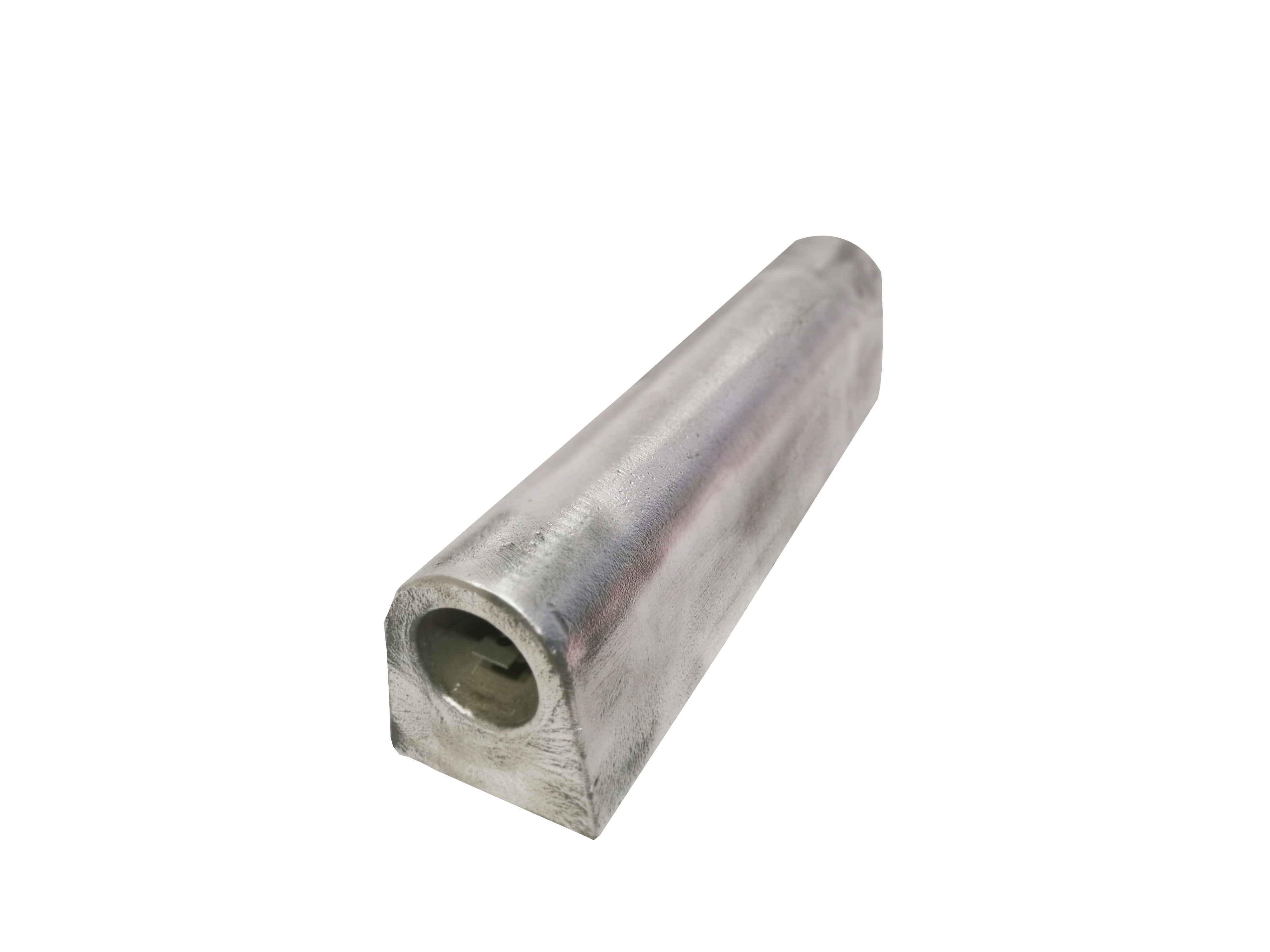

1.4kg Magnesium Sacrificial Anodes Material 3S3 Used In Cathodic Protection 0
