R36 Magnesium Sacrificial Anode Cathodic Protection System Mag G97
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Anodes | Material | High Purity Magnesium |
|---|---|---|---|
| Application | Protection For Petroleum Pipelines | Adventage | Better Electrochemical Properties |
| Service | OEM / OEM | Technical Standard | GB/T 17731-2015 |
| High Light | R36 Magnesium Sacrificial Anode,Sacrificial Anode Cathodic Protection System magG97,Magnesium Sacrificial Anode G97 |
||
Product Description
High Purity Magnesium Sacrificial Anode Cathodic Protection For Metal Anticorrosion
Introduction:
Magnesium anodes are also known as soft water anodes, and they protect steel by sacrificial electrochemistry. This type of galvanic protection is called "sacrificial"; the magnesium rod (anode) corrodes rather than the can (cathode). This principle of electrolytic corrosion control is called "cathodic protection". Because the cathode surface does not rust, the tank is protected.
Parameters:
Our products have the following specifications:
- " D " anode
- " R " Cylindrical anode
- " S " anode
| Type | Weight(kg) | Width(mm) | Hight(mm) | Length(mm) | Insert |
| 9D2-1 | 4.1 | 63.5 | 63.5 | 669.9 | Strip |
| 9D2-2 | 4.1 | 69.9 | 76.2 | 560 | Strip |
| 14D2-1 | 6.35 | 63.5 | 63.5 | 1054 | Strip |
| 14D2-2 | 6.35 | 69.9 | 76.2 | 850.9 | Strip |
| 20D2-1 | 9.1 | 63.5 | 63.5 | 1505 | Strip |
| 20D2-2 | 9.1 | 69.9 | 76.2 | 1270 | Strip |
| 9D3 | 4.1 | 88.9 | 95.25 | 258.8 | Strip |
| 17D3 | 7.7 | 88.9 | 95.25 | 657.2 | Strip |
| 32D5 | 14.5 | 139.7 | 146.05 | 523.9 | Strip |
| 48D5 | 21.8 | 139.7 | 146.05 | 765.2 | Strip |
| Type | N.W.(kg) | G.W.(kg) | DIA(mm) | Length(mm) | Length(mm) | Insert |
| 1.7v | 1.5v | Dimension | ||||
| R36 | 3.6 | 3.7 | 114 | 202 | 193 | 25x2x190 |
| R41 | 4.1 | 4.2 | 114 | 230 | 220 | 25x2x190 |
| R50 | 5.0 | 5.1 | 114 | 280 | 268 | 25x2x195 |
| R77 | 7.7 | 7.8 | 114 | 431 | 412 | 25x2x332 |
| R100 | 10.0 | 10.2 | 114 | 560 | 536 | 25x2x428 |
| R145 | 14.5 | 14.7 | 146 | 494 | 492 | 25x2x428 |
| R227 | 22.7 | 22.9 | 178 | 520 | 497 | 25x2x428 |
| R274(I) | 27.3 | 27.6 | 178 | 630 | 618 | 25x3x550 |
| R274(II) | 27.3 | 28.2 | 114 | 1528 | 1462 | 25x3x190 |
| Type | N.W.(kg) | G.W.(kg) | Top Width | Bottom Width | Length | Insert |
| (mm) | (mm) | (mm) | ||||
| 3S3 | 1.36 | 1.4 | 76 | 76 | 114 | Strip |
| 5S3 | 2.27 | 2.3 | 76 | 76 | 191 | Strip |
| 9S2 | 4.1 | 4.2 | 71.1 | 50.8 | 711 | Strip |
| 9S3 | 4.1 | 4.2 | 76 | 76 | 343 | Strip |
| 17S3 | 7.7 | 7.8 | 96.5 | 76.2 | 650 | Strip |
| 17S4 | 7.7 | 7.8 | 102 | 102 | 432 | Strip |
| 32S5 | 14.515 | 14.62 | 127 | 127 | 533 | Strip |
| 48S5 | 21.77 | 21.87 | 127 | 127 | 800 | Strip |
Features:
Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.
Applications:
Cathodic protection is often used to mitigate corrosion damage to active metal surfaces. It is used worldwide to protect pipelines, water treatment plants, above and submerged storage tanks, ships and hulls, offshore production platforms, concrete structures and rebar in docks, among others.

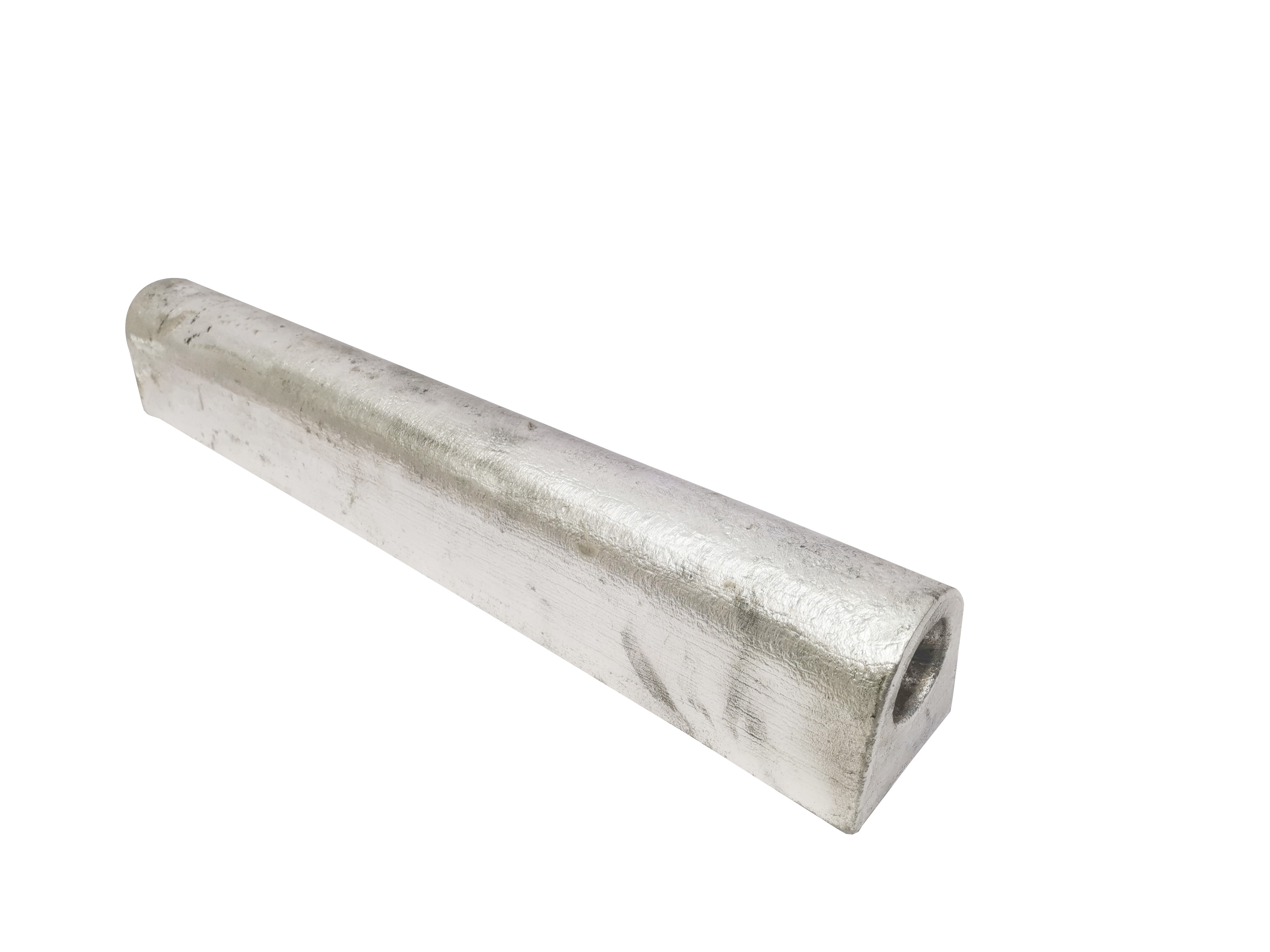

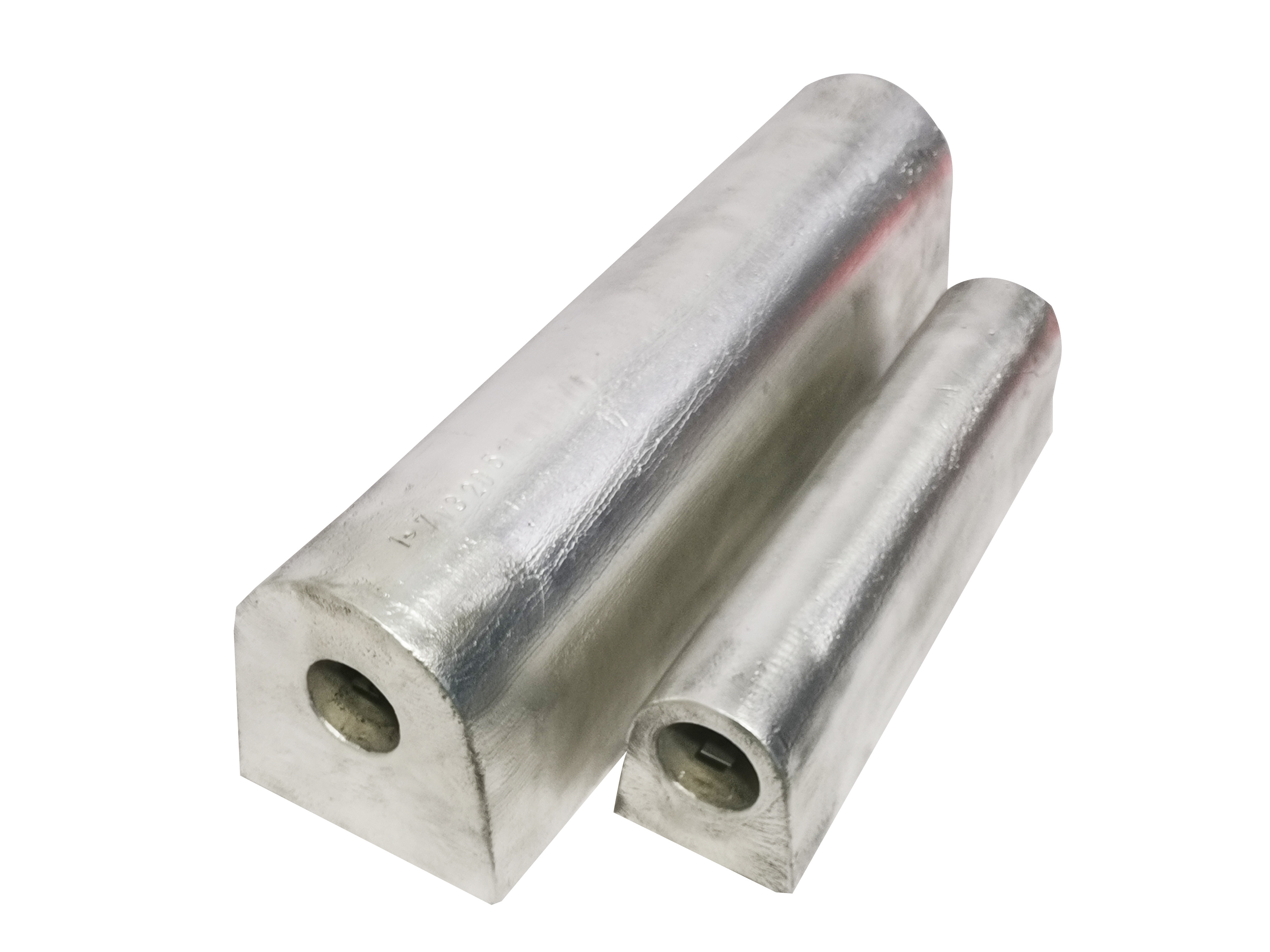

Photos:
