OEM Magnesium Anodes 9.1kg Magnesium Cathodic Protection For Pipelines
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Anodes | Material | High Purity Magnesium |
|---|---|---|---|
| Adventage | Better Electrochemical Properties | Service | OEM / OEM |
| Technical Standard | GB/T 17731-2015 | Application | Move Corrosion Away For Oil Pipe |
| Sample | Available | Product Technology | Casting Magnesium Anode |
| High Light | OEM Magnesium Anodes,Magnesium Anodes 9.1kg,9.1kg Magnesium Cathodic Protection |
||
Product Description
Magnesium Anode D Type Cathodic Protection Move Corrosion Away For Petroleum Pipelines
Introduction:
Magnesium and its alloys (secondary discipline) Magnesium anode has high driving voltage, low current efficiency and high cost. Depending on the shape and the electrode potential (open circuit potential), magnesium anodes can be used in soil or freshwater environments with resistivity between 20 ohm·m and 50 ohm·m.
Specification:
" D " Type
| Type | Weight(kg) | Width(mm) | Hight(mm) | Length(mm) | Insert |
| 9D2-1 | 4.1 | 63.5 | 63.5 | 669.9 | Strip |
| 9D2-2 | 4.1 | 69.9 | 76.2 | 560 | Strip |
| 14D2-1 | 6.35 | 63.5 | 63.5 | 1054 | Strip |
| 14D2-2 | 6.35 | 69.9 | 76.2 | 850.9 | Strip |
| 20D2-1 | 9.1 | 63.5 | 63.5 | 1505 | Strip |
| 20D2-2 | 9.1 | 69.9 | 76.2 | 1270 | Strip |
| 9D3 | 4.1 | 88.9 | 95.25 | 258.8 | Strip |
| 17D3 | 7.7 | 88.9 | 95.25 | 657.2 | Strip |
| 32D5 | 14.5 | 139.7 | 146.05 | 523.9 | Strip |
| 48D5 | 21.8 | 139.7 | 146.05 | 765.2 | Strip |
Chemical composition %
| Alloy | Al (max) | Mn | Si (max) | Cu (max) | Ni (max) | Fe (max) | Other impurity (each) | Total impurities |
| (max) | (max) | |||||||
| Mg- Mn | 0.01 | 0.50-1.30 | 0.05 | 0.005 | 0.001 | 0.03 | 0.05 | 0.3 |
The electrochemical performance
| Open voltage | Closed voltage | Actual capacity | Efficiency |
| 1.70-1.75 | 1.58-1.62 | 1230 min | 50 min |
Features:
Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.
Applications:
Sacrificial anodes are used to protect ship hulls, water heaters, pipes, distribution systems, aboveground storage tanks, underground storage tanks, and oil refineries, etc. The application will depend heavily on the chemical and mineral environment (whether soil or water), so the anodes in this type of cathodic protection system must be regularly inspected and replaced as they reach the point of depletion.

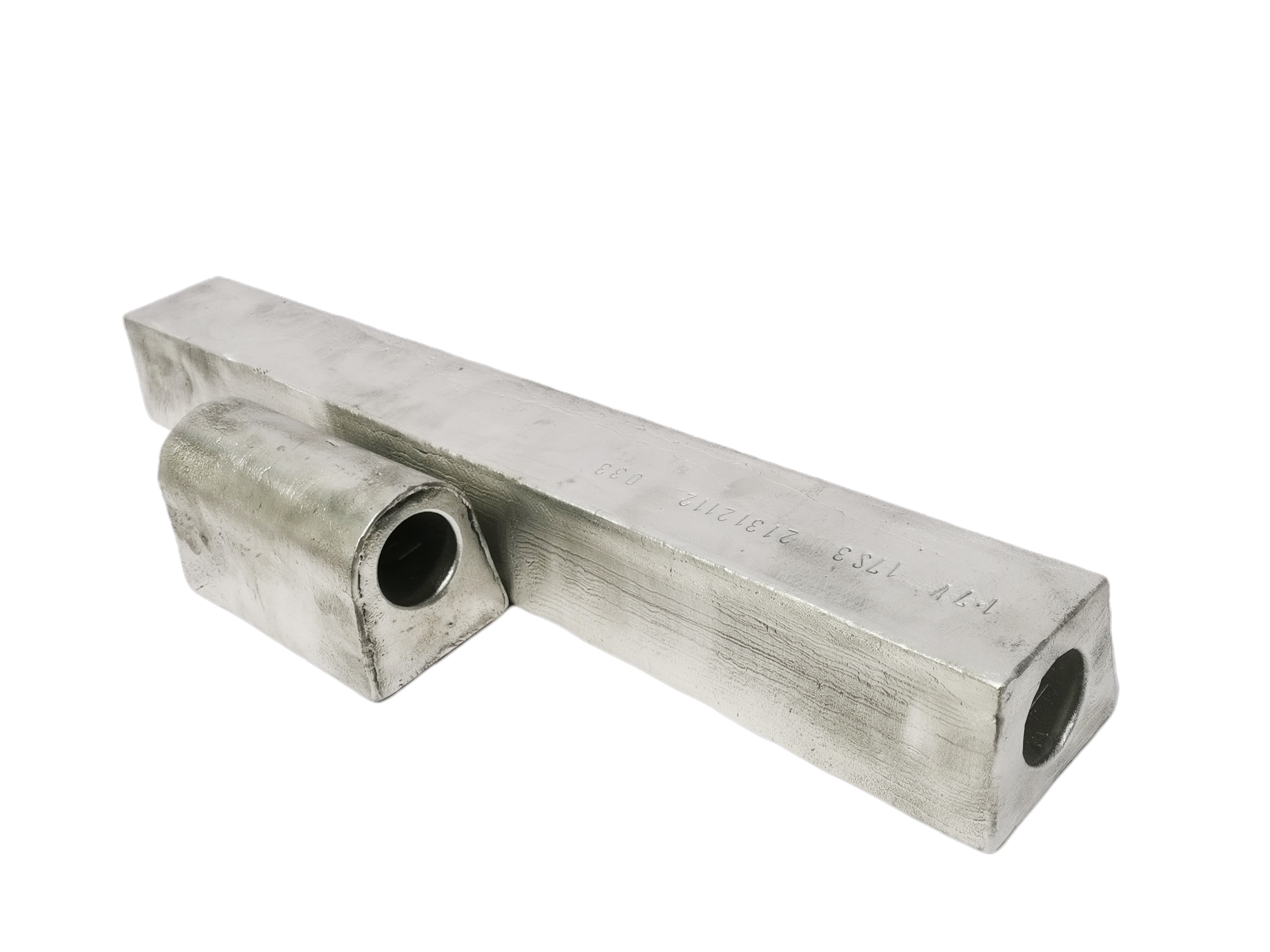

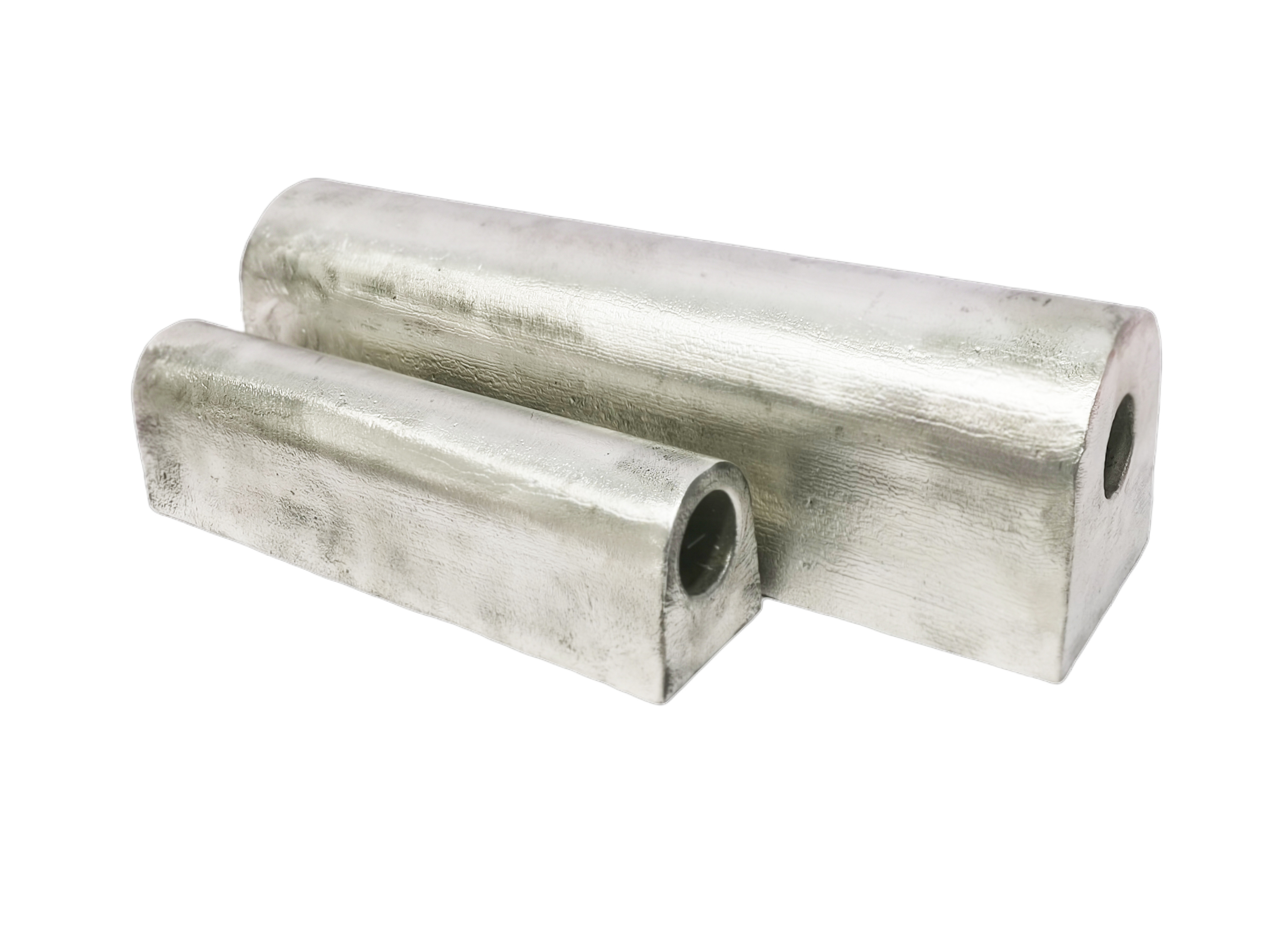

Photos:
FAQ:
Q : Can I add my logo on the boxes/cartons?
A : Yes, OEM and ODM are available from us.
Q : What are the benefits of being a distributor?
A : Special discount Marketing protection.
Q : How does your factory control the quality of your products?
A : 100% self-inspection before packing. Quality is the life of our factory, first, each raw material, comes to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.
Q : Can we mix items in one 20ft container?
A : Yes.
Q : Can I have a visit to your factory before the order?
A : Sure,welcome your visit of factory.
Q : What are the necessary parameters to get an accurate quote?
A : Material chemical composition, anode size, cable, and other accessaries information.
