ASTM Anti Corrosion Anode Water Heater 20D2-2 For Smelter

  • ASTM Anti Corrosion Anode Water Heater 20D2-2 For Smelter
  • ASTM Anti Corrosion Anode Water Heater 20D2-2 For Smelter
Place of Origin CHINA
Certification USA: G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Cathodic Protection Material High Purity Magnesium
Adventage Better Electrochemical Properties Service OEM / OEM
Technical Standard GB/T 17731-2015 Application Prevent Steel From Rusting
High Light

ASTM Anode Anti Corrosion

,

Anti Corrosion Anode Water Heater 20D2-2

,

Anode Anti Corrosion For Smelter
Leave a Message
Product Description

No Need For External DC Power Magnesium Anode Cathodic Protection



Introduction:



Due to the high chemical activity of magnesium alloys, strong self-corrosion, and no dense protective film on the surface, the current efficiency of magnesium anodes is much lower than that of aluminum and zinc anodes, usually around 50%. The outstanding advantages of magnesium anode materials are low density, large theoretical capacitance, negative potential, low polarizability, and high driving voltage (>0.6 V) to steel.



Parameters:



Type Weight(kg) Width(mm) Hight(mm) Length(mm) Insert
9D2-1 4.1 63.5 63.5 669.9 Strip
9D2-2 4.1 69.9 76.2 560 Strip
14D2-1 6.35 63.5 63.5 1054 Strip
14D2-2 6.35 69.9 76.2 850.9 Strip
20D2-1 9.1 63.5 63.5 1505 Strip
20D2-2 9.1 69.9 76.2 1270 Strip
9D3 4.1 88.9 95.25 258.8 Strip
17D3 7.7 88.9 95.25 657.2 Strip
32D5 14.5 139.7 146.05 523.9 Strip
48D5 21.8 139.7 146.05 765.2 Strip



Features:



The magnesium strip sacrificial anode in the magnesium anode material is flat in shape, easy to bend, and the length can be adjusted freely. Construction costs are also relatively low and, importantly, no interference with the external environment occurs.



Applications:



  • Metal anticorrosion
  • Corrosion Protection
  • cathodic protection
  • Oil pipeline
  • Natural Gas Pipeline
  • natural gas storage tank
  • smelter
  • Gas station
  • water heater
  • heat exchanger
  • Evaporator
  • boiler



Photos:

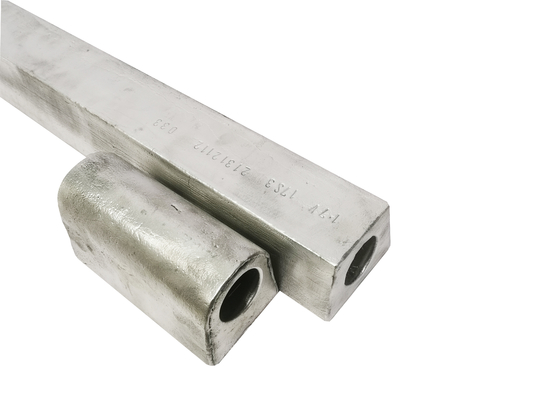

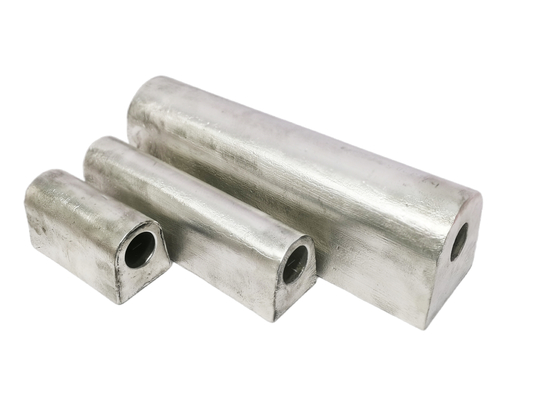

ASTM Anti Corrosion Anode Water Heater 20D2-2 For Smelter 0
