D Type Magnesium Anodes Cathodic Protection Boiler Magnesium Anode Sacrificial

D Type Magnesium Anodes Cathodic Protection To Protect Metal Structures

Introduction:

When metal structures are submerged or buried, oxidation can cause rusting, which is a chemical reaction of the metal with its surroundings. This reaction can lead to loss of metal and ultimately overall structural integrity over time if not addressed until the point of failure.

The sacrificial anode is the main component of the current cathodic protection system, and the voltage activity of the magnesium sacrificial anode is lower than that of the structural alloy that needs protection. In other words, the electron supply that facilitates the dissolution of the primary metal will be transferred or consumed by the "sacrificial" metal.

These types of systems protect metal structures (usually steel) from the harmful effects of rusting by using the physical principle of anodes.

Sacrificial anode cathodic protection technology:

Sacrificial anode cathodic protection technology is to use a metal or alloy whose potential is more negative than the metal to be protected to be electrically connected to the metal to be protected. Metal.

Advantage:

A: The one-time investment cost is low, and there is basically no need to pay maintenance costs during the operation process.

B: The utilization rate of the protection current is high, and there will be no over-protection.
C: No interference effect on adjacent underground metal facilities, suitable for plant area and long-distance pipeline without power supply, as well as small-scale decentralized pipeline protection
D: It has the function of both grounding and protection. E: The construction technology is simple, and no special professional maintenance management is usually required.

Parameters:

Applications:

Magnesium alloy sacrificial anode is an ideal sacrificial anode material, suitable for soil and fresh water media, because of its negative potential, which is lower than that of steel, with extremely high electrochemical performance, uniform anode consumption, long life and large power generation per unit mass. Cathodic protection of metal structures, used in oil pipelines, natural gas pipelines, underground oil tanks, oil platforms, water heaters, etc.

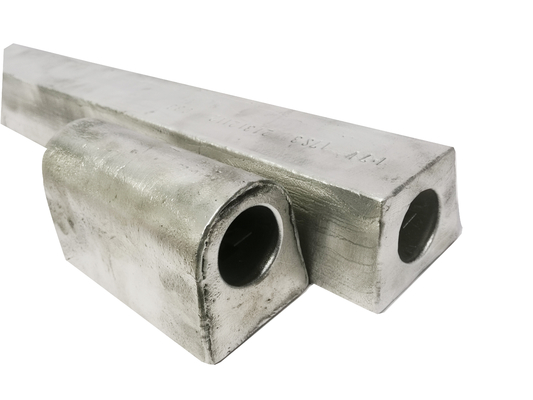

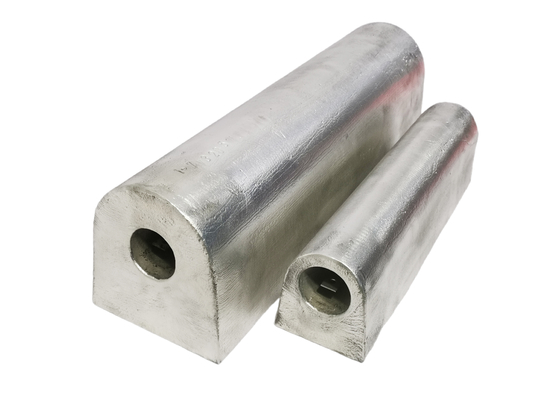

Photos:

FAQ:

Q : Can I add my logo on the boxes/cartons?

A : Yes,OEM and ODM are available from us.

Q : What are the benefits of being a distributor ?

A : Special discount Marketing protection.

Q : How does your factory control the quality of your products?

A : 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.

Q : Can we mix items in one 20ft container?

A : Yes.

Q : Can I have a visit to your factory before the order?

A : Sure,welcome your visit of factory.

Q : What's the necessary parameters to get the accurate quote?

A : Material chemical composition, anode size, cable and other accessaries information.
