Low Impurity High Potential Magnesium Anode Mg GB/T 17731-2015

  • Low Impurity High Potential Magnesium Anode Mg GB/T 17731-2015
  • Low Impurity High Potential Magnesium Anode Mg GB/T 17731-2015
Place of Origin CHINA
Certification USA: G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords High Potential Magnesium Anode Material High Purity Magnesium
Application Cathodic Protection Adventage Better Electrochemical Properties
Service OEM / OEM Technical Standard GB/T 17731-2015
High Light

Low Impurity High Potential Magnesium Anode

,

Anode Mg GB/T 17731-2015

,

Low Impurity Anode Mg
Leave a Message
Product Description

Low Impurity High Potential Magnesium Anode Suitable For High Resistivity Medium

Introduction:

Mg-Mn sacrificial anodes are characterized by large electricity generation per unit mass, high potential, small specific gravity, negative potential, high driving voltage for Fe, and low current efficiency, and are especially suitable for high resistivity media.


Chemical composition %:



Alloy

Al
(max)

Mn
(max)

Si
(max)

Cu
(max)

Ni
(max)

Fe
(max)

Other impurity(each)
(max)

Total Impurities
(max)
Mg-Mn 0.01 0.50-1.30 0.05 0.005 0.001 0.03 0.05 0.30


The electrochemical performance of:


Open voltage
(-V)

Closed voltage
(-V)

Actual capacity
(A.h/kg)

Efficiency
(%)
1.70-1.75 1.58-1.62 1230min 50min



Features:



A: The one-time investment cost is low, and there is basically no need to pay maintenance costs during operation
B: The utilization rate of the protection current is high, and no over-protection will occur
C: No interference to adjacent underground metal facilities, suitable for long-distance pipelines without power supply, and small-scale decentralized pipeline protection
D: It has the functions of grounding and protection
E: The construction technology is simple, and no special professional maintenance management is usually required.



Application:



Applicable to anti-corrosion protection of the oil, gas, water supply and drainage pipelines, as well as the protection of harbor, ship, reservoir, gate and other projects in water.



Photos:

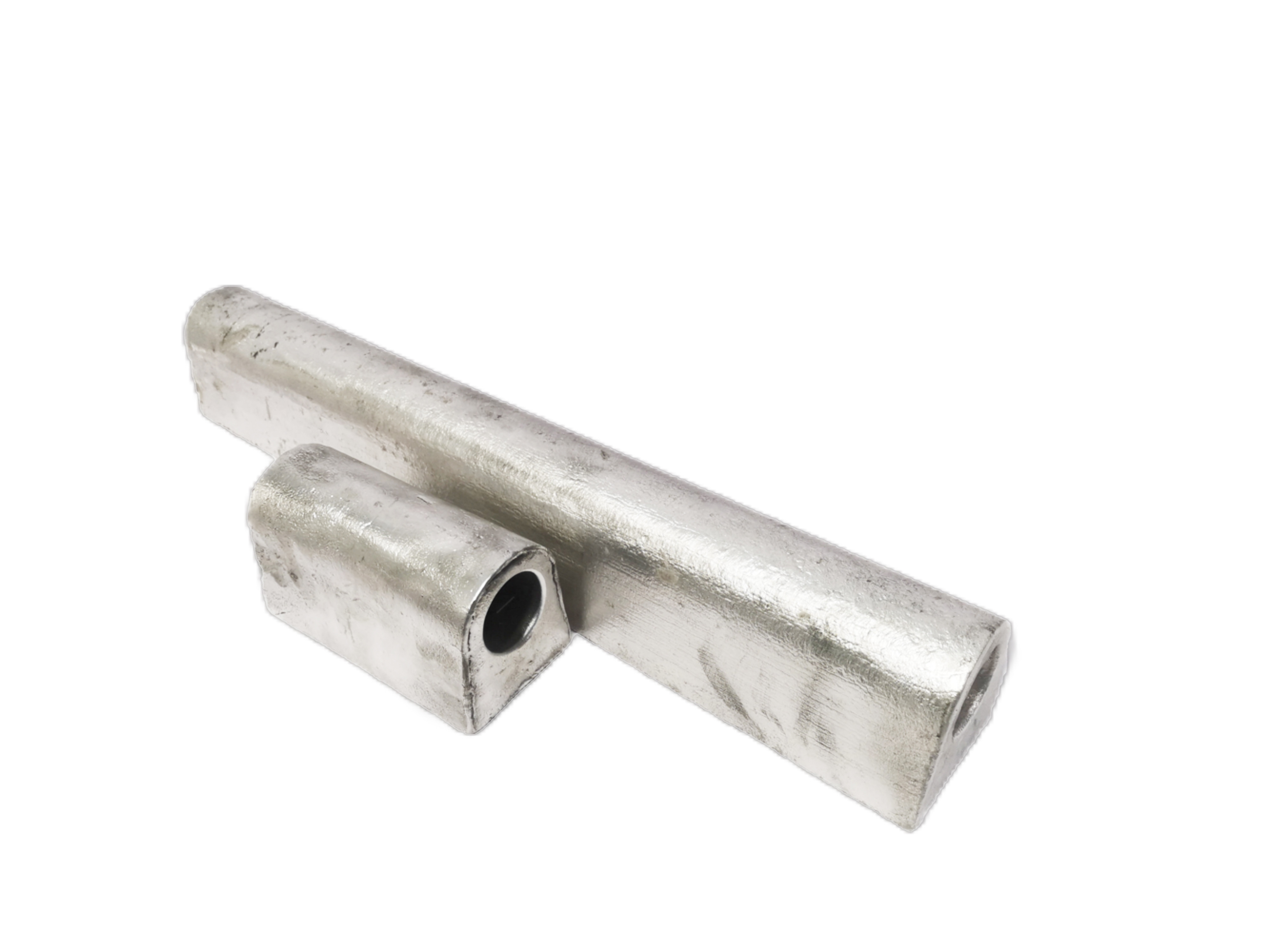

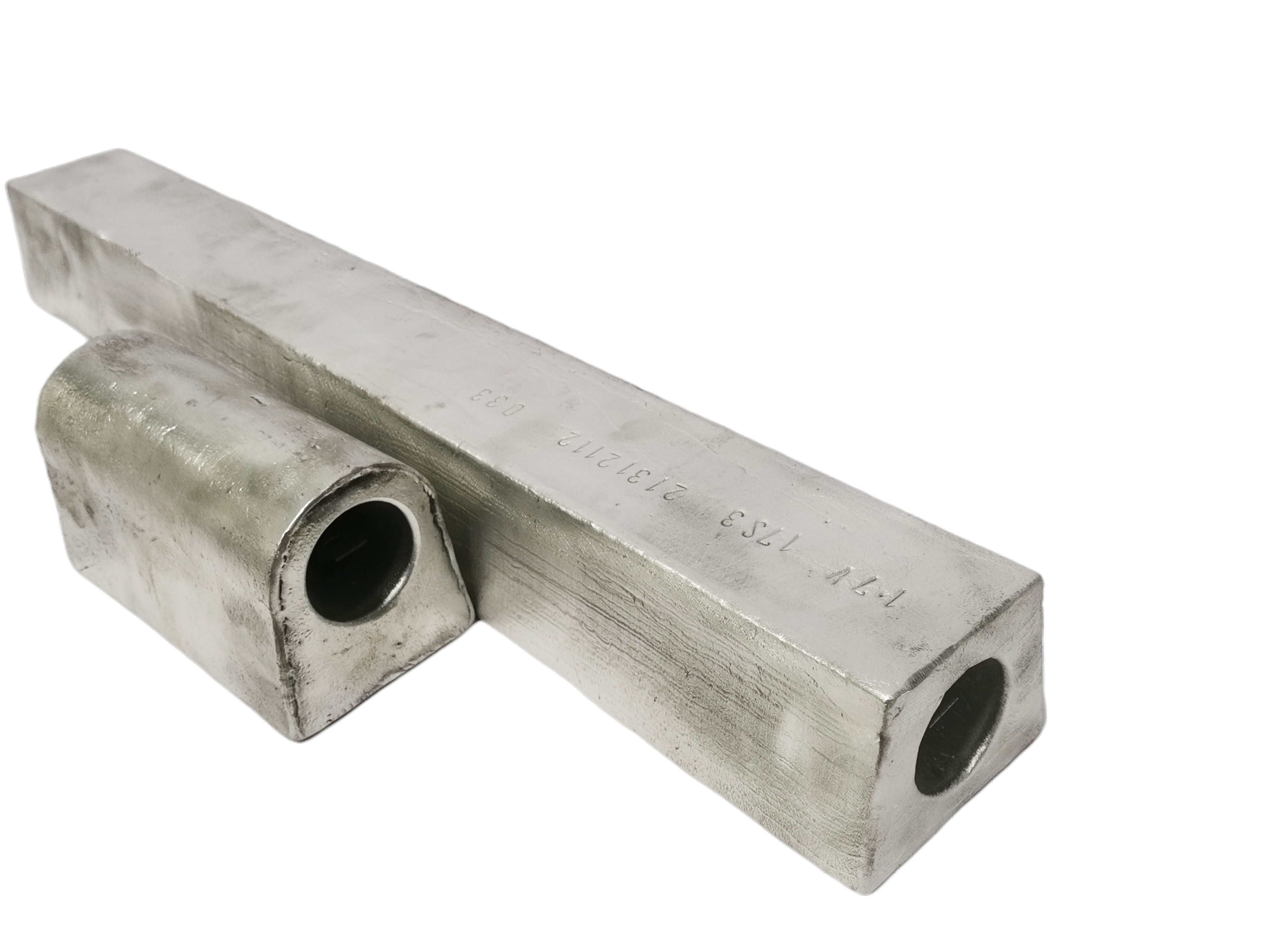

Low Impurity High Potential Magnesium Anode Mg GB/T 17731-2015 0


FAQ:

Q : Can I add my logo on the boxes/cartons?
A : Yes,OEM and ODM are available from us.

Q : What are the benefits of being a distributor ?
A : Special discount Marketing protection.

Q : How does your factory control the quality of your products?
A : 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.

Q : Can we mix items in one 20ft container?
A : Yes.

Q : Can I have a visit to your factory before the order?
A : Sure,welcome your visit of factory.

Q : What's the necessary parameters to get the accurate quote?
A : Material chemical composition, anode size, cable and other accessaries information.
