17D3 Magnesium Anodes In Salt Water 7.7kg 32 Lb Magnesium Anode

  • 17D3 Magnesium Anodes In Salt Water 7.7kg 32 Lb Magnesium Anode
  • 17D3 Magnesium Anodes In Salt Water 7.7kg 32 Lb Magnesium Anode
Place of Origin CHINA
Certification USA: G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords High Potential Magnesium Anode Material High Purity Magnesium
Application Cathodic Protection Adventage Better Electrochemical Properties
Service OEM / OEM Technical Standard GB/T 17731-2015
High Light

17D3 Magnesium Anodes In Salt Water

,

Magnesium Anodes In Salt Water 7.7kg

,

32 Lb Magnesium Anode
Leave a Message
Product Description

High Potential Magnesium Anode Current Efficiency Higher Than 50% For Cathodic Protection

Introduction:

The addition of impurity elements will greatly reduce the corrosion resistance of magnesium alloys. Among them, Fe, Ni, Cu and other elements reduce the corrosion resistance of magnesium alloys particularly seriously. Therefore, reducing impurity elements is the preferred method to improve its performance. For the Mg-Mn series magnesium alloy sacrificial anode, the Mn element in the alloy can make the second phase distribution uniform, promote grain refinement, and improve its electrochemical performance. It has the characteristics of relatively negative potential, high driving voltage to Fe, and low current efficiency, and is especially suitable for high resistivity medium.

Chemical composition %:



Alloy

Al
(max)

Mn
(max)

Si
(max)

Cu
(max)

Ni
(max)

Fe
(max)

Other impurity(each)
(max)

Total Impurities
(max)
Mg-Mn 0.01 0.50-1.30 0.05 0.005 0.001 0.03 0.05 0.30


The electrochemical performance of:


Open voltage
(-V)

Closed voltage
(-V)

Actual capacity
(A.h/kg)

Efficiency
(%)
1.70-1.75 1.58-1.62 1230min 50min



Specification:



Type Weight(kg) Width(mm) Hight(mm) Length(mm) Insert
9D2-1 4.1 63.5 63.5 669.9 Strip
9D2-2 4.1 69.9 76.2 560 Strip
14D2-1 6.35 63.5 63.5 1054 Strip
14D2-2 6.35 69.9 76.2 850.9 Strip
20D2-1 9.1 63.5 63.5 1505 Strip
20D2-2 9.1 69.9 76.2 1270 Strip
9D3 4.1 88.9 95.25 258.8 Strip
17D3 7.7 88.9 95.25 657.2 Strip
32D5 14.5 139.7 146.05 523.9 Strip
48D5 21.8 139.7 146.05 765.2 Strip



Features:



The main characteristics of high-potential magnesium alloy sacrificial anodes are large electricity per unit mass, high potential, small specific gravity, negative potential, high driving voltage to Fe, low current efficiency, etc., especially suitable for high resistivity media. When using magnesium alloy sacrificial anode, care should be taken to avoid collision with steel structure. American standard ASTM8431993 (2003) and Chinese standard GB/T177312004 both require the current efficiency of high-potential magnesium alloy sacrificial anodes to be higher than 50% and the potential higher than 1.77 V.



Application:



Applicable to anti-corrosion protection of the oil, gas, water supply and drainage pipelines, as well as the protection of harbor, ship, reservoir, gate and other projects in water.



Photos:

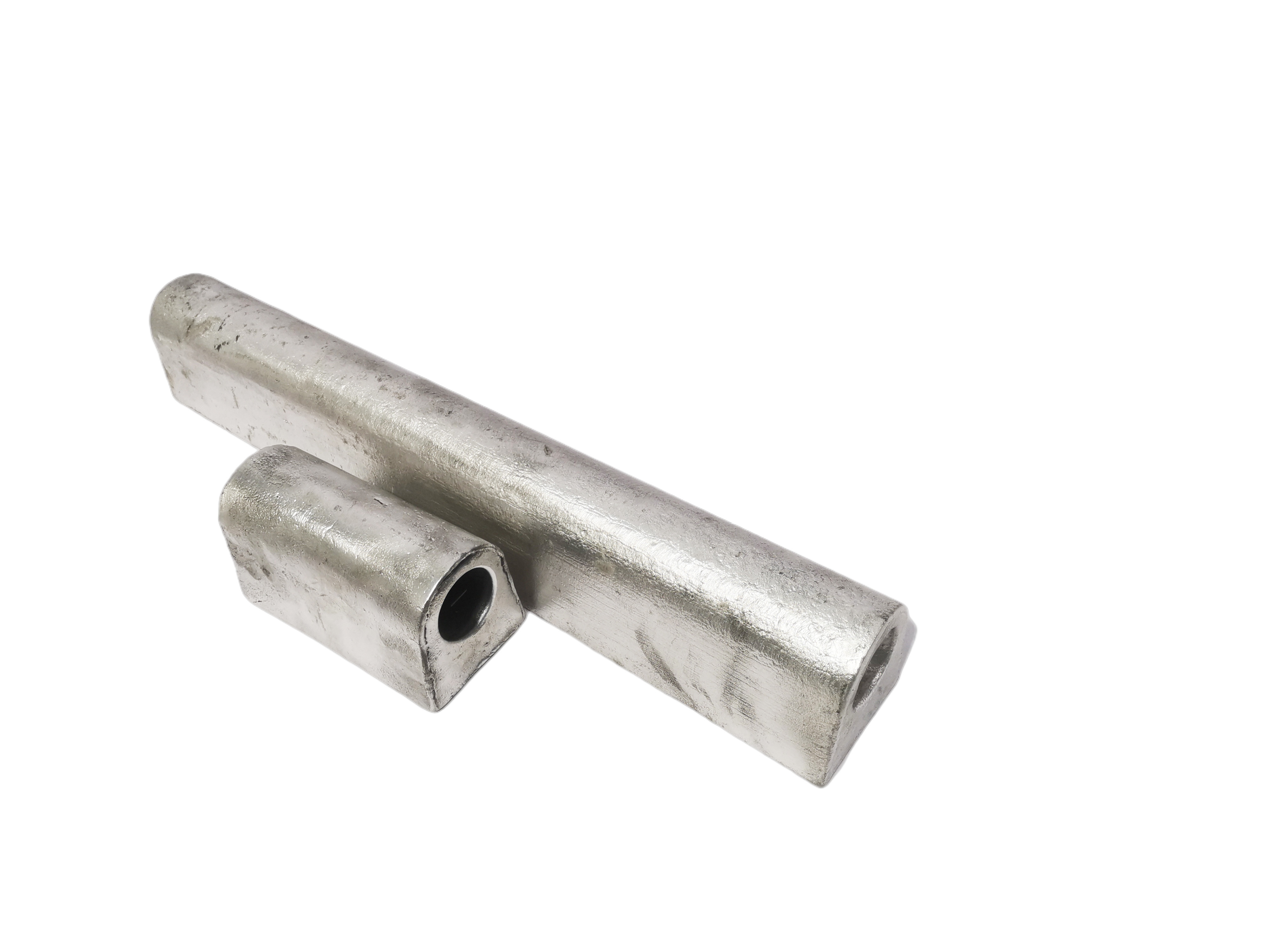

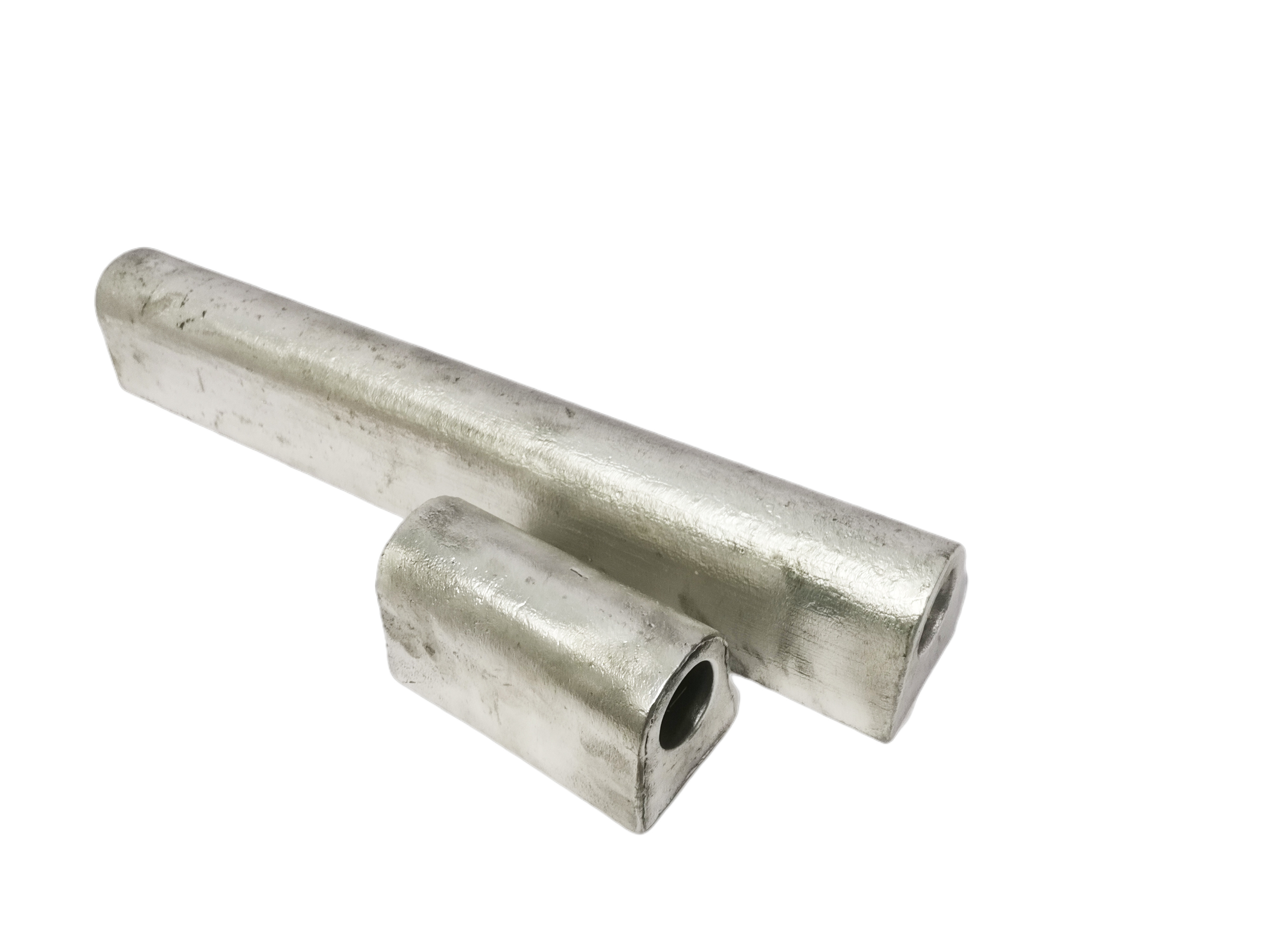

17D3 Magnesium Anodes In Salt Water 7.7kg 32 Lb Magnesium Anode 0
