D Type Sacrificial Anode Cathodic Protection Magnesium 9D2-2 For Pipelines
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | High Potential Magnesium Anode | Material | High Purity Magnesium |
|---|---|---|---|
| Application | Cathodic Protection | Adventage | Better Electrochemical Properties |
| Service | OEM / OEM | Technical Standard | GB/T 17731-2015 |
| High Light | D Type Sacrificial Anode Cathodic Protection,Magnesium Cathodic Protection 9D2-2,Sacrificial Anode Cathodic Protection 9D2-2 |
||
Product Description
D Type High Potential Magnesium Anode Widely Used In The Protection Of Metal Components
Introduction:
The main characteristics of high-potential magnesium alloy sacrificial anodes are large electricity per unit mass, high potential, small specific gravity, relatively negative potential, high driving voltage to Fe, low current efficiency, etc., especially suitable for high resistivity media. Both the American standard ASTM8431993 (2003) and the Chinese standard GB/T177312004 require that the current efficiency of high-potential magnesium alloy sacrificial anodes be higher than 50% and the potential higher than 1.77 V.
Chemical composition %:
| Alloy |
Al |
Mn |
Si |
Cu |
Ni |
Fe |
Other impurity(each) |
Total Impurities |
| Mg-Mn | 0.01 | 0.50-1.30 | 0.05 | 0.005 | 0.001 | 0.03 | 0.05 | 0.30 |
The electrochemical performance of:
|
Open voltage |
Closed voltage |
Actual capacity |
Efficiency |
| 1.70-1.75 | 1.58-1.62 | 1230min | 50min |
Specification:
| Type | Weight(kg) | Width(mm) | Hight(mm) | Length(mm) | Insert |
| 9D2-1 | 4.1 | 63.5 | 63.5 | 669.9 | Strip |
| 9D2-2 | 4.1 | 69.9 | 76.2 | 560 | Strip |
| 14D2-1 | 6.35 | 63.5 | 63.5 | 1054 | Strip |
| 14D2-2 | 6.35 | 69.9 | 76.2 | 850.9 | Strip |
| 20D2-1 | 9.1 | 63.5 | 63.5 | 1505 | Strip |
| 20D2-2 | 9.1 | 69.9 | 76.2 | 1270 | Strip |
| 9D3 | 4.1 | 88.9 | 95.25 | 258.8 | Strip |
| 17D3 | 7.7 | 88.9 | 95.25 | 657.2 | Strip |
| 32D5 | 14.5 | 139.7 | 146.05 | 523.9 | Strip |
| 48D5 | 21.8 | 139.7 | 146.05 | 765.2 | Strip |
Advantage:
A: The one-time investment cost is low, and there is basically no need to pay maintenance costs during operation
B: The utilization rate of the protection current is high, and no over-protection will occur
C: No interference effect on adjacent underground metal facilities, suitable for plant area and long-distance pipeline without power supply, as well as small-scale decentralized pipeline protection
D: It has the function of both grounding and protection
E: The construction technology is simple and usually does not require special professional maintenance and management.
Application:
Magnesium anode is the use of magnesium negative potential, its potential is lower than steel, can be used to protect onshore pipelines and other buried structures, such as oil pipelines, natural gas pipelines, underground oil tanks, oil platforms, water heaters, and for the protection of fresh water ships in the environment.

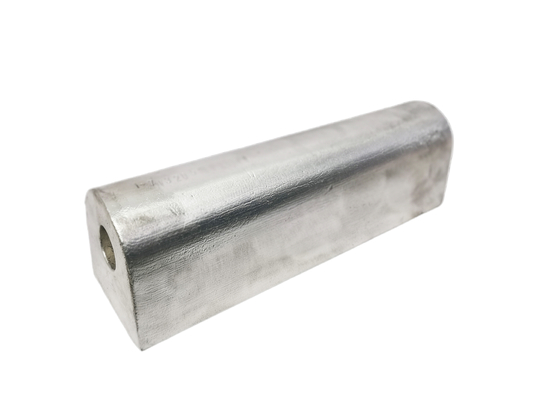

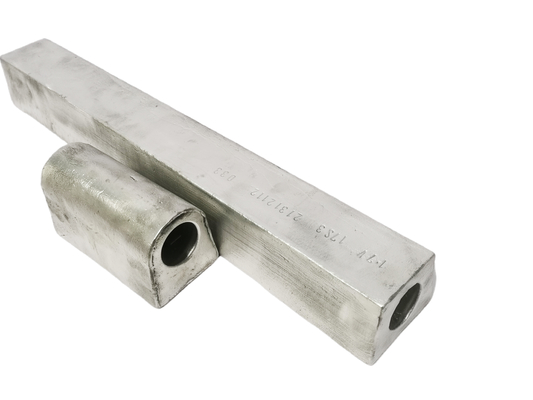

Photos:
