G97 Magnesium Rod For Solar Water Heater Anode Rod Replacement Az80
| Place of Origin | CHINA |
|---|---|
| Certification | USA : G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Rod | Material | Magnesium Alloy |
|---|---|---|---|
| Technique | Casting Or Extruded Magnesium Rod | Color | Silver Grey |
| Warranty | 1 Year | Application | Water Heater |
| High Light | G97 Magnesium Rod For Solar Water Heater,water heater cathode rod,Heater Anode Rod Replacement |
||
Product Description
Silver Grey High-Quality Water Heater Magnesium Anode With High Current Efficiency
Introduction:
In the inner tank of the water heater, it and the inner tank (the main component is iron) are in contact with water at the same time, and a primary battery is formed due to chemical principles. Since the water in the inner tank is not pure water, it always contains various impurities and is corrosive to a certain extent. When the water temperature exceeds 40 degrees, a scale will occur. If there is no anode magnesium rod, the liner will be corroded.
Specification:
|
Product Type: |
Magnesium rod |
|
Material: |
Magnesium alloy AZ31 |
|
Differnet kinds: |
Casting rod,Extruded rod,Rod with steel cap,Flexible anode rod |
|
Chemical composition: |
Al:2.5-3.5%, Zn:0.6-1.4%,Mn:0.2-1.0%,Fe:0.005%max,, Cu:0.01%max,Ni:0.001%max,Si:0.1%max, Other:0.3%max,Mg:Balance |
|
Propertices: |
Open-circuit voltage: 1.5-1.55V Close-circuit voltage:1.45-1.50V Actual capacitance: 1.105A.h/g Current efficiency:50%min |
|
Steel cap: |
stainless steel,galvannized ,in black,coppper,etc. |
|
Application: |
It mainly used in water heater,boiler,heat exchanger,water tank,etc. It can soften water,de-dirt residual,ensure water sanitation,water scale inhibition,protect inner tank,extend service life,etc. |
|
Features: |
The extruded anode rod can be with or without steel core,can be with steel cap or only with screw; the size of cap/screw can be customilized by your specific requirements. Mainly different kinds of steel cap and screw available. |
Effect:
Magnesium rod, also known as anode rod, its main component is magnesium. In the inner tank of the water heater, it and the inner tank (the main component is iron) are in contact with water at the same time, and a primary battery is formed due to chemical principles. Since the water in the inner tank is not pure water, it always contains various impurities and is corrosive to a certain extent. When the water temperature exceeds 40 degrees, scale will occur. If there is no anode magnesium rod, the liner will be corroded.
Regular replacement:
Because the magnesium rod is in the water for a long time and used for a long time, the magnesium rod is continuously dissolved in the water, and finally becomes a sponge rod, and the weight is reduced. When the weight is reduced to one-third of the original weight, the magnesium rod should be replaced. Magnesium rods can generally be used for about a year. They are wearable parts and have no effect on the use of the electric water heater, but regular maintenance of the electric water heater is also a must.

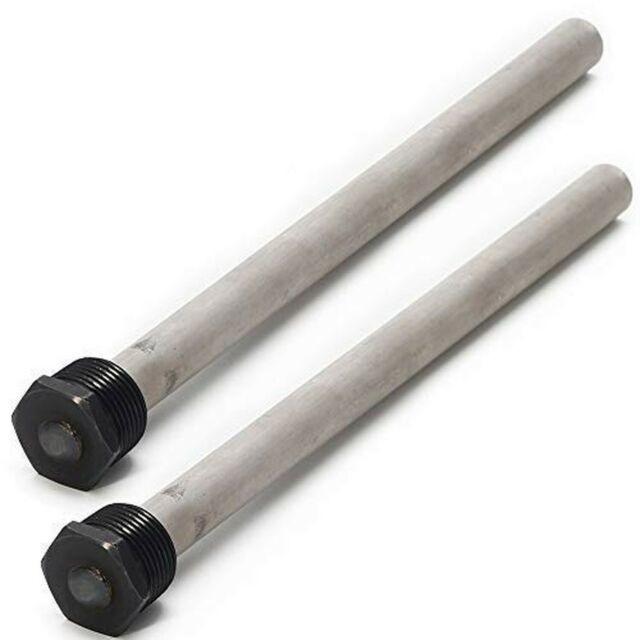

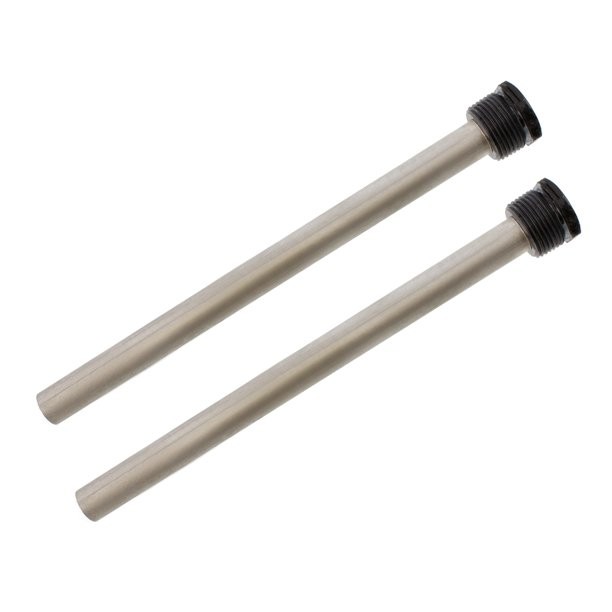

Photos:
