Az80 Water Heater Magnesium Anode G97 Hot Water Tank Anode
| Place of Origin | CHINA |
|---|---|
| Certification | USA : G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Rod | Material | Magnesium Alloy |
|---|---|---|---|
| Technique | Casting Or Extruded Magnesium Rod | Color | Silver Grey |
| Warranty | 1 Year | Application | Water Heater |
| High Light | Az80 Water Heater Magnesium Anode,magnesium anode rod for hot water heater,G97 Hot Water Tank Anode |
||
Product Description
High Current Efficiency Water Heater Magnesium Anode To Protect The Inner Tank Of The Water Heater
Introduction:
Magnesium rod is the common name of magnesium anode, also known as anode magnesium rod, which is used to prevent corrosion of metal liner and soften water heater water quality. That is, the magnesium rod is used as the anode, the metal lining is the cathode, and the water in the liner is the dielectric to form a primary battery.
- Cathodic protection. It can effectively prevent the corrosion of the inner tank and prolong the life of the water heater.
- The function of softening water.
Specification:
|
Product Type: |
Magnesium rod |
|
Material: |
Magnesium alloy AZ31 |
|
Differnet kinds: |
Casting rod,Extruded rod,Rod with steel cap,Flexible anode rod |
|
Chemical composition: |
Al:2.5-3.5%, Zn:0.6-1.4%,Mn:0.2-1.0%,Fe:0.005%max,, Cu:0.01%max,Ni:0.001%max,Si:0.1%max, Other:0.3%max,Mg:Balance |
|
Propertices: |
Open-circuit voltage: 1.5-1.55V Close-circuit voltage:1.45-1.50V Actual capacitance: 1.105A.h/g Current efficiency:50%min |
|
Steel cap: |
stainless steel,galvannized ,in black,coppper,etc. |
|
Application: |
It mainly used in water heater,boiler,heat exchanger,water tank,etc. It can soften water,de-dirt residual,ensure water sanitation,water scale inhibition,protect inner tank,extend service life,etc. |
|
Features: |
The extruded anode rod can be with or without steel core,can be with steel cap or only with screw;the size of cap/screw can be customilized by your specific requirements. Mainly different kinds of steel cap and screw available. |
Effect:
It has the function of insulating and preventing corrosion, because the inner tank of the water heater stores water for a long time, and after the water is heated, water alkali and scale will be generated, and then attached to the inner tank, which will reduce the heating efficiency and shorten the service life. The rod is also called magnesium anode, which can release magnesium ions, which can effectively alleviate the production of water, alkali and scale, thus preventing it from corroding the liner.
Advantage:
From raw material-semi-continuous magnesium alloy casting-extrusion-forming, the factory's independent production is completed, the internal composition is controllable, the appearance quality is strictly controlled at every level, and the branches are qualified. In line with national GB/T17731 and international ASTM B843, ASTM G97 standards. Extruded and cast anode rods are suitable for various tanks.

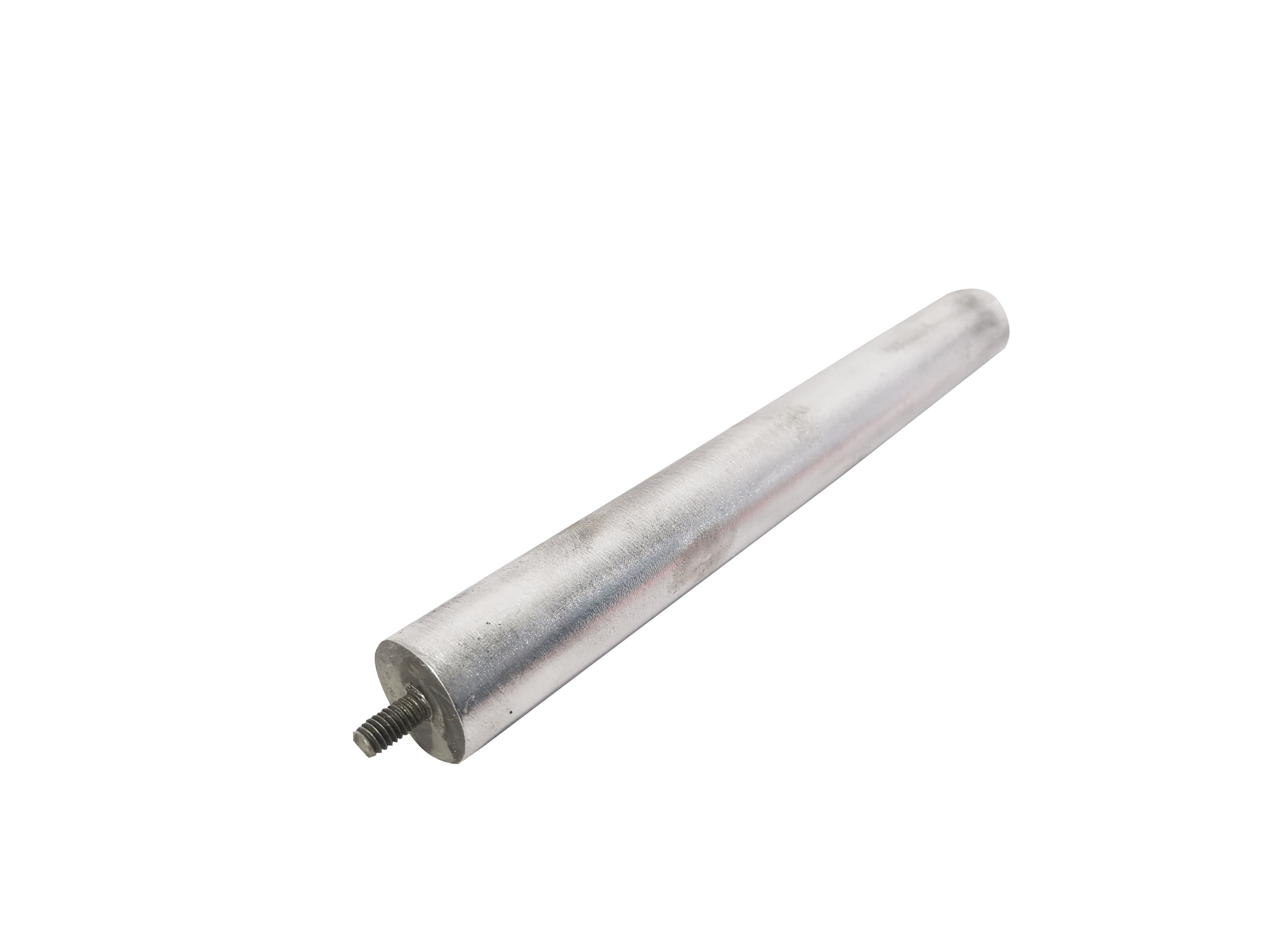

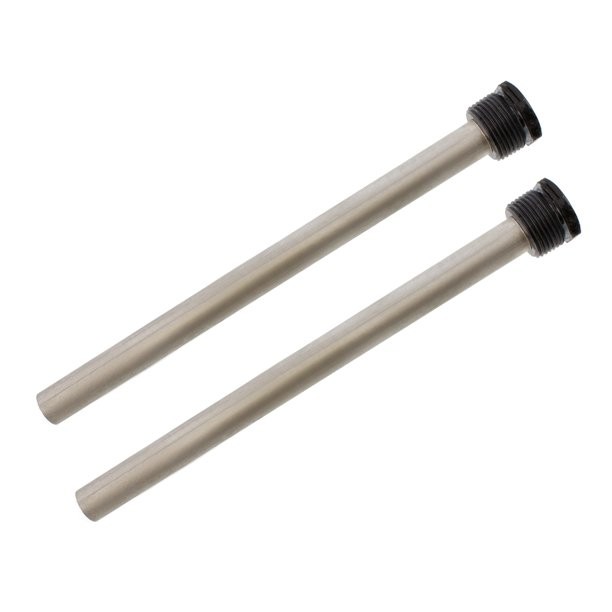

Photos:
