OEM Magnesium Sacrificial Anodes 17D3 Sacrificial Galvanic
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Sacrificial Anodes | Material | High Purity Magnesium |
|---|---|---|---|
| Application | Cathodic Protection | Adventage | Better Electrochemical Properties |
| Service | OEM / OEM | Technical Standard | GB/T 17731-2015 |
| High Light | OEM Magnesium Sacrificial Anodes,Magnesium Sacrificial Anodes 17D3,17D3 Sacrificial Galvanic Anodes |
||
Product Description
Good Electrochemical Performance Magnesium Sacrificial Anode For Cathodic Protection
Introduction:
The potential of the high-potential magnesium anode is -1.75V CSE and the driving voltage is 0.85V; the potential of the low-potential magnesium anode is -1.55V CSE and the driving voltage is 0.7V. The use temperature can reach 100℃. When the remaining amount of the sacrificial anode is 15% of the original weight, the anode is considered to be ineffective, so the usage rate of the anode is generally 85%.
Features:
Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.
Specification:
| Type | Weight(kg) | Width(mm) | Hight(mm) | Length(mm) | Insert |
| 9D2-1 | 4.1 | 63.5 | 63.5 | 669.9 | Strip |
| 9D2-2 | 4.1 | 69.9 | 76.2 | 560 | Strip |
| 14D2-1 | 6.35 | 63.5 | 63.5 | 1054 | Strip |
| 14D2-2 | 6.35 | 69.9 | 76.2 | 850.9 | Strip |
| 20D2-1 | 9.1 | 63.5 | 63.5 | 1505 | Strip |
| 20D2-2 | 9.1 | 69.9 | 76.2 | 1270 | Strip |
| 9D3 | 4.1 | 88.9 | 95.25 | 258.8 | Strip |
| 17D3 | 7.7 | 88.9 | 95.25 | 657.2 | Strip |
| 32D5 | 14.5 | 139.7 | 146.05 | 523.9 | Strip |
| 48D5 | 21.8 | 139.7 | 146.05 | 765.2 | Strip |
Applications:
Magnesium anodes are effective and affordable in fighting corrosion. For more than two decades, magnesium anodes have played a key role in protecting steel structures in salt and fresh water, including:
- Hull and various other boats
- Water tank
- Piers, piers and piers
- pipeline
- heat exchanger
- travel screen

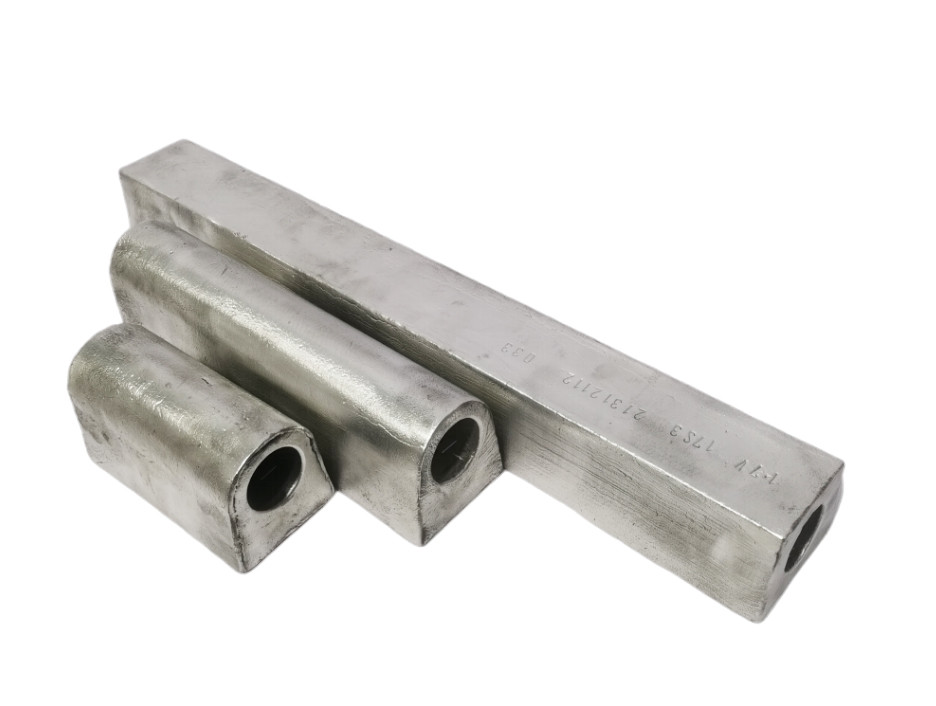

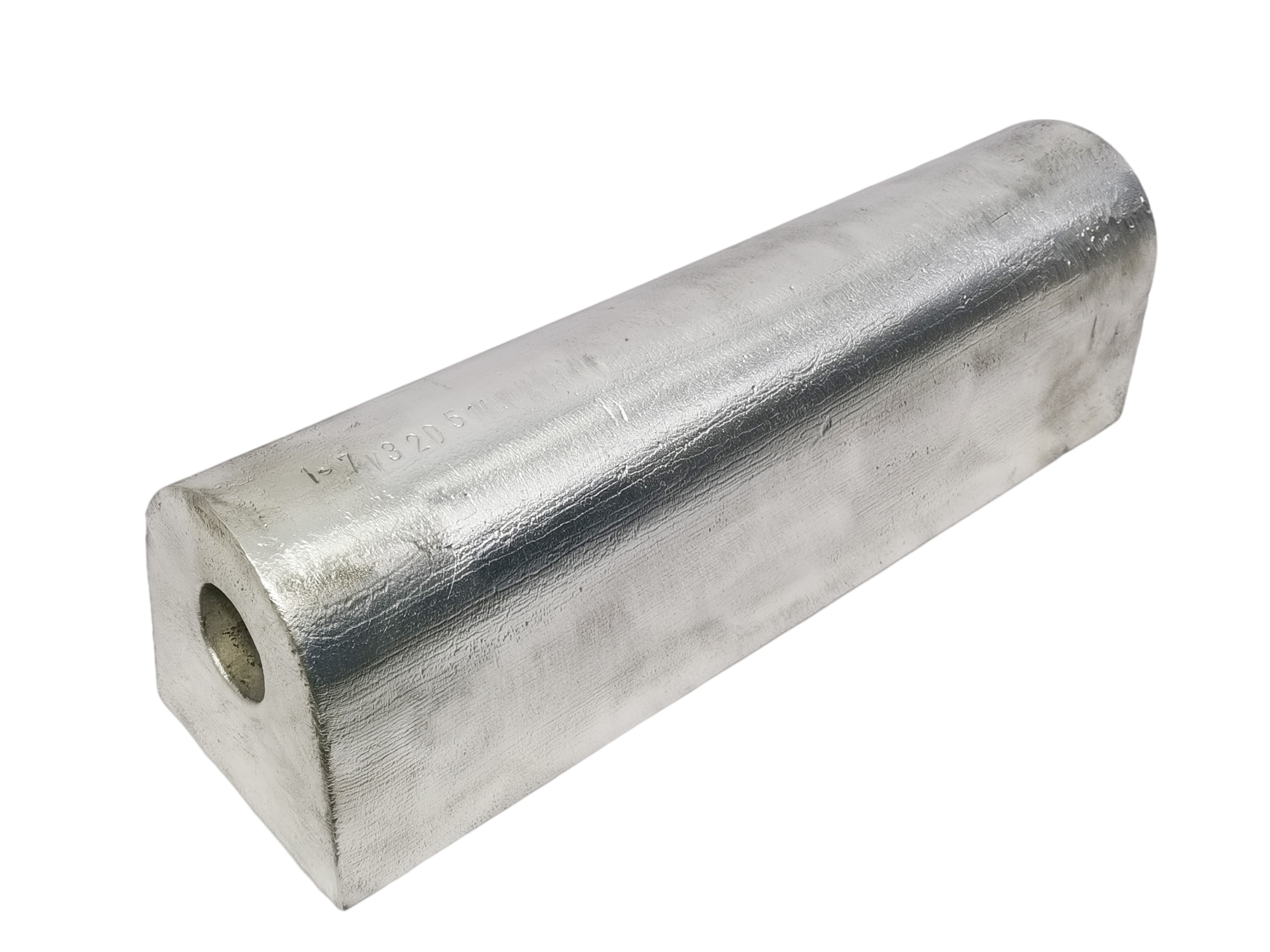

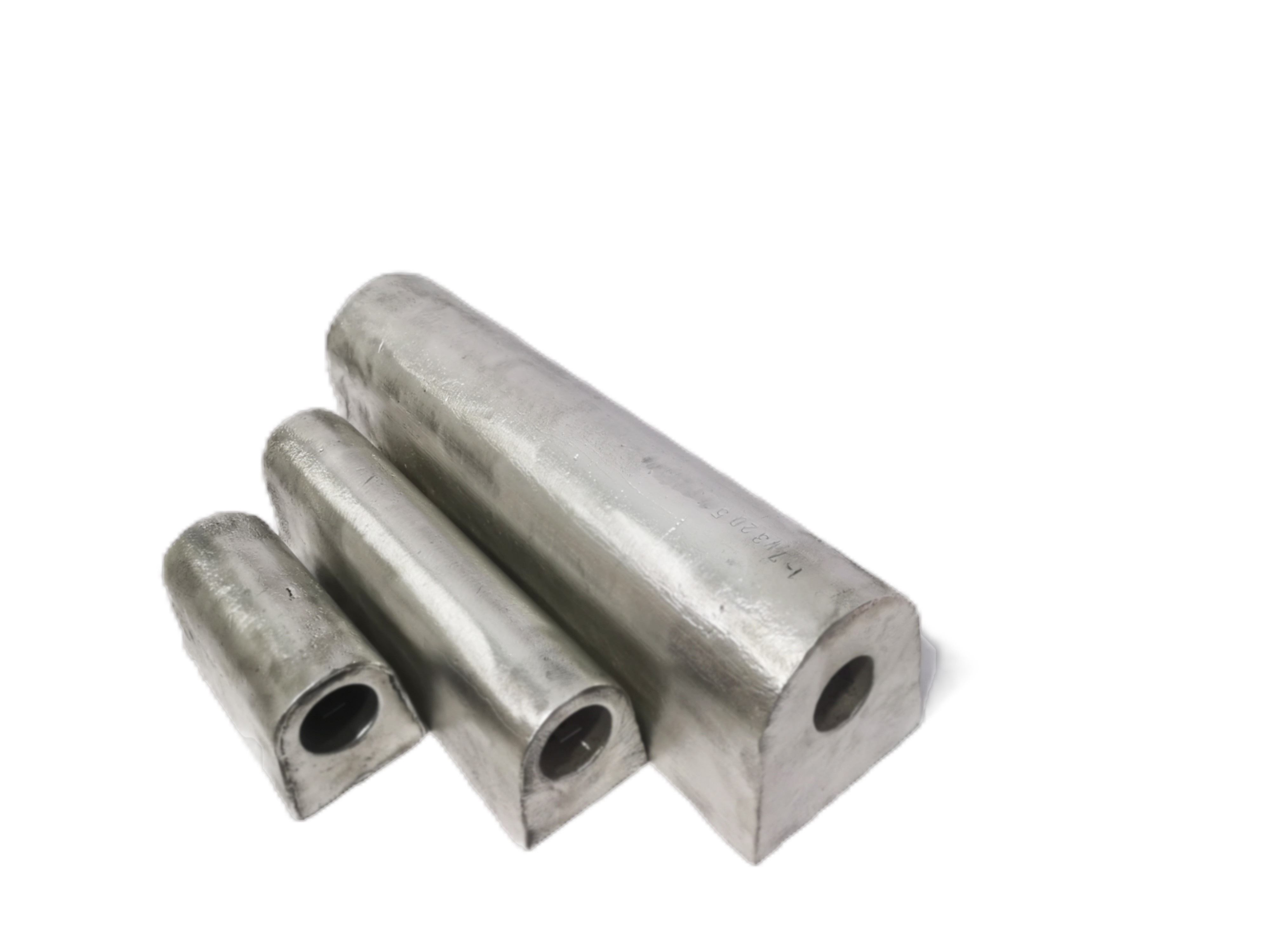

Photos:
