9D2-1 Magnesium Anodes Cathodic Protection Water Heater Anode Rod
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Model Number | 9D2-1 |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Anodes Cathodic Protection | Material | High Purity Magnesium |
|---|---|---|---|
| Adventage | Better Electrochemical Properties | Service | OEM / OEM |
| Technical Standard | GB/T 17731-2015 | Application | Protection For Natural Gas Storage Tanks |
| High Light | 9D2-1 Magnesium Anodes Cathodic Protection,Magnesium Anodes Cathodic Protection Rod,Magnesium Water Heater Anode Rod |
||
Product Description
GB/T 17731-2015 Magnesium Anode Cathodic Protection For Natural Gas Storage Tanks
Introduction:
Galvanic corrosion occurs between two or more metals, and an electrochemical reaction exists. To perform this process, the metals involved need to differ in chemical stability, with one metal being more chemically active than the other metal involving both metals. Galvanic corrosion occurs when these metals come into contact with each other and are immersed in any liquid that has conductive properties. Saltwater, heavily polluted freshwater, or freshwater with a high mineral content are extremely conductive, and galvanic corrosion can be accelerated in these waters.
Magnesium sacrificial anodes use magnesium to have a negative potential, and its potential is lower than that of steel. It can be used to protect onshore pipelines and other buried structures, such as oil pipelines, natural gas pipelines, underground oil tanks, oil platforms, water heaters, etc.
Parameters:
Our products have the following specifications:
- " D " anode
- " R " Cylindrical anode
- " S " anode
| Type | Weight(kg) | Width(mm) | Height(mm) | Length(mm) | Insert |
| 9D2-1 | 4.1 | 63.5 | 63.5 | 669.9 | Strip |
| 9D2-2 | 4.1 | 69.9 | 76.2 | 560 | Strip |
| 14D2-1 | 6.35 | 63.5 | 63.5 | 1054 | Strip |
| 14D2-2 | 6.35 | 69.9 | 76.2 | 850.9 | Strip |
| 20D2-1 | 9.1 | 63.5 | 63.5 | 1505 | Strip |
| 20D2-2 | 9.1 | 69.9 | 76.2 | 1270 | Strip |
| 9D3 | 4.1 | 88.9 | 95.25 | 258.8 | Strip |
| 17D3 | 7.7 | 88.9 | 95.25 | 657.2 | Strip |
| 32D5 | 14.5 | 139.7 | 146.05 | 523.9 | Strip |
| 48D5 | 21.8 | 139.7 | 146.05 | 765.2 | Strip |
| Type | N.W.(kg) | G.W.(kg) | DIA(mm) | Length(mm) | Length(mm) | Insert |
| 1.7v | 1.5v | Dimension | ||||
| R36 | 3.6 | 3.7 | 114 | 202 | 193 | 25x2x190 |
| R41 | 4.1 | 4.2 | 114 | 230 | 220 | 25x2x190 |
| R50 | 5.0 | 5.1 | 114 | 280 | 268 | 25x2x195 |
| R77 | 7.7 | 7.8 | 114 | 431 | 412 | 25x2x332 |
| R100 | 10.0 | 10.2 | 114 | 560 | 536 | 25x2x428 |
| R145 | 14.5 | 14.7 | 146 | 494 | 492 | 25x2x428 |
| R227 | 22.7 | 22.9 | 178 | 520 | 497 | 25x2x428 |
| R274(I) | 27.3 | 27.6 | 178 | 630 | 618 | 25x3x550 |
| R274(II) | 27.3 | 28.2 | 114 | 1528 | 1462 | 25x3x190 |
| Type | N.W.(kg) | G.W.(kg) | Top Width | Bottom Width | Length | Insert |
| (mm) | (mm) | (mm) | ||||
| 3S3 | 1.36 | 1.4 | 76 | 76 | 114 | Strip |
| 5S3 | 2.27 | 2.3 | 76 | 76 | 191 | Strip |
| 9S2 | 4.1 | 4.2 | 71.1 | 50.8 | 711 | Strip |
| 9S3 | 4.1 | 4.2 | 76 | 76 | 343 | Strip |
| 17S3 | 7.7 | 7.8 | 96.5 | 76.2 | 650 | Strip |
| 17S4 | 7.7 | 7.8 | 102 | 102 | 432 | Strip |
| 32S5 | 14.515 | 14.62 | 127 | 127 | 533 | Strip |
| 48S5 | 21.77 | 21.87 | 127 | 127 | 800 | Strip |
Features:
Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no need for external current, and its low engineering cost, easy to replace, etc., magnesium alloy anode is an ideal cathodic protection method.

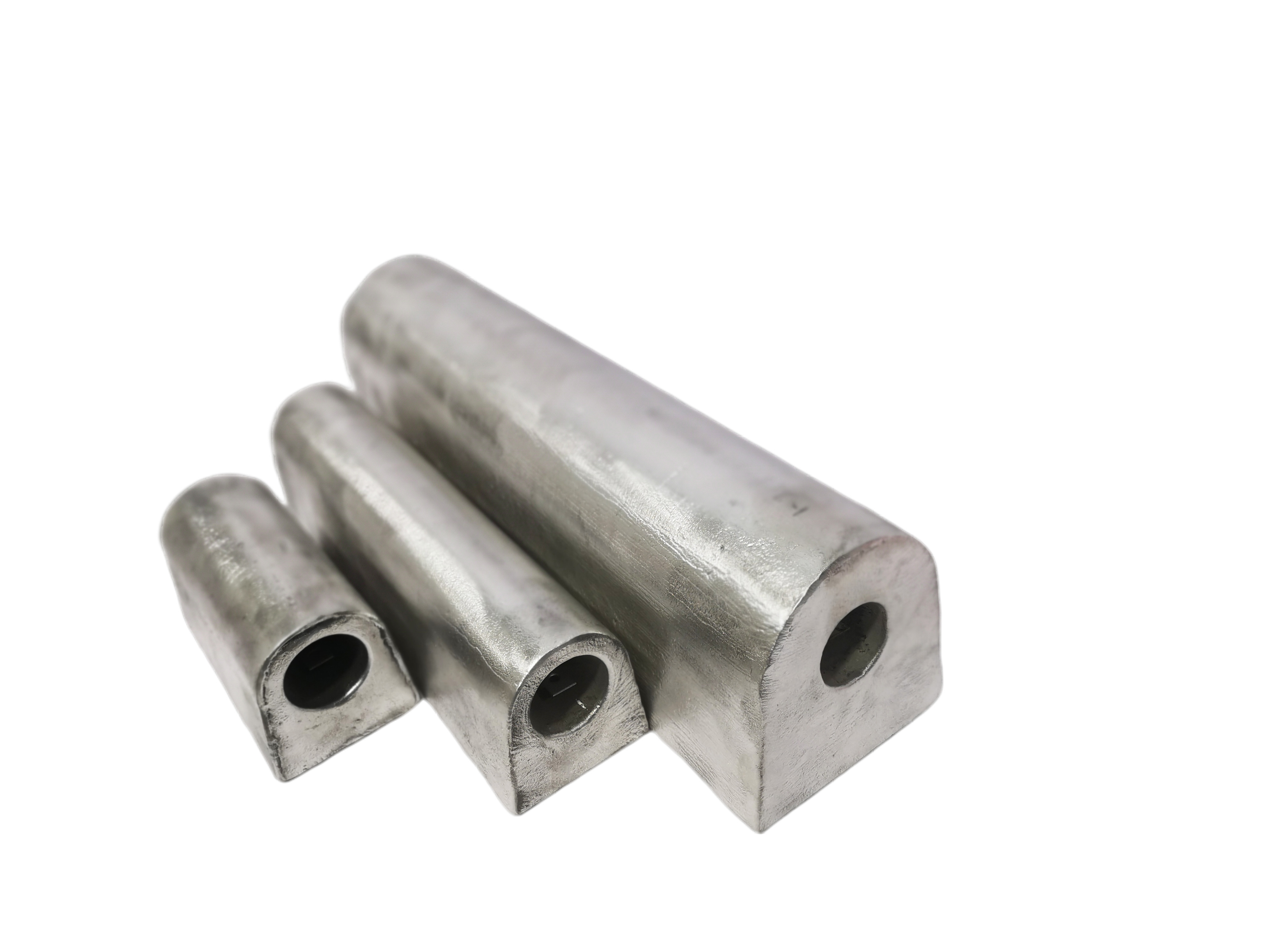

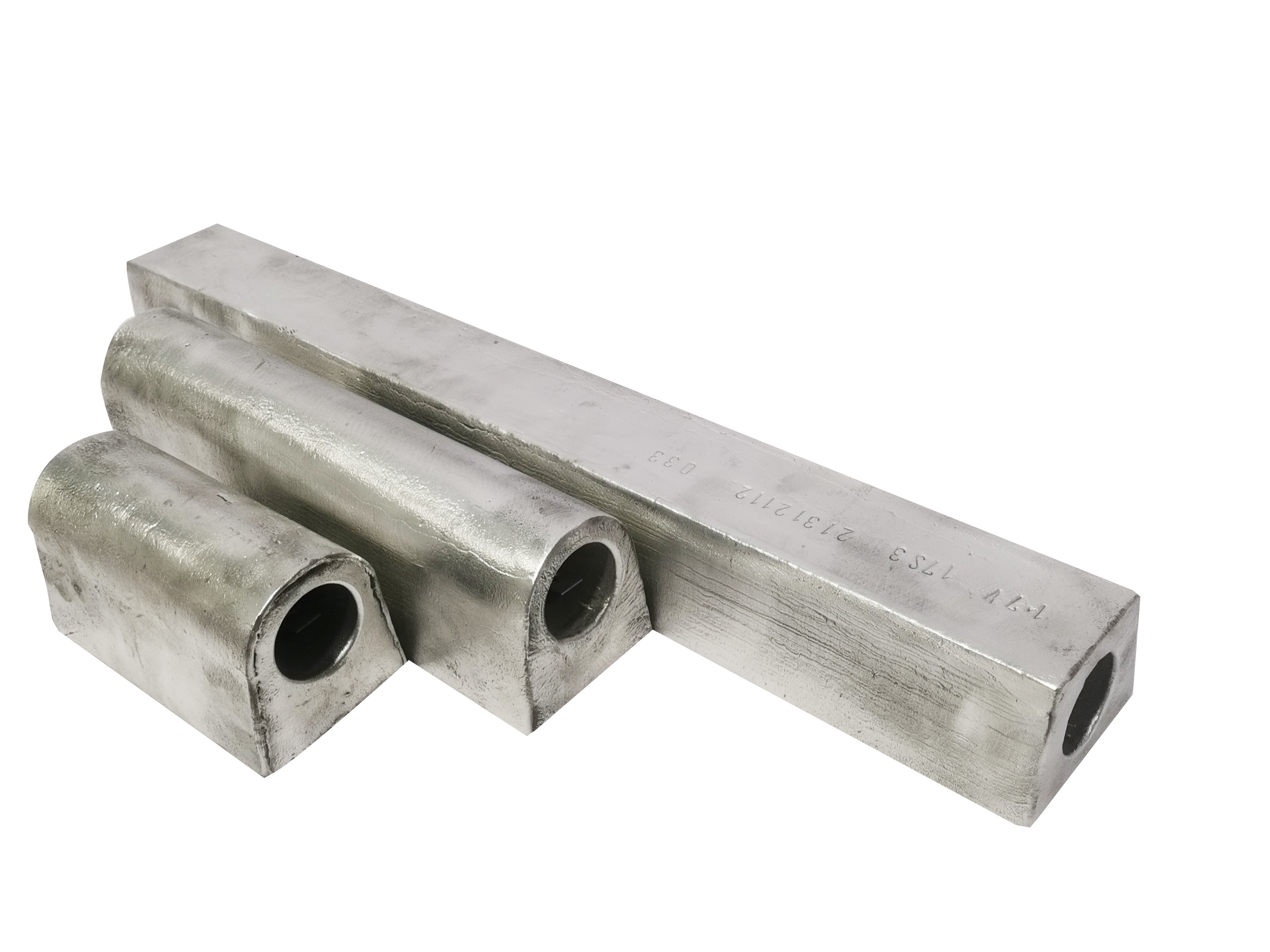

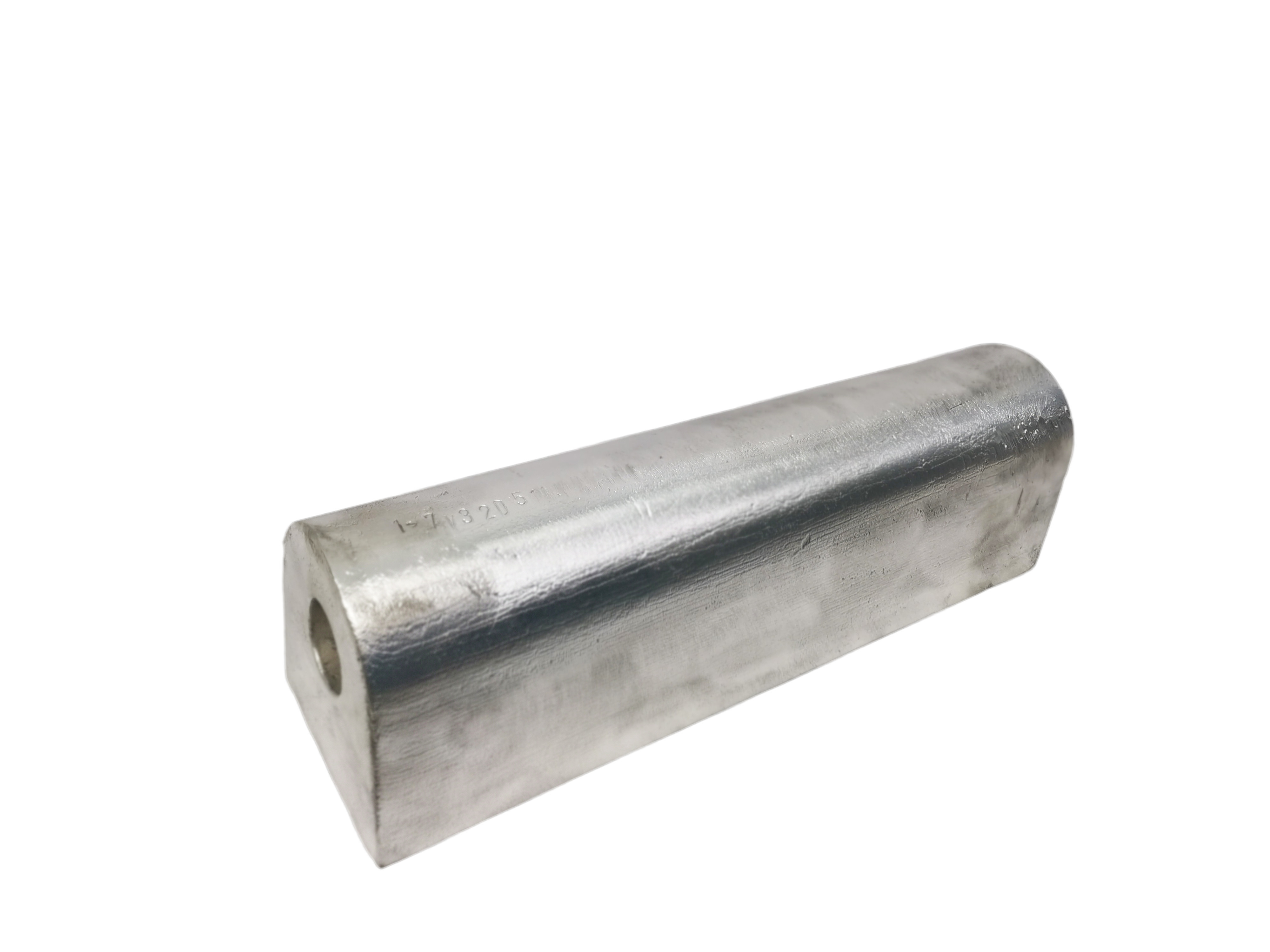

Photos:
