32D5 Magnesium Cathodic Protection Sacrificial Anode 14.5kg for Onshore Pipelines
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Model Number | 32D5 |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port, T/T |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Sacrificial Anodes | Material | High Purity Magnesium |
|---|---|---|---|
| Name | Magnesium Sacrificial Anodes | Type | D Type |
| Application | Cathodic Protection | Adventage | Better Electrochemical Properties |
| Service | OEM / ODM | Technical Standard | GB/T 17731-2015 |
| High Light | Magnesium Cathodic Protection Sacrificial Anode,32D5 Magnesium Cathodic Protection Sacrificial Anode,14.5kg Magnesium Sacrificial Anodes |
||
Product Description
14.5kg 32D5 Magnesium Anodes Cathodic Protection Sacrificial Anode To Protect Onshore Pipelines
Introduction:
They protect steel by sacrificing electrochemical action. This type of galvanic protection is called "sacrificial"; the magnesium rod (anode) corrodes rather than the can (cathode). This principle of electrolytic corrosion control is called "cathodic protection". Because the cathode surface does not rust, the tank is protected. Magnesium anode rods are a very important factor in tank life and should only be removed for inspection or drainage. By regularly inspecting and replacing magnesium anode rods, the life of your water heater can be greatly extended.
Features:
Magnesium alloy sacrificial anode features good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.
Specification:
|
Chemical composition %
|
||||||||
| Alloy | Al (max) | Mn | Si (max) | Cu (max) | Ni (max) | Fe (max) | Other impurity (each) | Total impurities |
| (max) | (max) | |||||||
| Mg- Mn | 0.01 | 0.50-1.30 | 0.05 | 0.005 | 0.001 | 0.03 | 0.05 | 0.3 |
Applications:
Magnesium alloy sacrificial anode is an ideal sacrificial anode material, suitable for soil and freshwater media, because of its negative potential, which is lower than that of steel, with extremely high electrochemical performance, uniform anode consumption, long life, and large power generation per unit mass. Cathodic protection of metal structures, used in oil pipelines, natural gas pipelines, underground oil tanks, oil platforms, water heaters, etc.

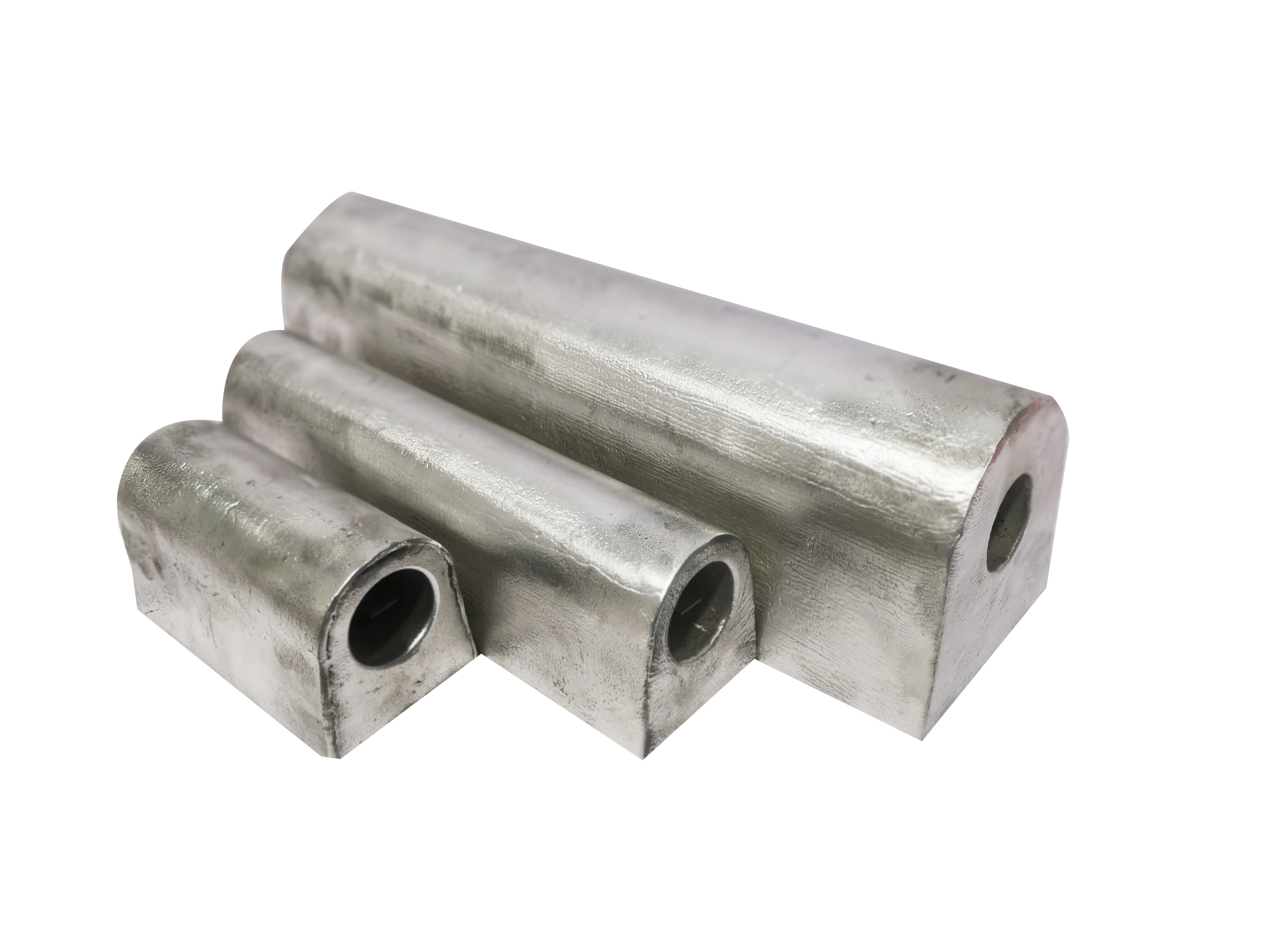

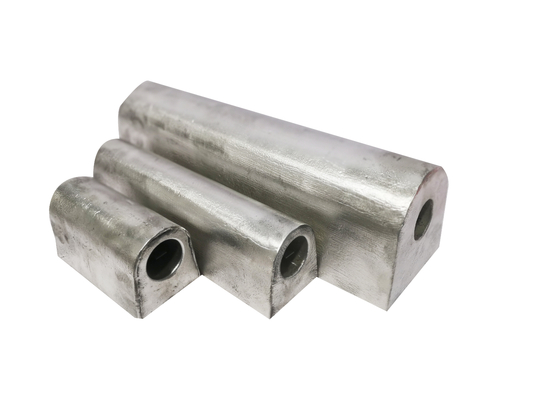

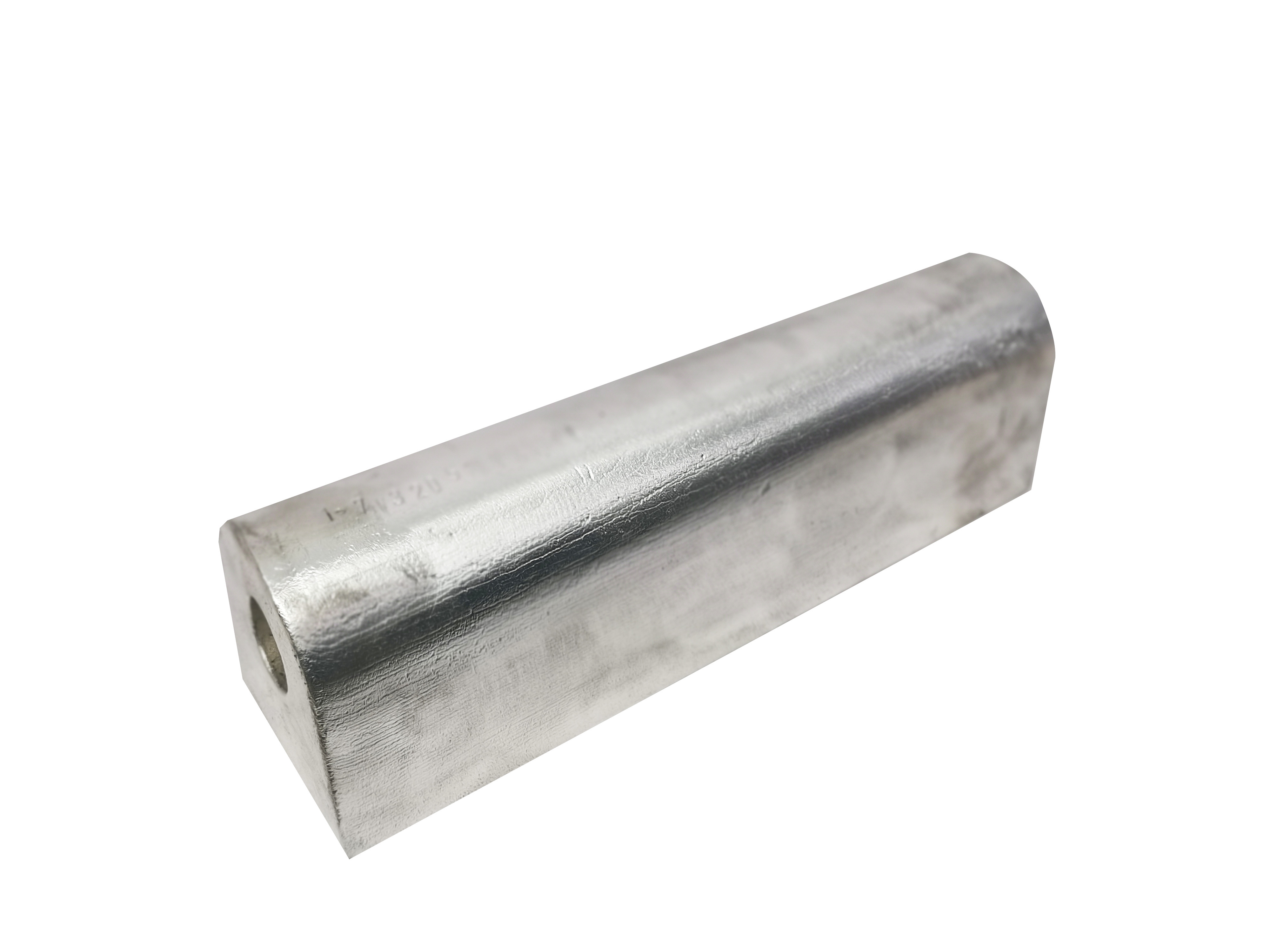

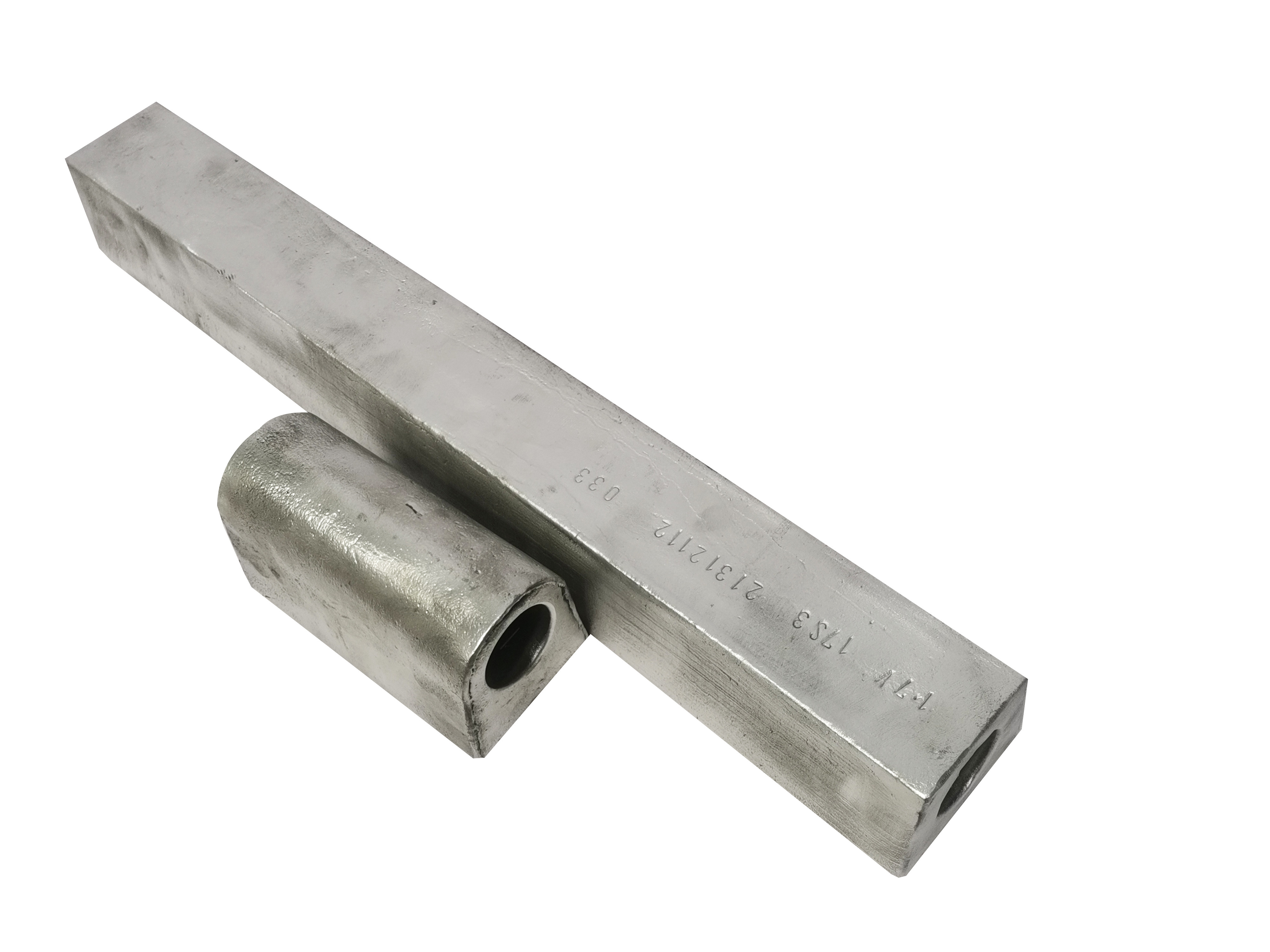

Photos:
FAQ:
Q : Can I add my logo on the boxes/cartons?
A : Yes,OEM and ODM are available from us.
Q : What are the benefits of being a distributor ?
A : Special discount Marketing protection.
Q : How does your factory control the quality of your products?
A : 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.
