ODM Magnesium Anodes Cathodic Protection Anti Corrosion 14.5kg For Boats

  • ODM Magnesium Anodes Cathodic Protection Anti Corrosion 14.5kg For Boats
Place of Origin CHINA
Certification USA : G97，ASTM
Minimum Order Quantity 1000 KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Magnesium Sacrificial Anodes Material High Purity Magnesium Alloy
Application Cathodic Protection Adventage Better Electrochemical Properties
Service OEM / ODM Technical Standard GB/T 17731-2015
High Light

ODM Magnesium Anodes Cathodic Protection

,

14.5kg Magnesium Anodes Cathodic Protection

,

Cathodic Protection Magnesium Anodes For Boats
Leave a Message
Product Description

ODM Magnesium Anodes Corrosion Protection 14.5kg Magnesium For Boats Anti-Corrosion



Introduction:



Cathodic systems are often used to protect steel from corrosion. Corrosion is caused when two dissimilar metals are immersed in an electrolyte. This metallic conduction path between two dissimilar metals allows a pathway for free electrons to move from the more reactive metal (anode) to the less reactive metal (cathode).



Parameters:



Our products have the following specifications:

  • " D " anode
  • " R " Cylindrical anode
  • " S " anode

Chemical composition %



Alloy Al (max) Mn Si (max) Cu (max) Ni (max) Fe (max) Other impurity (each) Total impurities
(max) (max)
Mg- Mn 0.01 0.50-1.30 0.05 0.005 0.001 0.03 0.05 0.3



The electrochemical performance



Open voltage Closed voltage Actual capacity Efficiency
1.70-1.75 1.58-1.62 1230 min 50 min



Advantages:



A: The one-time investment cost is low, and basically no maintenance cost is required during operation
B: The utilization rate of the protection current is high, and no over-protection occurs
C: No interference to adjacent underground metal facilities, suitable for long-distance pipelines without power supply, and small-scale decentralized pipeline protection
D: It has the functions of grounding and protection
E: The construction technology is simple, and no special professional maintenance management is usually required.



Applications:



Magnesium anodes are effective and affordable in fighting corrosion. Magnesium anodes play a key role in protecting steel structures in salt and fresh water. include:

  • Hull and various other boats
  • Water tank
  • Piers, piers and piers
  • pipeline
  • heat exchanger
  • travel screen



Photos:

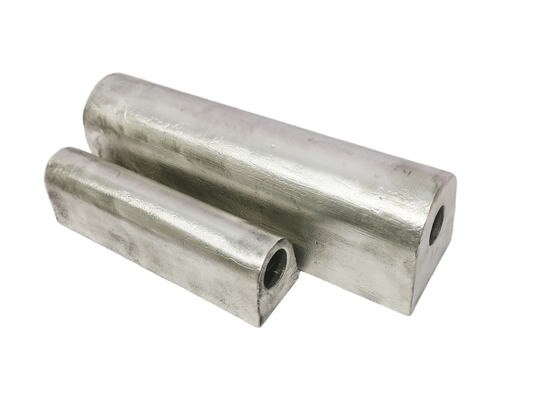

ODM Magnesium Anodes Cathodic Protection Anti Corrosion 14.5kg For Boats 0
