Trapezoid Magnesium - Based Cathodic Protection Magnesium Anode Size Customization

  • Trapezoid Magnesium - Based Cathodic Protection Magnesium Anode Size Customization
  • Trapezoid Magnesium - Based Cathodic Protection Magnesium Anode Size Customization
Place of Origin CHINA
Certification USA: G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Magnesium - Based Anodes Material High Purity Magnesium
Application Protection For Petroleum Pipelines Adventage Better Electrochemical Properties
Service OEM / OEM Technical Standard GB/T 17731-2015
Leave a Message
Product Description

Trapezoid Magnesium - Based Cathodic Protection Magnesium Anode Size Customization



Introduction:



The magnesium anode we provide has a negative potential and generates a large amount of electricity per unit mass, which is an ideal sacrificial anode material. It is suitable for cathodic protection of metal structures in media such as soil, fresh water and sea water. The magnesium alloy sacrificial anode is produced according to the national standard GB/T17731-2004 "Magnesium Alloy Sacrificial Anode", which is used for the anode of the pipeline, and also conforms to SY/T0019-97 "Design Specification for Cathodic Protection of Buried Steel Pipeline Sacrificial Anode"



Parameters:



Chemical composition %



Alloy Al (max) Mn Si (max) Cu (max) Ni (max) Fe (max) Other impurity (each) Total impurities
(max) (max)
Mg- Mn 0.01 0.50-1.30 0.05 0.005 0.001 0.03 0.05 0.3



The electrochemical performance



Open voltage Closed voltage Actual capacity Efficiency
1.70-1.75 1.58-1.62 1230 min 50 min



Features:



Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.



Applications:



Cathodic protection is often used to mitigate corrosion damage to active metal surfaces. It is used worldwide to protect pipelines, water treatment plants, above and submerged storage tanks, ships and hulls, offshore production platforms, concrete structures and rebar in docks, among others.



Photos:

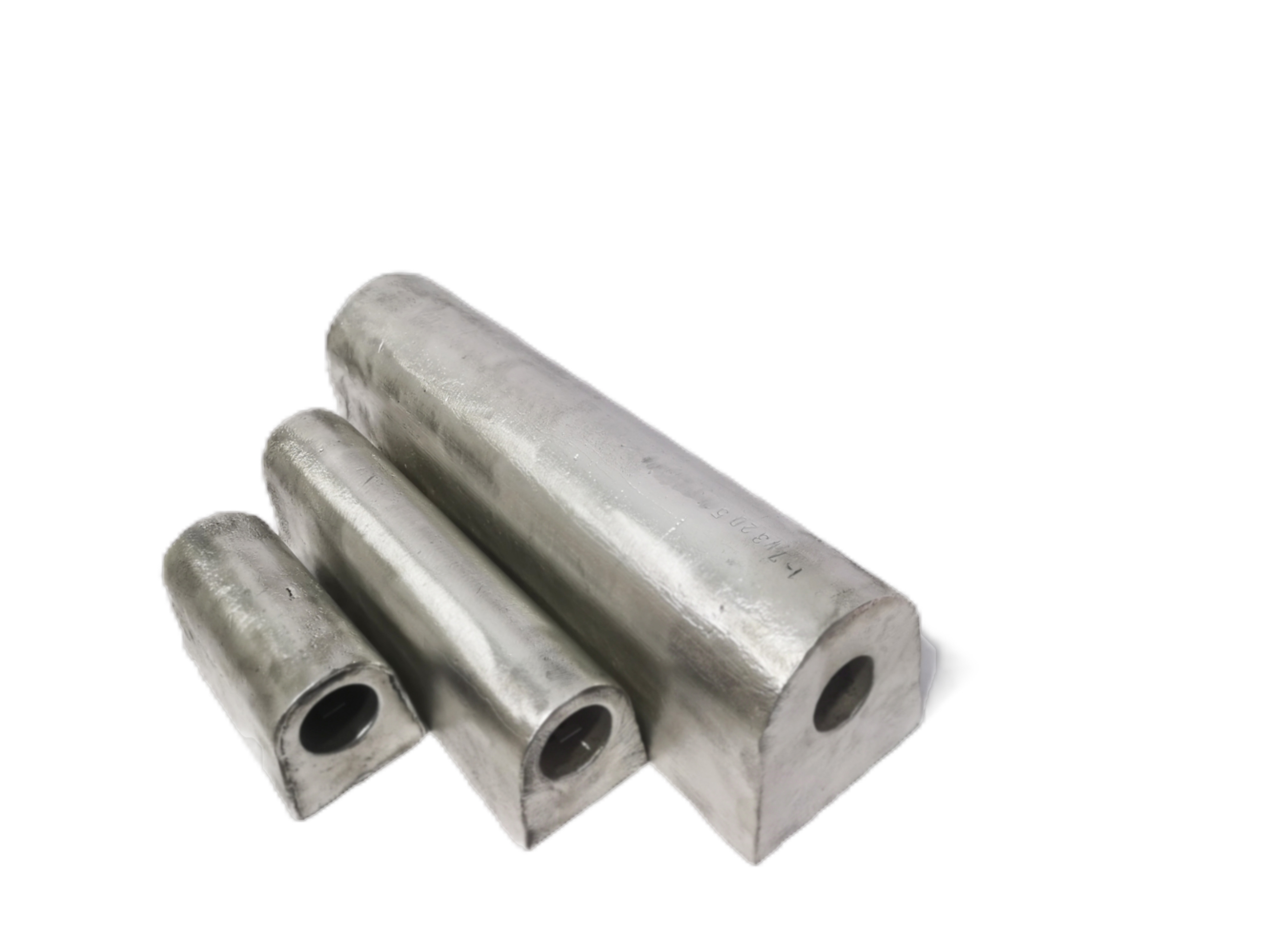

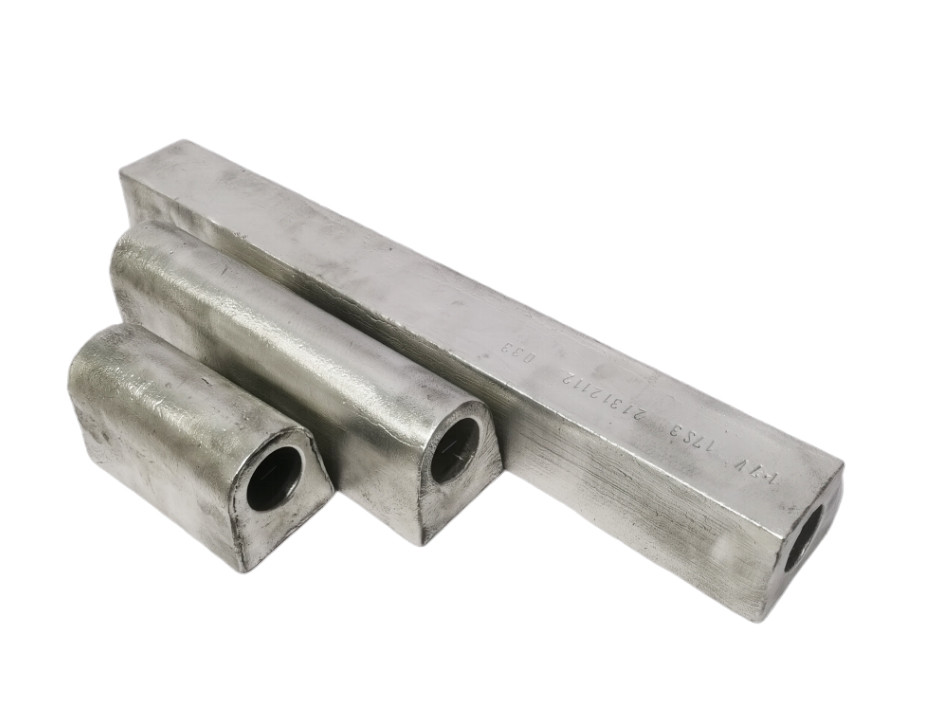

Trapezoid Magnesium - Based Cathodic Protection Magnesium Anode Size Customization 0
