Oem D - Shaped Magnesium Anodes Cathodic Protection To Prevent Corrosion
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Anodes | Material | High Purity Magnesium |
|---|---|---|---|
| Adventage | Better Electrochemical Properties | Service | OEM / OEM |
| Technical Standard | GB/T 17731-2015 | Application | Move Corrosion Away For Oil Pipe |
Product Description
Oem D - Shaped Magnesium Anodes Cathodic Protection To Prevent Corrosion
Introduction:
The magnesium anode we provide has a negative potential and generates a large amount of electricity per unit mass, which is an ideal sacrificial anode material. It is suitable for cathodic protection of metal structures in media such as soil, fresh water and sea water. The magnesium alloy sacrificial anode is produced according to the national standard GB/T17731-2004 "Magnesium Alloy Sacrificial Anode", which is used for the anode of the pipeline, and also conforms to SY/T0019-97 "Design Specification for Cathodic Protection of Buried Steel Pipeline Sacrificial Anode"
Specification:
" D " Type
| Type | Weight(kg) | Width(mm) | Hight(mm) | Length(mm) | Insert |
| 9D2-1 | 4.1 | 63.5 | 63.5 | 669.9 | Strip |
| 9D2-2 | 4.1 | 69.9 | 76.2 | 560 | Strip |
| 14D2-1 | 6.35 | 63.5 | 63.5 | 1054 | Strip |
| 14D2-2 | 6.35 | 69.9 | 76.2 | 850.9 | Strip |
| 20D2-1 | 9.1 | 63.5 | 63.5 | 1505 | Strip |
| 20D2-2 | 9.1 | 69.9 | 76.2 | 1270 | Strip |
| 9D3 | 4.1 | 88.9 | 95.25 | 258.8 | Strip |
| 17D3 | 7.7 | 88.9 | 95.25 | 657.2 | Strip |
| 32D5 | 14.5 | 139.7 | 146.05 | 523.9 | Strip |
| 48D5 | 21.8 | 139.7 | 146.05 | 765.2 | Strip |
Chemical composition %
| Alloy | Al (max) | Mn | Si (max) | Cu (max) | Ni (max) | Fe (max) | Other impurity (each) | Total impurities |
| (max) | (max) | |||||||
| Mg- Mn | 0.01 | 0.50-1.30 | 0.05 | 0.005 | 0.001 | 0.03 | 0.05 | 0.3 |
The electrochemical performance
| Open voltage | Closed voltage | Actual capacity | Efficiency |
| 1.70-1.75 | 1.58-1.62 | 1230 min | 50 min |
Features:
Magnesium alloy sacrificial anode features: good protection performance, easy installation, automatic operation after installation, no maintenance, no external current, low engineering cost, easy replacement, etc. Magnesium alloy anode is an ideal cathodic protection method.
Applications:
Magnesium sacrificial anode can not only be used for cathodic protection of machinery and equipment in fresh water and seawater, port facilities, ships, offshore drilling, etc., but also can be used to protect steel structures immersed in seawater, such as ship hulls and other steel and aluminum Alloy materials, corrosion-resistant parts such as main submarine valves, cooling circulation systems, seawater inlets, pipes, filters, coolers, etc., which affect the safety of ship navigation.

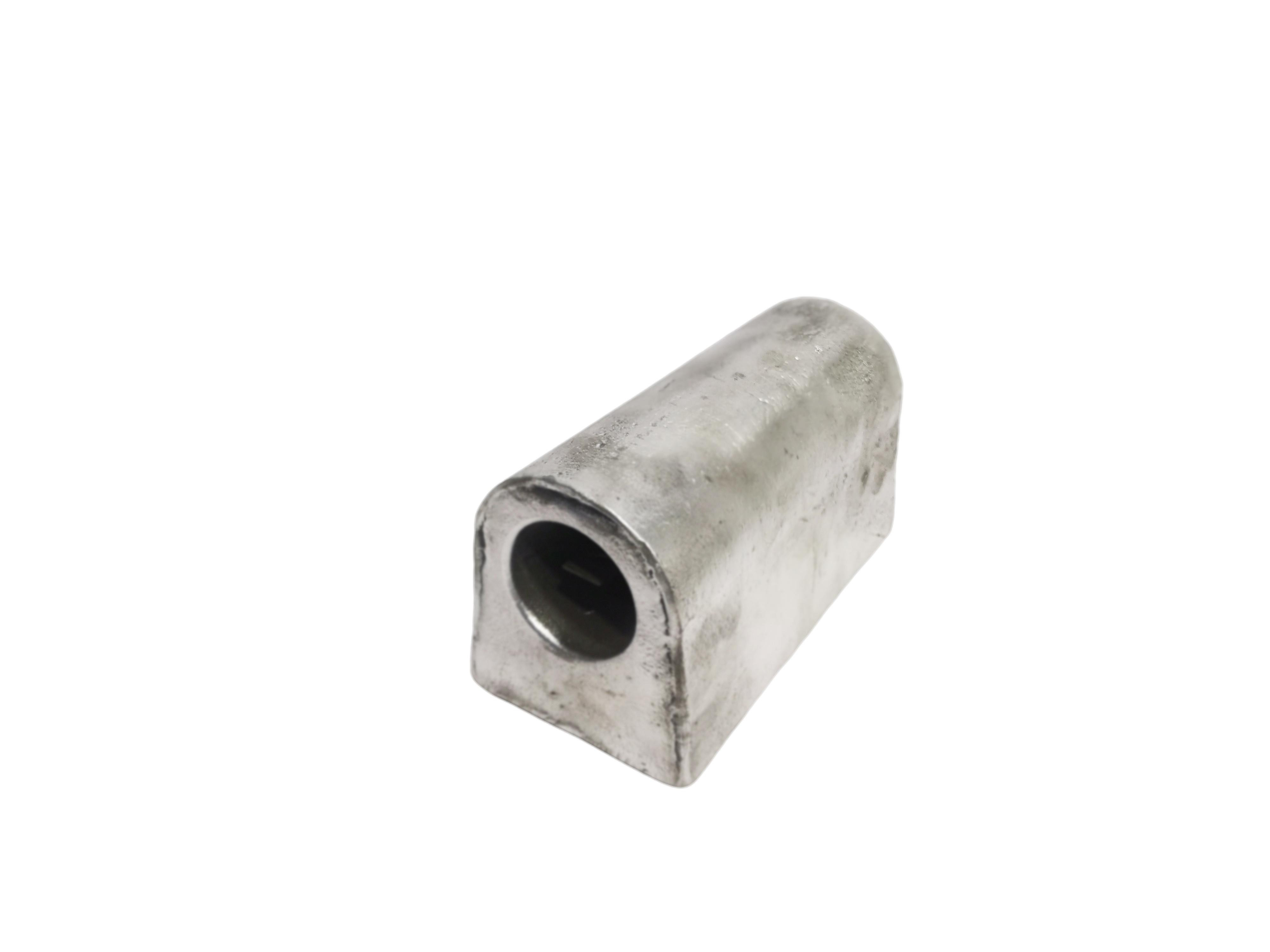

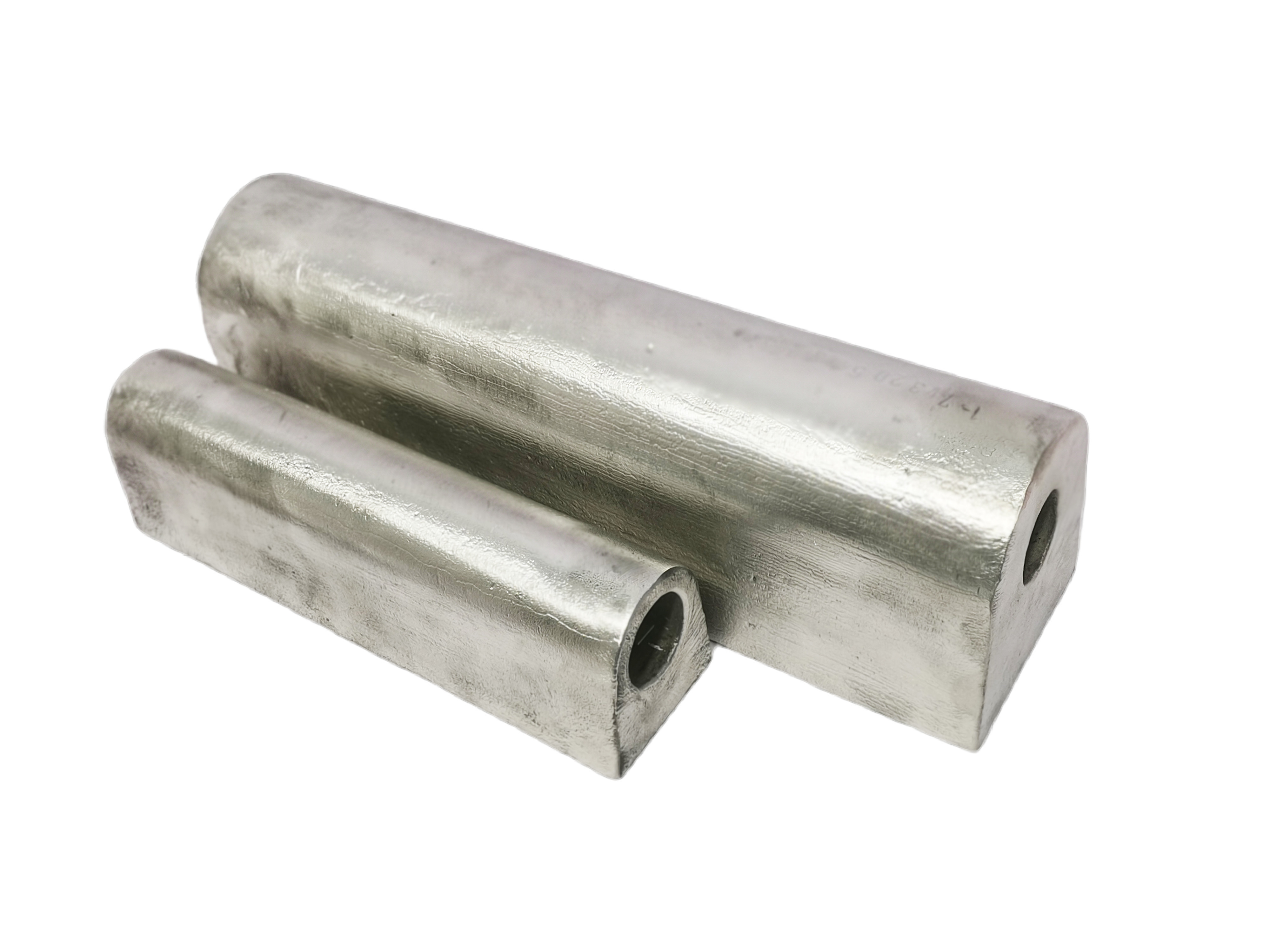

Photos:
FAQ:
Q : Can I add my logo on the boxes/cartons?
A : Yes,OEM and ODM are available from us.
Q : What are the benefits of being a distributor ?
A : Special discount Marketing protection.
Q : How does your factory control the quality of your products?
A : 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.
Q : Can we mix items in one 20ft container?
A : Yes.
Q : Can I have a visit to your factory before the order?
A : Sure,welcome your visit of factory.
Q : What's the necessary parameters to get the accurate quote?
A : Material chemical composition, anode size, cable and other accessaries information.
