Size Customization Magnesium Anodes Cathodic Protection Corrosion Control

  • Size Customization Magnesium Anodes Cathodic Protection Corrosion Control
  • Size Customization Magnesium Anodes Cathodic Protection Corrosion Control
Place of Origin CHINA
Certification USA: G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port, T/T
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Magnesium Anodes Material High Purity Magnesium
Application Metal Anticorrosion Adventage High Drive Voltage
Service OEM / OEM Technical Standard GB/T 17731-2015
Leave a Message
Product Description

Size Customization Magnesium Anodes Cathodic Protection Corrosion Control



Introduction:



Magnesium sacrificial anodes utilize magnesium to have a negative potential, which is lower than steel. It can be used to protect onshore pipelines and other buried structures, such as oil pipelines, natural gas pipelines, underground oil tanks, oil platforms, water heaters, etc.



Parameters:



Our products have the following specifications:

  • " D " anode
  • " R " Cylindrical anode
  • " S " anode

Chemical composition %



Alloy Al (max) Mn Si (max) Cu (max) Ni (max) Fe (max) Other impurity (each) Total impurities
(max) (max)
Mg- Mn 0.01 0.50-1.30 0.05 0.005 0.001 0.03 0.05 0.3



The electrochemical performance



Open voltage Closed voltage Actual capacity Efficiency
1.70-1.75 1.58-1.62 1230 min 50 min



Advantages:



A: The one-time investment cost is low, and basically no maintenance cost is required during operation
B: The utilization rate of the protection current is high, and no over-protection occurs
C: No interference to adjacent underground metal facilities, suitable for long-distance pipelines without power supply, and small-scale decentralized pipeline protection
D: It has the functions of grounding and protection
E: The construction technology is simple, and no special professional maintenance management is usually required.



Applications:



Magnesium anodes are effective and affordable in fighting corrosion. Magnesium anodes play a key role in protecting steel structures in salt and fresh water. include:

  • Hull and various other boats
  • Water tank
  • Piers, piers and piers
  • pipeline
  • heat exchanger
  • travel screen



Photos:

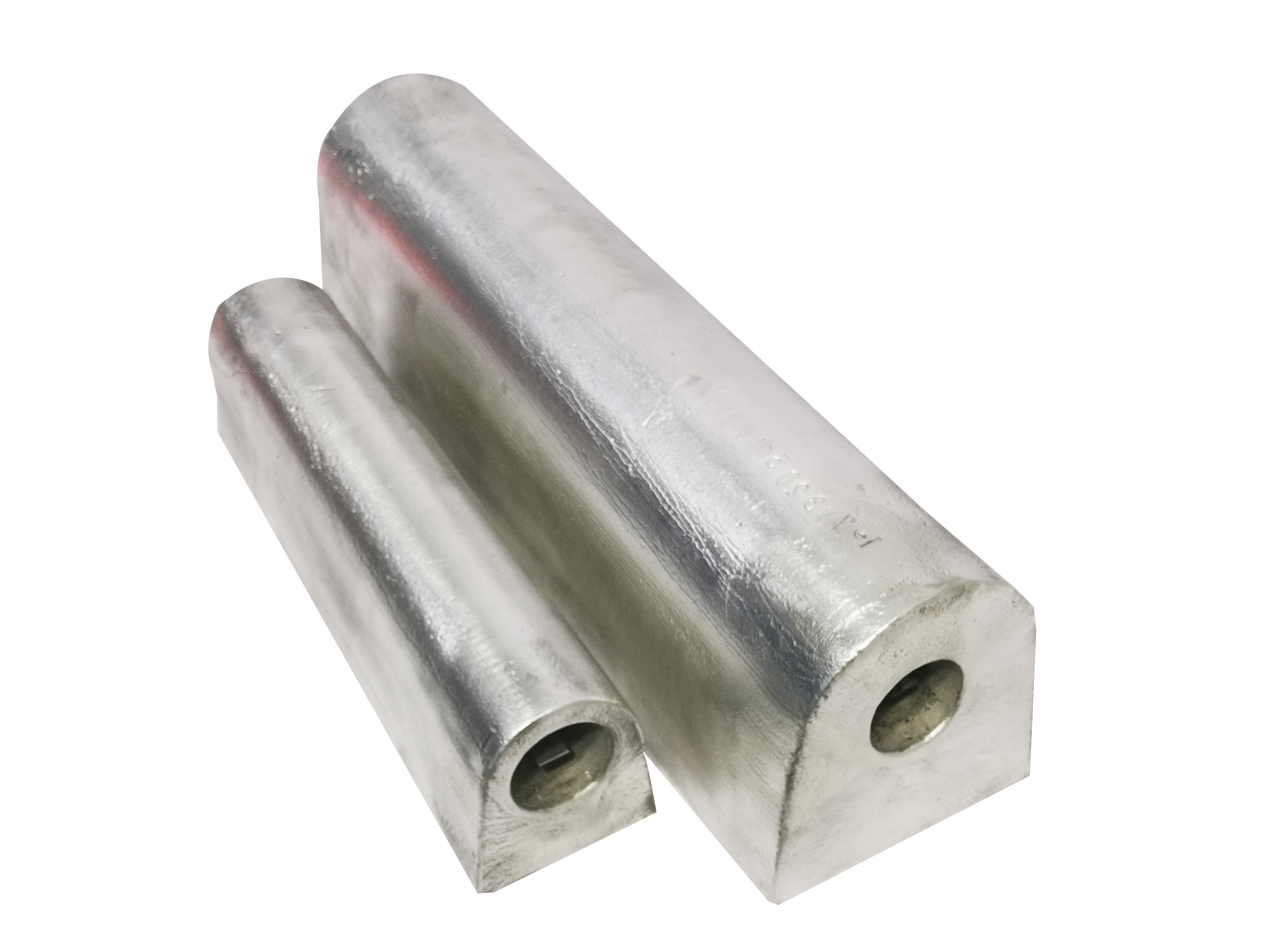

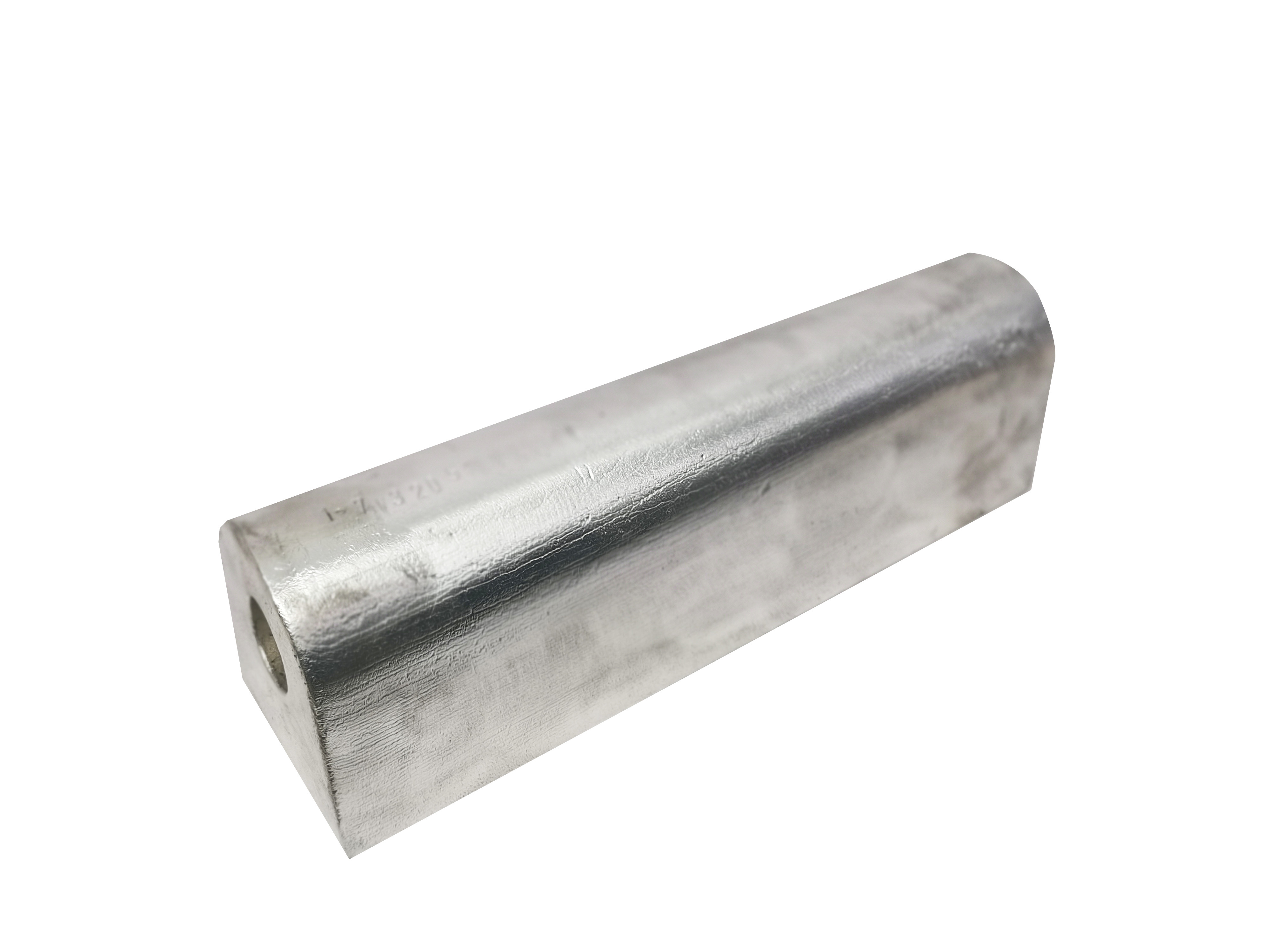

Size Customization Magnesium Anodes Cathodic Protection Corrosion Control 0
