Shape Customization Magnesium Anodes Cathodic Protection Anti Corrosion For Boats

  • Shape Customization Magnesium Anodes Cathodic Protection Anti Corrosion For Boats
  • Shape Customization Magnesium Anodes Cathodic Protection Anti Corrosion For Boats
Place of Origin CHINA
Certification USA : G97，ASTM
Minimum Order Quantity 1000 KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Magnesium Sacrificial Anodes Material High Purity Magnesium Alloy
Application Cathodic Protection Adventage Better Electrochemical Properties
Service OEM / ODM Technical Standard GB/T 17731-2015
Leave a Message
Product Description

Shape Customization Magnesium Anodes Cathodic Protection Anti Corrosion For Boats



Introduction:



The magnesium anode we provide has a negative potential and a large amount of electricity per unit mass, which is an ideal sacrificial anode material. It is suitable for cathodic protection of metal structures in soil, fresh water and seawater. The magnesium alloy sacrificial anode is produced according to the national standard GB/T17731-2004 "Magnesium Alloy Sacrificial Anode", which is used for the anode of the pipeline, and also conforms to SY/T0019-97 "Design Specification for Cathodic Protection of Buried Steel Pipeline Sacrificial Anode"



Parameters:



Our products have the following specifications:

  • " D " anode
  • " R " Cylindrical anode
  • " S " anode

Chemical composition %



Alloy Al (max) Mn Si (max) Cu (max) Ni (max) Fe (max) Other impurity (each) Total impurities
(max) (max)
Mg- Mn 0.01 0.50-1.30 0.05 0.005 0.001 0.03 0.05 0.3



The electrochemical performance



Open voltage Closed voltage Actual capacity Efficiency
1.70-1.75 1.58-1.62 1230 min 50 min



Advantages:



A: The one-time investment cost is low, and basically no maintenance cost is required during operation
B: The utilization rate of the protection current is high, and no over-protection occurs
C: No interference to adjacent underground metal facilities, suitable for long-distance pipelines without power supply, and small-scale decentralized pipeline protection
D: It has the functions of grounding and protection
E: The construction technology is simple, and no special professional maintenance management is usually required.



Applications:



Magnesium anodes are effective and affordable in fighting corrosion. Magnesium anodes play a key role in protecting steel structures in salt and fresh water. include:

  • Hull and various other boats
  • Water tank
  • Piers, piers and piers
  • pipeline
  • heat exchanger
  • travel screen



Photos:

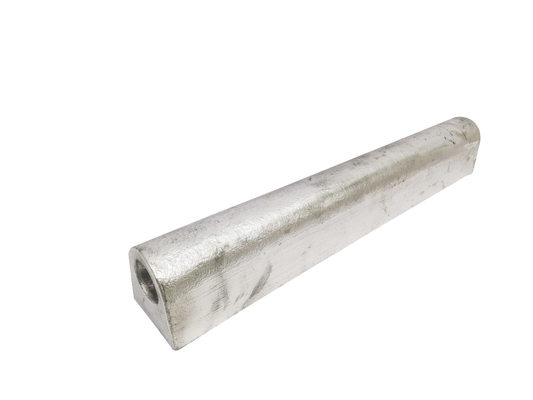

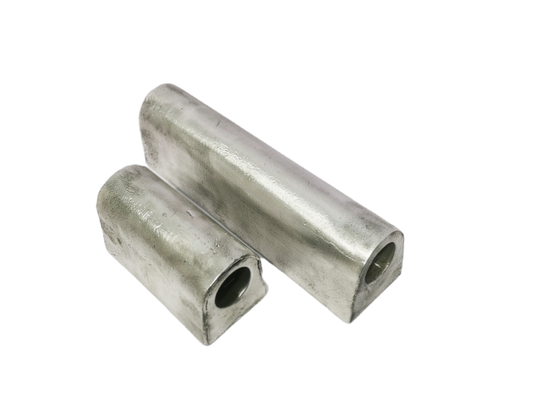

Shape Customization Magnesium Anodes Cathodic Protection Anti Corrosion For Boats 0
