0.001Ohm Pre Packaged Magnesium Anode Corrosion Protection Mg G97
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Anode Assembly | Environmental Protection | Easily Recycled |
|---|---|---|---|
| Insulation Materials | PVC/PVC,XLPE/PVC,HMWPE | Electric Cable | 6 Mm2,10 Mm2 And 16 Mm2 |
| Fillings | Mixing 75%gypsum Powder,20%bentonite And 5%Na2504 | Electric Resistance | <0.001 |
| Connection Strength | 5 Times The Weight Of The Assembled Anodes | ||
| High Light | 0.001Ohm Pre Packaged Magnesium Anode,Anode Corrosion Protection Mg G97,Pre Packaged Magnesium Anode G97 |
||
Product Description
Easy To Construct Prepackaged Magnesium Anode Apply To Corrosion Protection For Buried Pipeline
Introduction:
The magnesium alloy sacrificial anode set assembly is a new concept anode product supplemented by set accessories on the basis of the previous single magnesium alloy sacrificial anode in order to meet the construction requirements of high rhythm and efficiency of engineering construction. Make the construction of customers more convenient, save time, and better meet customer needs.
Composition:

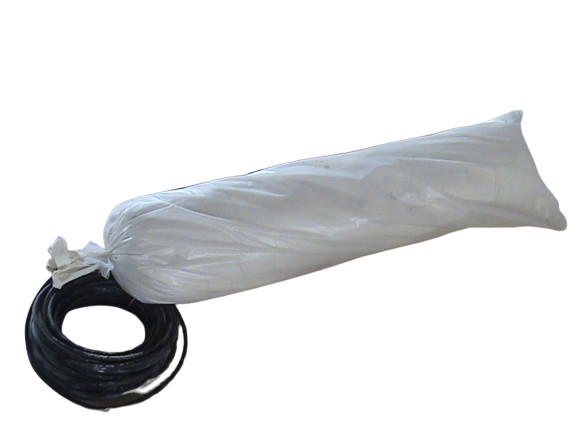

A complete set of magnesium sacrificial anode, consisting of 1 magnesium sacrificial anode ingot, a VV-10mm2 cable 3 meters, a packing material of 50kg, a cotton pocket, and a plastic woven bag. That is, there is 1 magnesium sacrificial anode ingot in the cotton pocket, and 1 VV-10mm2 cable 3 meters is welded on the iron core. The welding place is insulated and covered with heat-shrinkable tube. 50kg of the packing material is evenly distributed around the magnesium sacrificial anode ingot. 1 plastic woven bag for cotton pocket jacket.
|
gypsum powder |
Filler formula, wt% |
Applicable conditions |
||
|
(CaSo4.2H2o) |
Na2SO4 |
Mg2SO4 |
bentonite |
|
|
50 |
0 |
0 |
50 |
≤20Ω.m |
|
25 |
0 |
25 |
50 |
≤20Ω.m |
|
75 |
5 |
0 |
20 |
≥20Ω.m |
|
15 |
15 |
20 |
50 |
≥20Ω.m |
|
15 |
0 |
35 |
50 |
≥20Ω.m |
The quality index of the magnesium alloy sacrificial anode is:
1. Cable connection resistance: less than 0.001Ohm
2. Cable connection strength: more than 5 times the weight of the assembled anode.
Specification:
| Number | Model | Diameter (mm) | Length(mm) | Weight(kg) |
| 1 | SSD-MG-5D2 | 127 | 450 | 8.2 |
| 2 | SSD-MG-9D2 | 140 | 690 | 16 |
| 3 | SSD-MG-9D2-1 | 130 | 810 | 16 |
| 4 | SSD-MG-20D2 | 140 | 1650 | 38 |
| 5 | SSD-MG-5D3 | 160 | 300 | 9 |
| 6 | SSD-MG-9D3 | 160 | 550 | 16 |
| 7 | SSD-MG-17D3 | 160 | 780 | 22 |
| 8 | SSD-MG-35D5 | 200 | 680 | 30 |
| 9 | SSD-MG-48D5 | 205 | 960 | 45 |
| 10 | SSD-MG-R50 | 160 | 480 | 13.5 |
| 11 | SSD-MG-R77 | 175 | 640 | 22 |
| 12 | SSD-MG-R100 | 175 | 710 | 25 |
| 13 | SSD-MG-R145 | 200 | 650 | 30 |
| 14 | SSD-MG-R273 | 175 | 1650 | 58 |
Note:
Please inform the magnesium alloy sacrificial anode specification, the required size and length of the cable when ordering.
Application:
Apply To Corrosion Protection In Low & High Potential Magnesium Hull Anode Used For Buried Pipeline.
Photos:
