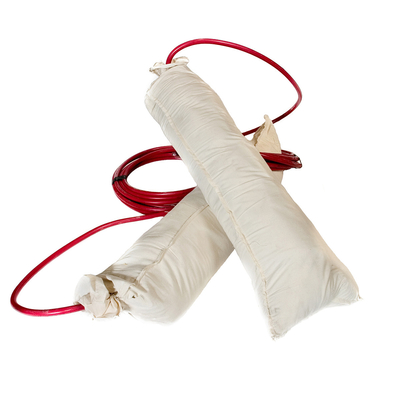

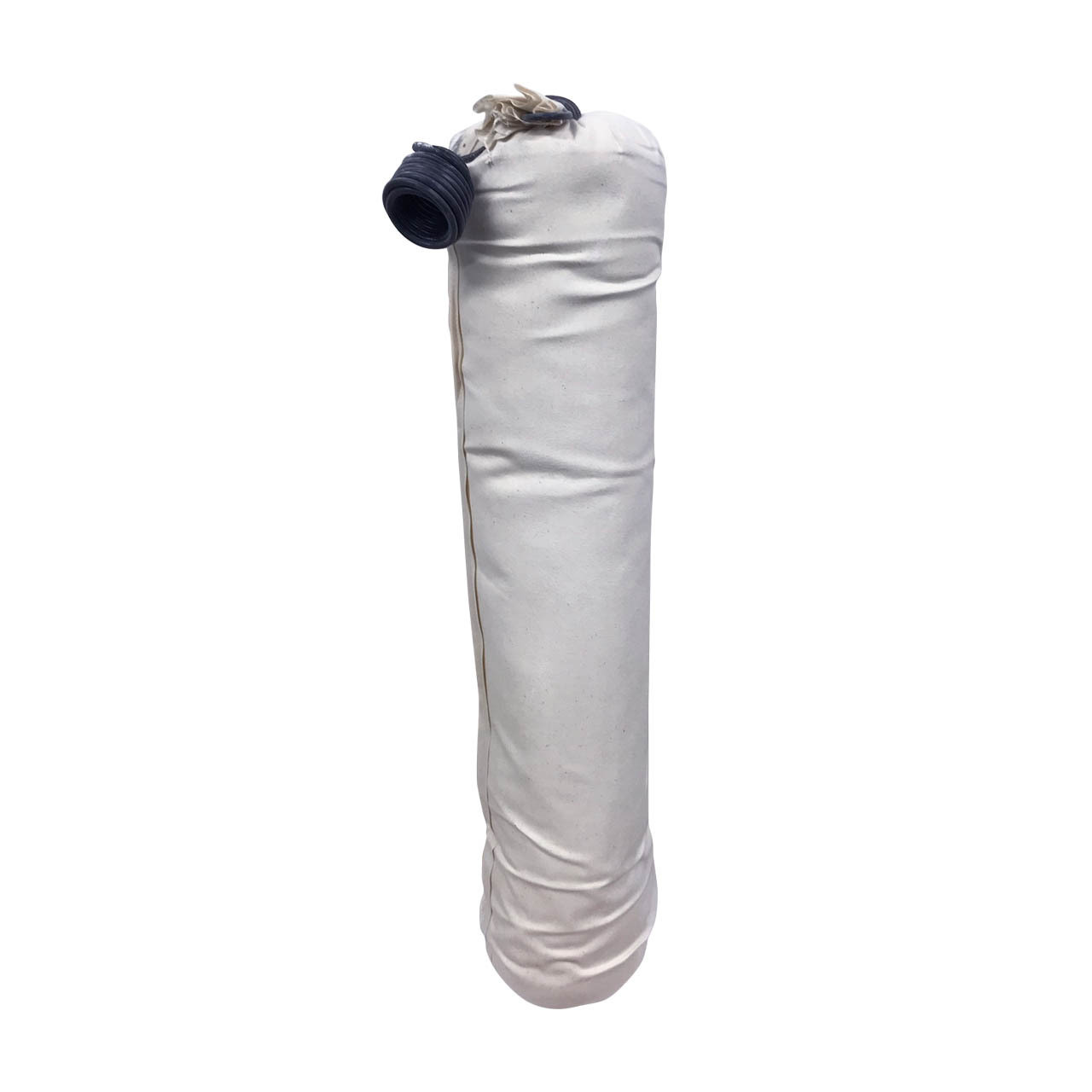

450mm Prepackaged Magnesium Sacrificial Anode Cathodic Protection G97
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Anode Assembly | Environmental Protection | Easily Recycled |
|---|---|---|---|
| Insulation Materials | PVC/PVC,XLPE/PVC,HMWPE | Electric Cable | 6 Mm2,10 Mm2 And 16 Mm2 |
| Fillings | Mixing 75%gypsum Powder,20%bentonite And 5%Na2504 | Electric Resistance | <0.001 |
| Connection Strength | 5 Times The Weight Of The Assembled Anodes | ||
| High Light | 450mm Prepackaged Magnesium Anode,Prepackaged Magnesium Anode G97,Sacrificial Anode Cathodic Protection G97 |
||
Product Description
Save Time And Energy Prepackaged Magnesium Anode For Buried Pipeline Cathodic Protection
Introduction:
The magnesium alloy sacrificial anode set is developed to ensure the construction quality of cathodic protection projects and simplify the on-site construction procedures. The construction is convenient and fast, and the operations originally performed on the construction site are completed in the factory, which effectively ensures the construction and installation quality of the anode ground bed.
Composition:
1. One sacrificial anode for any model.
2. One cable wire: welded on the sacrificial anode according to the length and specifications required by the customer, and sealed with epoxy resin and dibutyl ester with glass wire or polyvinyl chloride heat shrinkable sleeve according to the proportion.
3. A pack of special fillers.
4. A set of aluminum heat flux.
5. One anode cloth bag.
|
gypsum powder |
Filler formula, wt% |
Applicable conditions |
||
|
(CaSo4.2H2o) |
Na2SO4 |
Mg2SO4 |
bentonite |
|
|
50 |
0 |
0 |
50 |
≤20Ω.m |
|
25 |
0 |
25 |
50 |
≤20Ω.m |
|
75 |
5 |
0 |
20 |
≥20Ω.m |
|
15 |
15 |
20 |
50 |
≥20Ω.m |
|
15 |
0 |
35 |
50 |
≥20Ω.m |
Quality Index:
1. Cable connection resistance: less than 0.001Ohm
2. Cable connection strength: more than 5 times the weight of the assembled anode.
Specification:
| Number | Model | Diameter (mm) | Length(mm) | Weight(kg) |
| 1 | SSD-MG-5D2 | 127 | 450 | 8.2 |
| 2 | SSD-MG-9D2 | 140 | 690 | 16 |
| 3 | SSD-MG-9D2-1 | 130 | 810 | 16 |
| 4 | SSD-MG-20D2 | 140 | 1650 | 38 |
| 5 | SSD-MG-5D3 | 160 | 300 | 9 |
| 6 | SSD-MG-9D3 | 160 | 550 | 16 |
| 7 | SSD-MG-17D3 | 160 | 780 | 22 |
| 8 | SSD-MG-35D5 | 200 | 680 | 30 |
| 9 | SSD-MG-48D5 | 205 | 960 | 45 |
| 10 | SSD-MG-R50 | 160 | 480 | 13.5 |
| 11 | SSD-MG-R77 | 175 | 640 | 22 |
| 12 | SSD-MG-R100 | 175 | 710 | 25 |
| 13 | SSD-MG-R145 | 200 | 650 | 30 |
| 14 | SSD-MG-R273 | 175 | 1650 | 58 |
Note:
Please inform the magnesium alloy sacrificial anode specification, the required size and length of the cable when ordering.
Application:
Apply To Corrosion Protection In Low & High Potential Magnesium Hull Anode Used For Buried Pipeline.
