9D3 Cathodic Protection Anodes Prepackaged 160mm Magnesium Anode Bag
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Anode Assembly | Environmental Protection | Easily Recycled |
|---|---|---|---|
| Insulation Materials | PVC/PVC,XLPE/PVC,HMWPE | Electric Cable | 6 Mm2,10 Mm2 And 16 Mm2 |
| Fillings | Mixing 75%gypsum Powder,20%bentonite And 5%Na2504 | Electric Resistance | <0.001 |
| Connection Strength | 5 Times The Weight Of The Assembled Anodes | ||
| High Light | 9D3 Cathodic Protection Anodes Prepackaged,Cathodic Protection Anodes Prepackaged 160mm,160mm Magnesium Anode Bag |
||
Product Description
Recyclable Prepackaged Magnesium Anode Guarantee Construction Quality Of Corrosion Protection
Introduction:

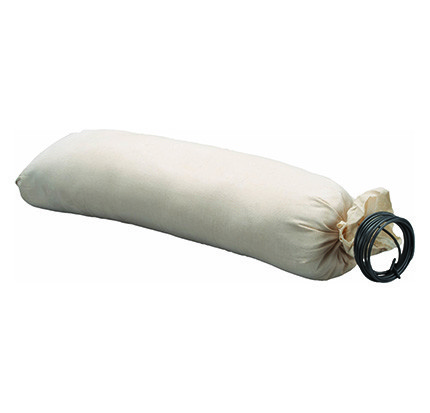

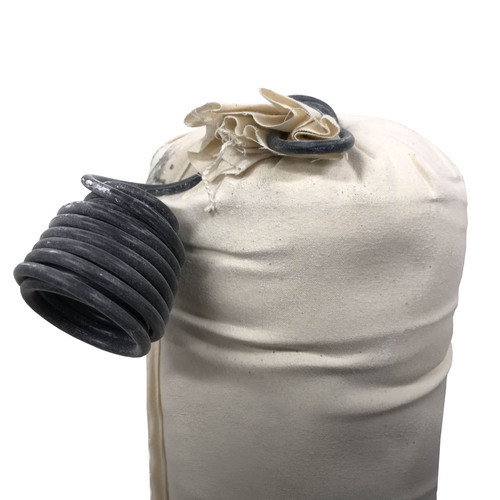

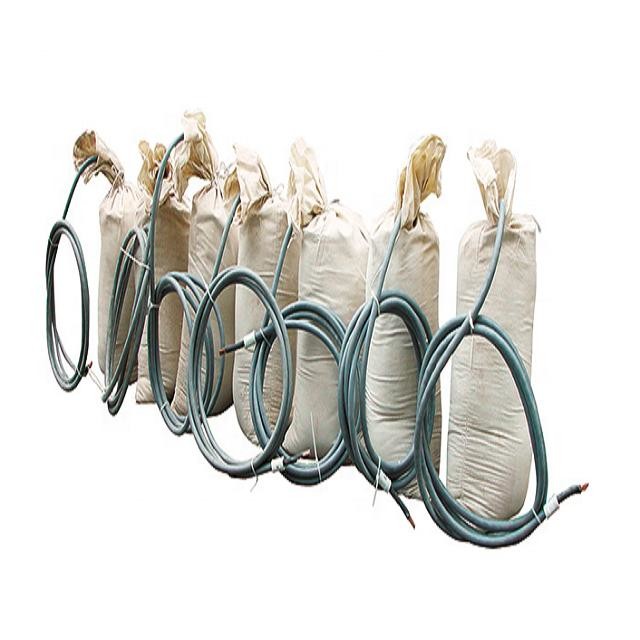

Make the construction of customers more convenient and meet customer needs. Set of magnesium alloy anodes, consisting of 1 sacrificial anode, a VV1*10mm2 cable of several meters, several kilograms of packing material, 1 cotton pocket, and 1 plastic woven bag.
The bare anode is first connected to the cable, the connection part is sealed with epoxy resin, and then filled with filler and packaged in a cotton bag.
Specification:
| Number | Model | Diameter (mm) | Length(mm) | Weight(kg) |
| 1 | SSD-MG-5D2 | 127 | 450 | 8.2 |
| 2 | SSD-MG-9D2 | 140 | 690 | 16 |
| 3 | SSD-MG-9D2-1 | 130 | 810 | 16 |
| 4 | SSD-MG-20D2 | 140 | 1650 | 38 |
| 5 | SSD-MG-5D3 | 160 | 300 | 9 |
| 6 | SSD-MG-9D3 | 160 | 550 | 16 |
| 7 | SSD-MG-17D3 | 160 | 780 | 22 |
| 8 | SSD-MG-35D5 | 200 | 680 | 30 |
| 9 | SSD-MG-48D5 | 205 | 960 | 45 |
| 10 | SSD-MG-R50 | 160 | 480 | 13.5 |
| 11 | SSD-MG-R77 | 175 | 640 | 22 |
| 12 | SSD-MG-R100 | 175 | 710 | 25 |
| 13 | SSD-MG-R145 | 200 | 650 | 30 |
| 14 | SSD-MG-R273 | 175 | 1650 | 58 |
Please inform the magnesium alloy sacrificial anode specification, the required size and length of the cable when ordering.
Features:
Magnesium alloy is an ideal sacrificial anode material because of its negative anode potential, large amount of electricity per unit mass and long service life. As an ideal sacrificial anode material, magnesium alloy also has the following characteristics
(1) Small specific gravity and negative potential
(2) High driving voltage for iron and low current efficiency
(3) Especially suitable for high resistivity medium
Application:
The magnesium alloy sacrificial anode set assembly is a new concept anode product supplemented by set accessories on the basis of the previous single magnesium alloy sacrificial anode in order to meet the high-rhythm and efficient construction requirements of engineering construction. Make the construction of customers more convenient, save time, and better meet customer needs.
Photos:
