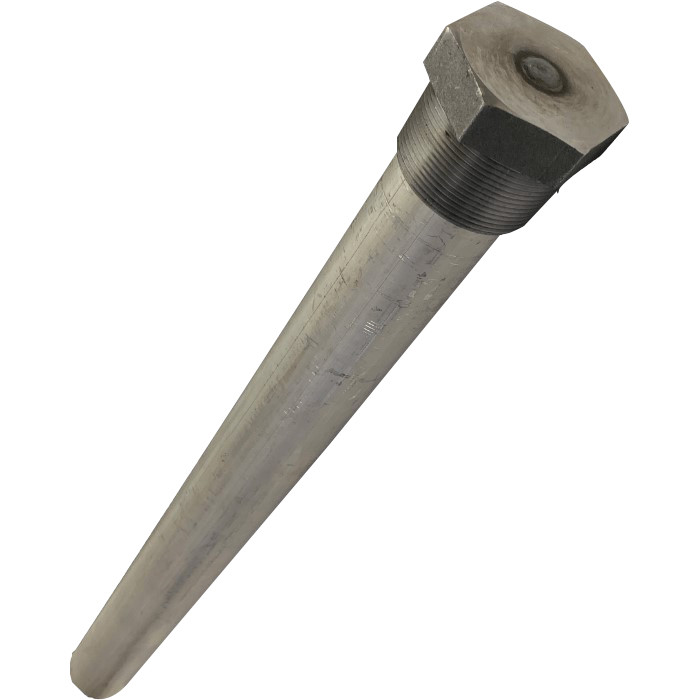

AZ31B Extruded Magnesium Anode Rod For Water Heater 0.05 Inch
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Magnesium Metal Rod Sacrificial Anode | Shape | Rod |
|---|---|---|---|
| Application | Water Heater | Material | Magnesium Alloy |
| Dimensions | Customer's Demands,Many | Chemical Composition | Al,Mn,Zn,Mg |
| Standard | High Quality | Color | Silver |
| High Light | AZ31B Extruded Magnesium Anode,Extruded Magnesium Anode 0.05 Inch,Magnesium Anode Rod For Water Heater 0.05 Inch |
||
Product Description
High Current Output Extruded Magnesium Anodes Widely Used Where Small Anode Diameters
Introduction:
Extruded magnesium anodes have high surface to length ratios in relation to cross-sectional dimensions. This allows these anodes to deliver higher current per weight than standard cast magnesium anodes. By delivering more current, extruded anodes can provide effective protection for structures buried in high-resistivity soils.
Features:
The extruded magnesium alloy anode rod adopts a continuous drawing production process. The surface of the product is smooth, without pores and slag inclusions, the potential is greater than 1.48V, the efficiency is greater than 55%, and the bar yield is over 98%.
Chemical composition %:
| Alloy | Al | Mn |
Zn (max) |
Ca (max) |
Si (max) |
Cu (max) |
Ni (max) |
Fe (max) |
Other Imp | |
| each | total | |||||||||
| AZ31B | 2.5-3.5 | 0.2-1.0 | 0.6-1.4 | 0.04 | 0.10 | 0.01 | 0.001 | 0.005 | --- | 0.30 |
| Mg-Mn | 0.01max | 0.5-1.3 | --- | --- | --- | 0.02 | 0.001 | 0.03 | 0.05 | 0.30 |
Extruded rod anodes size specification:
|
Diameter (inch) |
Core eccentric (inch) |
Core diameter (inch) |
Straightness (inch/2 ft length) |
Weight (1bs/inch) |
| 0.675-0.020 | 0.050 | 0.135 | 0.060 | 0.025 |
| 0.750-0.020 | 1/16 | 0.135 | 0.040 | 0.031 |
| 0.800-0.020 | 1/16 | 0.135 | 0.040 | 0.035 |
| 0.840-0.020 | 1/16 | 0.135 | 0.040 | 0.038 |
| 0.900-0.020 | 1/16 | 0.135 | 0.040 | 0.043 |
| 1.050-0.020 | 1/16 | 0.135 | 0.040 | 0.057 |
| 1.315-0.020 | 1/16 | 0.135 | 0.040 | 0.089 |
Application:
Extruded magnesium anode rods are used in various applications due to their different functions. These rods are very flexible and play a key role in diverting corrosive fluids away from the main module. They can be used for low ceilings and tight spaces.
Process flow:
1. Ore smelting (crude magnesium)
2. During the refining process of crude magnesium refining (magnesium ingot), the components are tested by the spectrometer in order to meet the national standard. The samples are reserved for two years for quality traceability.
3. Magnesium ingot casting rod (in the casting rod process, use the spectrometer to test the composition again, and record the furnace number for subsequent quality tracking)
4. Extrusion (the composition of the extrusion process remains unchanged)
5. Cut
6. Packaging
7. Shipping
Photos:
