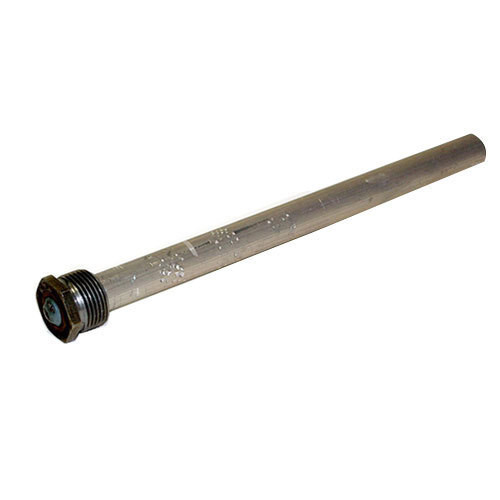

ASTM Magnesium Extruded Rod Anode Anti Corrosion Mg Mn
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Extruded Magnesium Anode | Shape | Rod |
|---|---|---|---|
| Material | Magnesium Alloy | Product Technology | Extruded Magnesium Anode |
| Usage | Anti-corrosion | Sample | Available |
| Application | Cathodic Protection,water Heater | Surface | Smooth |
| High Light | ASTM Magnesium Extruded Rod,Magnesium Extruded Rod Mg Mn,Rod Anode Anti Corrosion Mg Mn |
||
Product Description
55% Current Efficiency Extruded Magnesium Anode For Cathodic Protection
Introduction:
Extruded magnesium anodes have a high surface to length ratio in relation to cross-sectional size. This allows these anodes to deliver higher current per weight than standard cast magnesium anodes. By delivering more current, extruded anodes can provide effective protection for structures buried in high-resistivity soils.
Features:
The extruded magnesium alloy anode rod adopts a continuous drawing production process. The surface of the product is smooth, without pores and slag inclusions, the potential is greater than 1.48V, the efficiency is greater than 55%, and the bar yield is over 98%.
Chemical composition %:
| Alloy | Al | Mn |
Zn (max) |
Ca (max) |
Si (max) |
Cu (max) |
Ni (max) |
Fe (max) |
Other Imp | |
| each | total | |||||||||
| AZ31B | 2.5-3.5 | 0.2-1.0 | 0.6-1.4 | 0.04 | 0.10 | 0.01 | 0.001 | 0.005 | --- | 0.30 |
| Mg-Mn | 0.01max | 0.5-1.3 | --- | --- | --- | 0.02 | 0.001 | 0.03 | 0.05 | 0.30 |
Specification:
|
Diameter (inch) |
Core eccentric (inch) |
Core diameter (inch) |
Straightness (inch/2 ft length) |
Weight (1bs/inch) |
| Magnesium Extruded rod | ||||
| 0.675-0.020 | 0.050 | 0.135 | 0.060 | 0.025 |
| 0.750-0.020 | 1/16 | 0.135 | 0.040 | 0.031 |
| 0.800-0.020 | 1/16 | 0.135 | 0.040 | 0.035 |
| 0.840-0.020 | 1/16 | 0.135 | 0.040 | 0.038 |
| 0.900-0.020 | 1/16 | 0.135 | 0.040 | 0.043 |
| 1.050-0.020 | 1/16 | 0.135 | 0.040 | 0.057 |
| 1.315-0.020 | 1/16 | 0.135 | 0.040 | 0.089 |
Process flow:
1. Ore smelting (crude magnesium)
2. During the refining process of crude magnesium refining (magnesium ingot), the components are tested by the spectrometer in order to meet the national standard. The samples are reserved for two years for quality tracing.
3. Magnesium ingot casting rod (in the casting rod process, use the spectrometer to test the composition again, and record the heat number. For subsequent quality tracking)
4. Extrusion (the composition of the extrusion process remains unchanged)
5. Cut
6. Packaging
7. Shipping
Application:
Extruded magnesium anode rods are used in a variety of applications due to their different functions. These rods are very flexible and play a critical role in diverting corrosive fluids away from the main module. They can be used for low ceilings and compact spaces.
Photos:
