20D2 Prepackaged Magnesium Anode 38kg Sacrificial Anode Protection Mg
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Anode Assembly | Environmental Protection | Easily Recycled |
|---|---|---|---|
| Insulation Materials | PVC/PVC,XLPE/PVC,HMWPE | Electric Cable | 6 Mm2,10 Mm2 And 16 Mm2 |
| Fillings | Mixing 75%gypsum Powder,20%bentonite And 5%Na2504 | Electric Resistance | <0.001 |
| Connection Strength | 5 Times The Weight Of The Assembled Anodes | ||
| High Light | 20D2 Prepackaged Magnesium Anode,Prepackaged Magnesium Anode 38kg,Sacrificial Anode Protection mg |
||
Product Description
Connection With Cable Prepackaged Magnesium Anode Meet The Construction Requirements
Introduction:
Sacrificial magnesium alloy anodes can be supplied to customers after they are assembled. The bare anode is first connected to the cable and the connection points are sealed with epoxy. The assembled product is then packaged in cotton bags along with special fillers.
Specification:
| Number | Model | Diameter (mm) | Length(mm) | Weight(kg) |
| 1 | SSD-MG-5D2 | 127 | 450 | 8.2 |
| 2 | SSD-MG-9D2 | 140 | 690 | 16 |
| 3 | SSD-MG-9D2-1 | 130 | 810 | 16 |
| 4 | SSD-MG-20D2 | 140 | 1650 | 38 |
| 5 | SSD-MG-5D3 | 160 | 300 | 9 |
| 6 | SSD-MG-9D3 | 160 | 550 | 16 |
| 7 | SSD-MG-17D3 | 160 | 780 | 22 |
| 8 | SSD-MG-35D5 | 200 | 680 | 30 |
| 9 | SSD-MG-48D5 | 205 | 960 | 45 |
| 10 | SSD-MG-R50 | 160 | 480 | 13.5 |
| 11 | SSD-MG-R77 | 175 | 640 | 22 |
| 12 | SSD-MG-R100 | 175 | 710 | 25 |
| 13 | SSD-MG-R145 | 200 | 650 | 30 |
| 14 | SSD-MG-R273 | 175 | 1650 | 58 |
Please inform the magnesium alloy sacrificial anode specification, the required size and length of the cable when ordering.
Composition:
A complete set of magnesium sacrificial anode, consisting of 1 magnesium sacrificial anode ingot, a VV-10mm2 cable 3 meters, a packing material of 50kg, a cotton pocket, and a plastic woven bag. That is, there is 1 magnesium sacrificial anode ingot in the cotton pocket, and 1 VV-10mm2 cable 3 meters is welded on the iron core. The welding place is insulated and covered with heat shrinkable tube. 50kg of packing material is evenly distributed around the magnesium sacrificial anode ingot. 1 plastic woven bag for cotton pocket jacket.
Features:
Magnesium alloy is an ideal sacrificial anode material because of its negative anode potential, large electricity generation per unit mass and long service life. As an ideal sacrificial anode material, magnesium alloy also has the following characteristics:
(1) Small specific gravity and negative potential
(2) High driving voltage for iron and low current efficiency
(3) Especially suitable for high resistivity medium

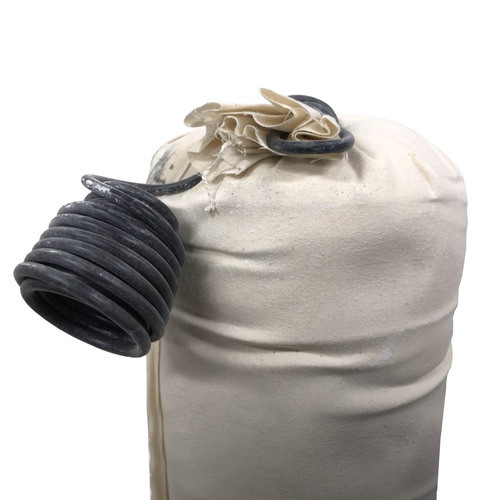

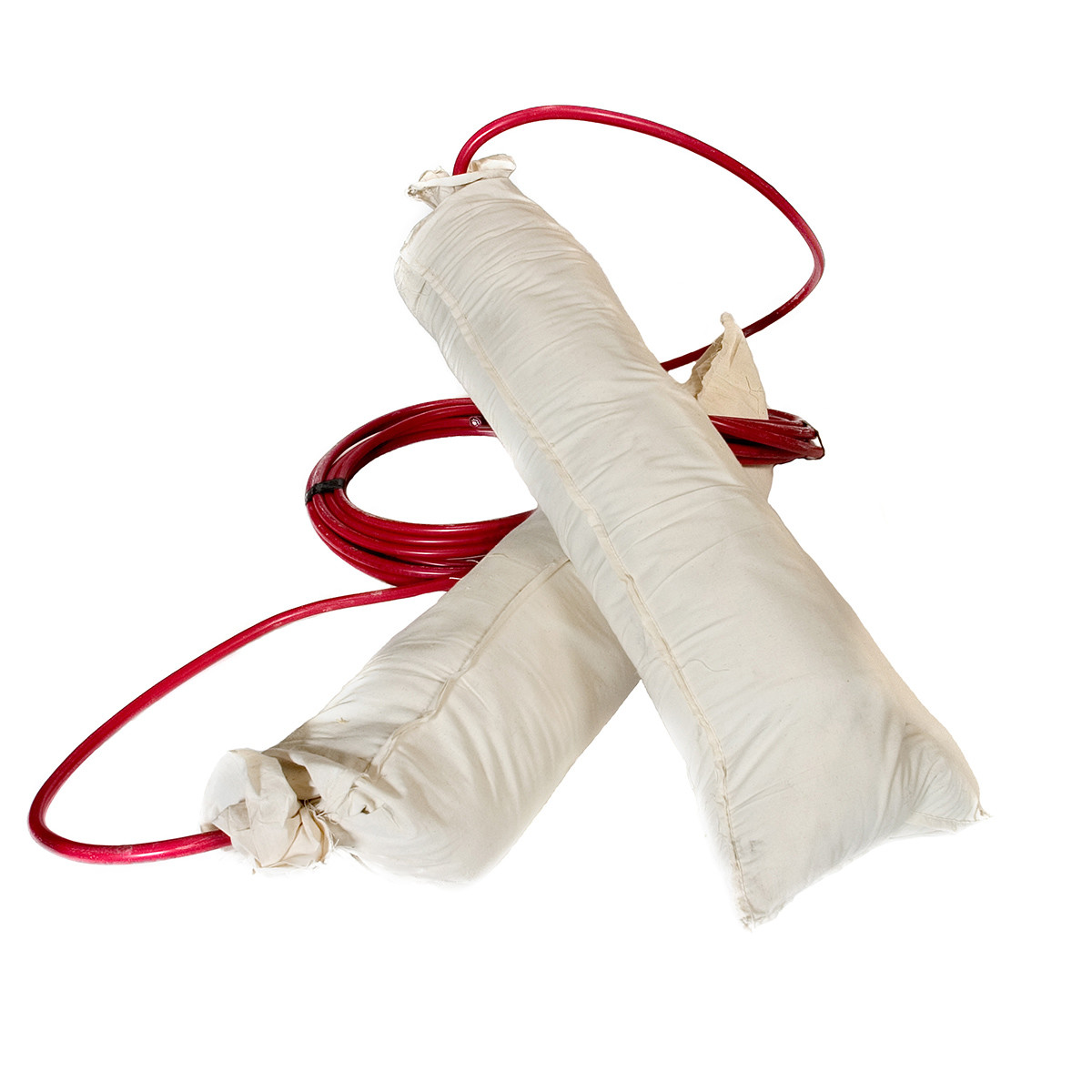

Photos:
