110kgs Magnesium Ribbon Anodes Aluminum Magnesium Alloy For Pipeline

  • 110kgs Magnesium Ribbon Anodes Aluminum Magnesium Alloy For Pipeline
Place of Origin CHINA
Certification USA: G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Magnesium Strip Anode Material Magnesium Alloy
Shape Ribbon / Strip Length Adjustable
Feature Low Potential Standard ASTM97-98
Adventage Better Comprehensive Properties Application Cathodic Protection
High Light

110kgs Magnesium Ribbon Anodes

,

Magnesium Ribbon Anodes For Pipeline

,

Aluminum Magnesium Alloy ribbon For Pipeline
Leave a Message
Product Description

Higher Current Output Magnesium Ribbon Anode Suitable For Cathodic Protection



Introduction:



The magnesium ribbon sacrificial anode is produced with high quality and high purity magnesium. The product conforms to the ASTM97-98 standard and is extruded by a specific process. The magnesium ribbon sacrificial anode (abbreviation: magnesium ribbon anode) has excellent electrochemical performance, and the shape of the magnesium ribbon anode is flat, adjustable in length, easy to bend. This product is used for high resistivity environment, protection of pipeline in casing, temporary cathodic protection of pipeline, protection of storage tank and pipeline network, and grounding grid against strong electric interference.



Specification:



Section (inch)

3/8 x 3/4 + 0.015(1/8" corner)

Diameter of core (inch)

0.135

Core eccentric (inch)

<1/16

Weight (lbs/feet)

0.243

Standard coil length (feet)

1000

Coil weight (lbs)

243 (110kgs)



Advantages:



From raw materials - semi-continuous magnesium alloy rods - extrusion - forming, the factory is independently produced and the internal composition is controllable. Extruded ribbon magnesium anode, very flexible. Due to the higher area-to-weight ratio of the magnesium ribbon, it can provide higher current output than other anodes.



Chemical composition %:



Mg Mn Zn Al Cu Ni Fe Si Impurities
(max) (max) (max) (max) (max) each total
Balance 0.50-1.3 / 0.01 0.02 0.001 0.03 / 0.05 0.3
Balance 0.20min 0.7-1.3 2.5-3.5 0.01 0.001 0.002 0.02 0.05 0.3



The electrochemical performance of :



Open voltage

(-V)

Closed voltage

(-V)

Actual capacity

(A.h/kg)

Efficiency

(%)
1.50-1.55 1.45-1.50 1230min

55min



Features:



The magnesium strip sacrificial anode is produced with high-quality and high-purity magnesium. The product meets the standards of ASTM97-98, GB/T17731-2017 "Magnesium Alloy Sacrificial Anode", SY/T0019-97 "Design Specification for Cathodic Protection of Buried Steel Pipe Sacrificial Anode", extrusion Magnesium ribbon anodes have a larger area-to-mass ratio, so they can produce higher currents than conventional cast anodes. These characteristics can make it unique in cathodic protection engineering, especially in long-distance pipelines, crossing pipelines, large storage pipelines, crossing pipeline sections, large storage tank bottoms, grounding grids for lightning protection, and short-term composite anodes. Anode etc.



Photos:

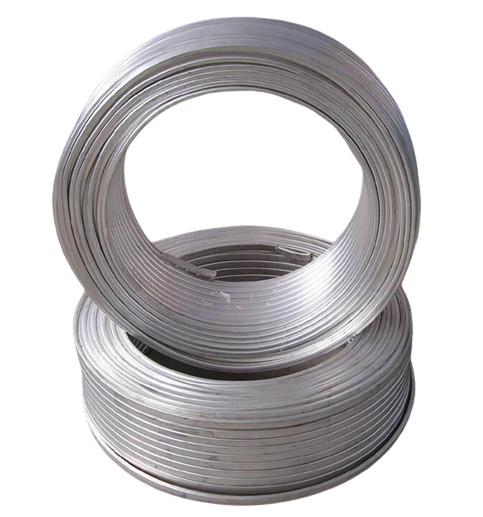

110kgs Magnesium Ribbon Anodes Aluminum Magnesium Alloy For Pipeline 0

Tags:

Magnesium Ribbon Anode 0.135 Inch

ASTM Magnesium Ribbon Anode

Az91 Magnesium Ribbon Anode
