ASTM B843 Ribbon Magnesium Metal Alloy Anode For Underground Cables

  • ASTM B843 Ribbon Magnesium Metal Alloy Anode For Underground Cables
  • ASTM B843 Ribbon Magnesium Metal Alloy Anode For Underground Cables
Place of Origin CHINA
Certification USA : G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keyword Magnesium Ribbon Anode Material Magnesium Alloy
Chemical Composition Al,Mn,Zn,Mg Shape Ribbon
Technical Standard GB/T 17731-2015 Application Cathodic Protection
High Light

ASTM B843 Ribbon Magnesium

,

Ribbon Magnesium anode

,

Magnesium Metal Alloy Anode For Underground Cables
Leave a Message
Product Description

ASTM B843 Magnesium Ribbon Anode Used For Underground Cables Protection



Introduction:



The magnesium ribbon sacrificial anode is produced with high quality and high purity magnesium. The product conforms to the ASTM97-98 standard and is extruded by a specific process. The magnesium ribbon sacrificial anode (referred to as: magnesium ribbon anode) has excellent electrochemical performance. The shape of the magnesium ribbon anode Flat, adjustable in length, easy to bend. This product is used for high resistivity environment, protection of pipelines in casings, temporary cathodic protection of pipelines, protection of storage tanks and pipeline networks, and grounding grids against strong electrical interference.



Chemical composition %:



Mg Mn Zn Al Cu Ni Fe Si Impurities
(max) (max) (max) (max) (max) each total
Balance 0.50-1.3 / 0.01 0.02 0.001 0.03 / 0.05 0.3
Balance 0.20min 0.7-1.3 2.5-3.5 0.01 0.001 0.002 0.02 0.05 0.3



Specification:



Section (inch)

3/8 x 3/4 + 0.015(1/8" corner)

Diameter of core (inch)

0.135

Core eccentric (inch)

<1/16

Weight (lbs/feet)

0.243

Standard coil length (feet)

1000

Coil weight (lbs)

243 (110kgs)



Advantages:



From raw materials - semi-continuous magnesium alloy rods - extrusion - forming, the factory is independently produced and the internal composition is controllable. Extruded ribbon magnesium anode, very flexible. Due to the higher area-to-weight ratio of the magnesium ribbon, it can provide higher current output than other anodes.



Application:



Magnesium Ribbon Anode used in high resistivity environments, protection of pipelines in casings, temporary cathodic protection of pipelines, protection of storage tanks and pipe networks, grounding grids to prevent strong electrical interference, etc.



Photos:

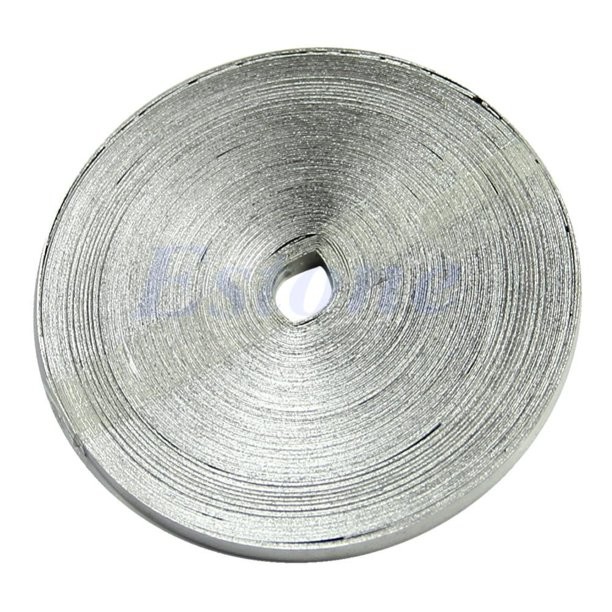

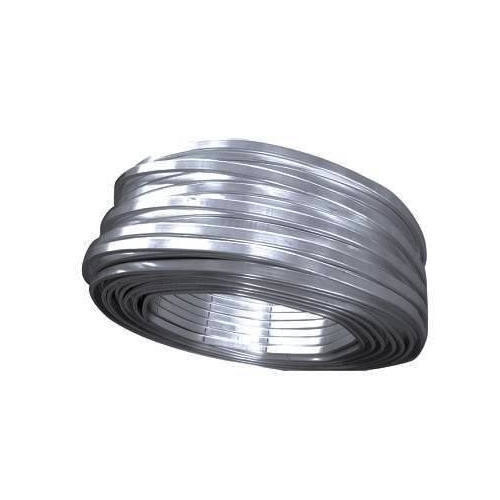

ASTM B843 Ribbon Magnesium Metal Alloy Anode For Underground Cables 0
