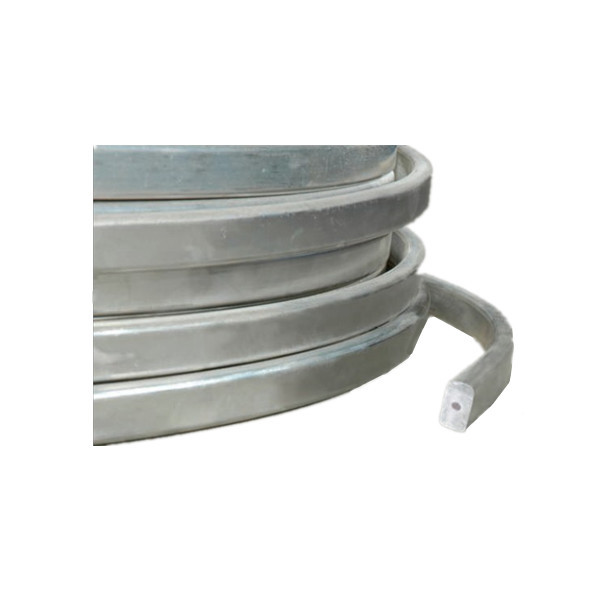

ASTM Magnesium Ribbon Anode 0.135 Inch Extruded Magnesium Anodes
| Place of Origin | CHINA |
|---|---|
| Certification | USA : G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keyword | Magnesium Ribbon Anode | Material | Magnesium Alloy |
|---|---|---|---|
| Chemical Composition | Al,Mn,Zn,Mg | Shape | Ribbon |
| Technical Standard | GB/T 17731-2015 | Application | Cathodic Protection |
| High Light | ASTM Magnesium Ribbon Anode,Magnesium Ribbon Anode 0.135 Inch,0.135 Inch Extruded Magnesium Anodes |
||
Product Description
GB/T 17731-2015 Magnesium Ribbon Anode Used For Crossing Pipeline Sections
Introduction:
The magnesium ribbon sacrificial anode is produced with high quality and high purity magnesium. The product conforms to the ASTM97-98 standard and is extruded by a specific process. The magnesium ribbon sacrificial anode (referred to as: magnesium ribbon anode) has excellent electrochemical performance. The shape of the magnesium ribbon anode is flat, adjustable in length, easy to bend. This product is used for high resistivity environment, protection of pipelines in casings, temporary cathodic protection of pipelines, protection of storage tanks and pipeline networks, and grounding grids against strong electrical interference.
Chemical composition %:
| Mg | Mn | Zn | Al | Cu | Ni | Fe | Si | Impurities | |
| (max) | (max) | (max) | (max) | (max) | each | total | |||
| Balance | 0.50-1.3 | / | 0.01 | 0.02 | 0.001 | 0.03 | / | 0.05 | 0.3 |
| Balance | 0.20min | 0.7-1.3 | 2.5-3.5 | 0.01 | 0.001 | 0.002 | 0.02 | 0.05 | 0.3 |
Specification:
|
Section (inch) |
3/8 x 3/4 + 0.015(1/8" corner) |
|
|
Diameter of core (inch) |
0.135 |
|
|
Core eccentric (inch) |
<1/16 |
|
|
Weight (lbs/feet) |
0.243 |
|
|
Standard coil length (feet) |
1000 |
|
|
Coil weight (lbs) |
243 (110kgs) |
|
Features:
A: The one-time investment cost is low, and basically no maintenance cost is required during operation
B: The utilization rate of the protection current is high, and no over-protection will occur
C: No interference to adjacent underground metal facilities, suitable for long-distance pipelines without power supply, and small-scale decentralized pipeline protection
D: It has the function of both grounding and protection
E: The construction technology is simple, and no special professional maintenance management is usually required.
Application:
Magnesium Ribbon Anode is used in high resistivity environments, protection of pipelines in casings, temporary cathodic protection of pipelines, protection of storage tanks and pipe networks, grounding grids to prevent strong electrical interference, etc.
Photos:
