Az80 Mg Zn Alloy Ribbon Aluminium Magnesium Silicon Alloy Anode Astm

  • Az80 Mg Zn Alloy Ribbon Aluminium Magnesium Silicon Alloy Anode Astm
  • Az80 Mg Zn Alloy Ribbon Aluminium Magnesium Silicon Alloy Anode Astm
Place of Origin CHINA
Certification USA : G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keyword Magnesium Ribbon Anode Material Magnesium Alloy
Chemical Composition Al,Mn,Zn,Mg Shape Ribbon
Technical Standard GB/T 17731-2015 Application Cathodic Protection
High Light

Az80 Mg Zn Alloy Ribbon

,

Mg Zn Alloy Ribbon astm

,

Ribbon Aluminium Magnesium Silicon Alloy
Leave a Message
Product Description

Higher Area -To - Weight Ratio Magnesium Ribbon Anode Used For Cathodic Protection



Introduction:



The ribbon anode is flat in shape, adjustable in length, easy to bend, has good anti-corrosion performance, does not need external DC power supply, runs automatically after installation, requires no maintenance, requires less floor space, low engineering costs, and does not interfere with the external environment.



Features:



The magnesium strip sacrificial anode is produced with high-quality and high-purity magnesium. The product conforms to ASTM97-98, GB/T17731-2017 "Magnesium Alloy Sacrificial Anode", SY/T0019-97 "Design Specification for Cathodic Protection of Buried Steel Pipeline Sacrificial Anode", extrusion Magnesium ribbon anodes have a larger area-to-mass ratio, so they are able to generate higher currents than conventional cast anodes. These characteristics can make it unique in cathodic protection engineering, especially in long-distance pipelines, crossing pipelines, large storage pipelines, crossing pipeline sections, large storage tank bottoms, grounding grids for lightning protection, and short-term composite anodes. Anode etc.



Chemical composition %:



Mg Mn Zn Al Cu Ni Fe Si Impurities
(max) (max) (max) (max) (max) each total
Balance 0.50-1.3 / 0.01 0.02 0.001 0.03 / 0.05 0.3
Balance 0.20min 0.7-1.3 2.5-3.5 0.01 0.001 0.002 0.02 0.05 0.3



Specification:



Section (inch)

3/8 x 3/4 + 0.015(1/8" corner)

Diameter of core (inch)

0.135

Core eccentric (inch)

<1/16

Weight (lbs/feet)

0.243

Standard coil length (feet)

1000

Coil weight (lbs)

243 (110kgs)



Application:



Magnesium tape is mainly suitable for being coiled by a protective body to protect oil tanks or other steel structures in high-resistivity electrolytes, or surfaces with narrow construction spaces, and high-resistivity soils, fresh water and other media.

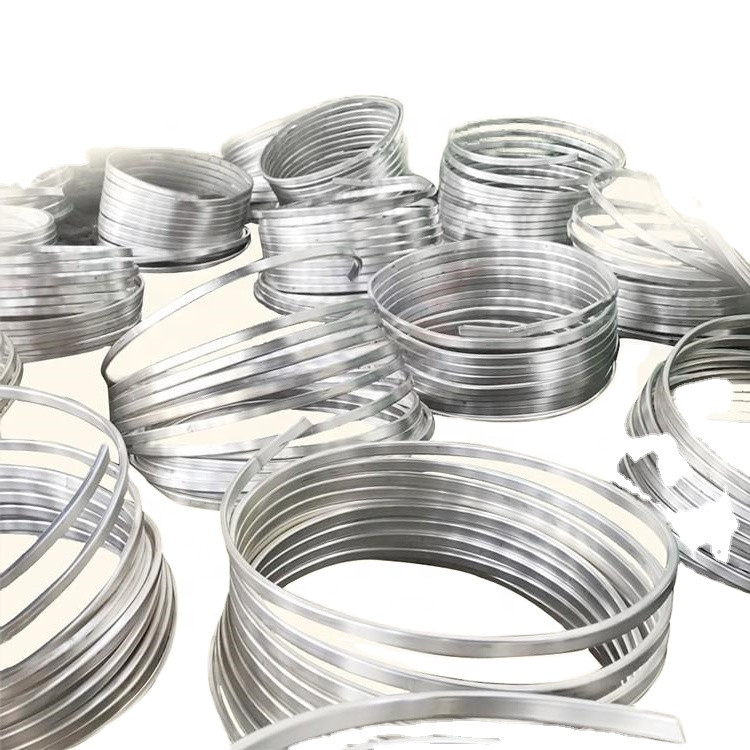

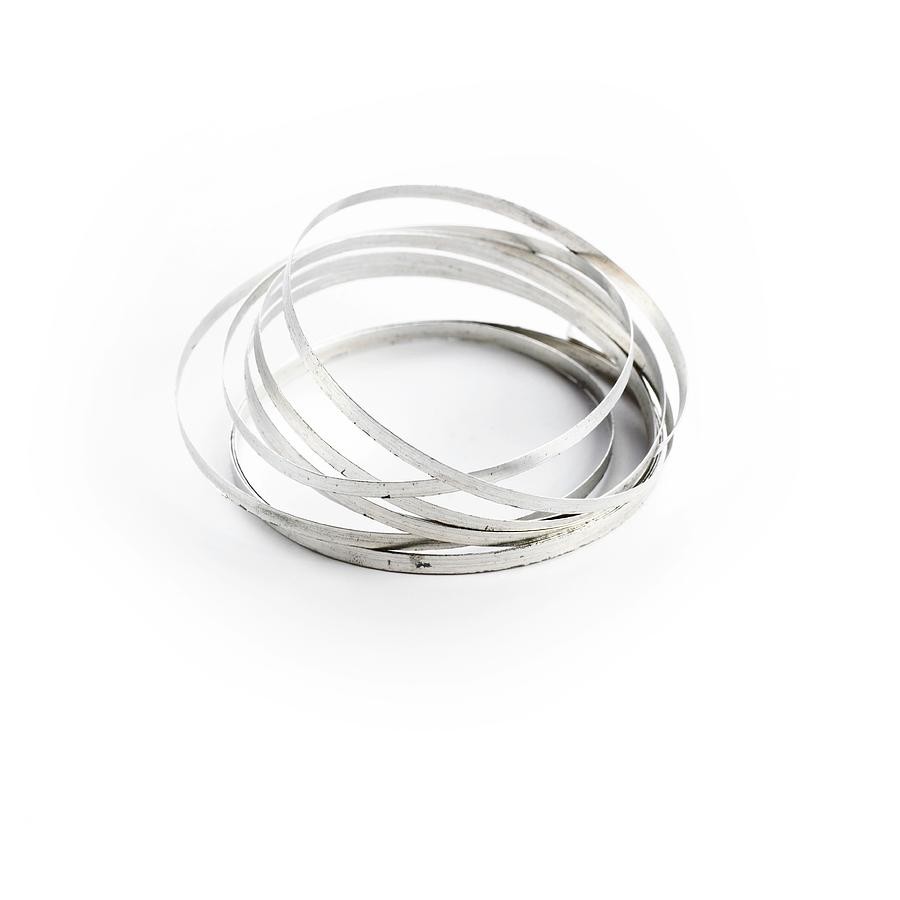

Photos:



Az80 Mg Zn Alloy Ribbon Aluminium Magnesium Silicon Alloy Anode Astm 0
