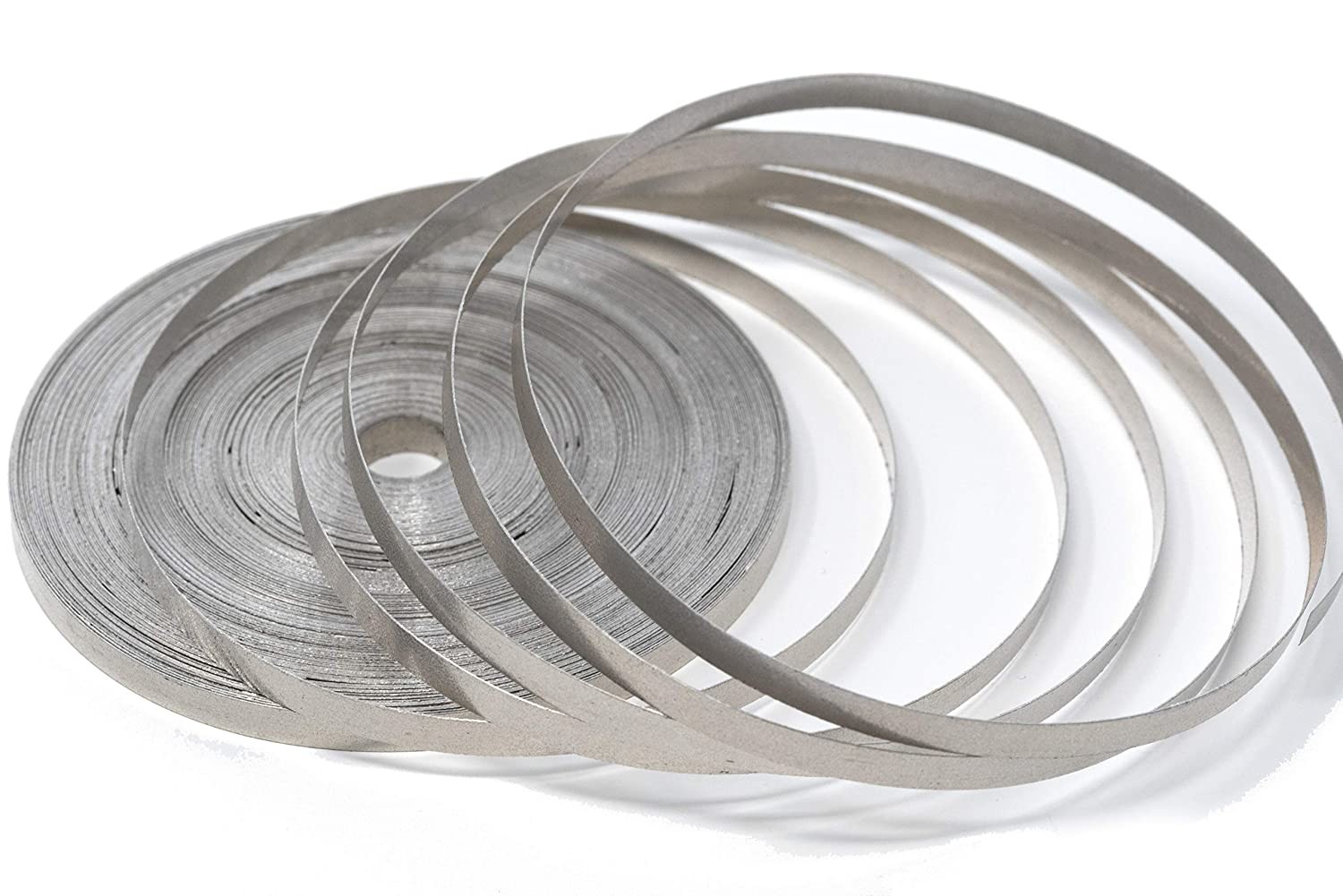

Low Potential Magnesium Ribbon Anode Az31b
| Place of Origin | CHINA |
|---|---|
| Certification | USA: G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | Magnesium Strip Anode | Material | Magnesium Alloy |
|---|---|---|---|
| Shape | Ribbon / Strip | Length | Adjustable |
| Feature | Low Potential | Standard | ASTM97-98 |
| Adventage | Better Comprehensive Properties | Application | Cathodic Protection |
| Highlight | Magnesium Ribbon Anode Az31b,Low Potential Magnesium Ribbon Anode,Az31b Magnesium Alloy ribbon ASTM |
||
Product Description
Low Potential Magnesium Ribbon Anode For Cathodic Protection Of High Resistivity Soil
Introduction:
Magnesium strip is suitable for cathodic protection of high resistivity soil, fresh water and special parts with narrow space. Such as soil or fresh water long-distance pipelines, the inner wall of buried pipeline casings, large storage tanks and pipeline networks, and underground cables.
Specification:
|
Section (inch) |
3/8 x 3/4 + 0.015(1/8" corner) |
|
|
Diameter of core (inch) |
0.135 |
|
|
Core eccentric (inch) |
<1/16 |
|
|
Weight (lbs/feet) |
0.243 |
|
|
Standard coil length (feet) |
1000 |
|
|
Coil weight (lbs) |
243 (110kgs) |
|
Chemical composition %:
| Mg | Mn | Zn | Al | Cu | Ni | Fe | Si | Impurities | |
| (max) | (max) | (max) | (max) | (max) | each | total | |||
| Balance | 0.50-1.3 | / | 0.01 | 0.02 | 0.001 | 0.03 | / | 0.05 | 0.3 |
| Balance | 0.20min | 0.7-1.3 | 2.5-3.5 | 0.01 | 0.001 | 0.002 | 0.02 | 0.05 | 0.3 |
The electrochemical performance of :
|
Open voltage (-V) |
Closed voltage (-V) |
Actual capacity (A.h/kg) |
Efficiency (%) |
| 1.50-1.55 | 1.45-1.50 | 1230min |
55min |
Features:
The magnesium strip sacrificial anode is produced with high-quality and high-purity magnesium. The product meets the standards of ASTM97-98, GB/T17731-2017 "Magnesium Alloy Sacrificial Anode", SY/T0019-97 "Design Specification for Cathodic Protection of Buried Steel Pipe Sacrificial Anode", extrusion Magnesium ribbon anodes have a larger area-to-mass ratio, so they can produce higher currents than conventional cast anodes. These characteristics can make it unique in cathodic protection engineering, especially in long-distance pipelines, crossing pipelines, large storage pipelines, crossing pipeline sections, large storage tank bottoms, grounding grids for lightning protection, and short-term composite anodes. Anode etc.
Scope of application:
It is used for high resistivity environment, protection of pipelines in casings, temporary cathodic protection of pipelines, protection of storage tanks and pipeline networks, grounding grids against strong electrical interference, etc.

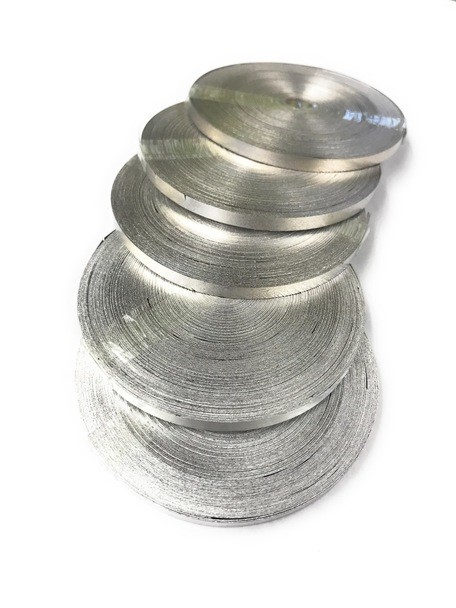

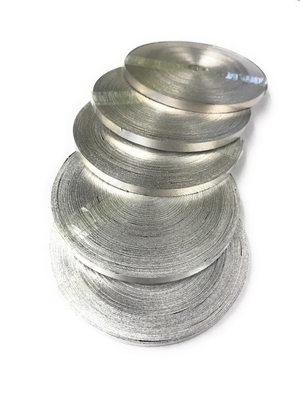

Photos:
