Az31b Magnesium Ribbon Anode Az91 Magnesium Alloy Strip G97
| Place of Origin | CHINA |
|---|---|
| Certification | USA : G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keyword | Magnesium Ribbon Anode | Material | Magnesium Alloy |
|---|---|---|---|
| Chemical Composition | Al,Mn,Zn,Mg | Shape | Ribbon |
| Technical Standard | GB/T 17731-2015 | Application | Cathodic Protection |
| High Light | Az31b Magnesium Ribbon Anode,Magnesium Ribbon Anode Az91,Az91 Magnesium Alloy Strip |
||
Product Description
Long Life Magnesium Ribbon Anode Used For Narrow Space Cathodic Protection
Introduction:
Magnesium strips are suitable for cathodic protection of high resistivity soils, fresh water and special parts with narrow spaces. Such as long-distance pipelines in soil or fresh water, inner walls of buried pipeline casings, large storage tanks and pipeline networks, and underground cables.
Chemical composition %:
| Mg | Mn | Zn | Al | Cu | Ni | Fe | Si | Impurities | |
| (max) | (max) | (max) | (max) | (max) | each | total | |||
| Balance | 0.50-1.3 | / | 0.01 | 0.02 | 0.001 | 0.03 | / | 0.05 | 0.3 |
| Balance | 0.20min | 0.7-1.3 | 2.5-3.5 | 0.01 | 0.001 | 0.002 | 0.02 | 0.05 | 0.3 |
Specification:
|
Section (inch) |
3/8 x 3/4 + 0.015(1/8" corner) |
|
|
Diameter of core (inch) |
0.135 |
|
|
Core eccentric (inch) |
<1/16 |
|
|
Weight (lbs/feet) |
0.243 |
|
|
Standard coil length (feet) |
1000 |
|
|
Coil weight (lbs) |
243 (110kgs) |
|
Features:
These characteristics can make it have a unique application in cathodic protection engineering, especially in the short-term of long-distance pipelines, crossing pipelines, large storage pipelines, crossing pipe sections, large storage tank bottoms, grounding grids for lightning protection, and composite anodes. Magnesium belts such as anodes are mainly suitable for the coiled body to be protected, the surface with narrow construction space, and the medium of high resistivity soil, fresh water and other media.
Application:
Magnesium tape is mainly suitable for being coiled by a protective body to protect oil tanks or other steel structures in high-resistivity electrolytes, or surfaces with narrow construction spaces, and high-resistivity soils, fresh water and other media.

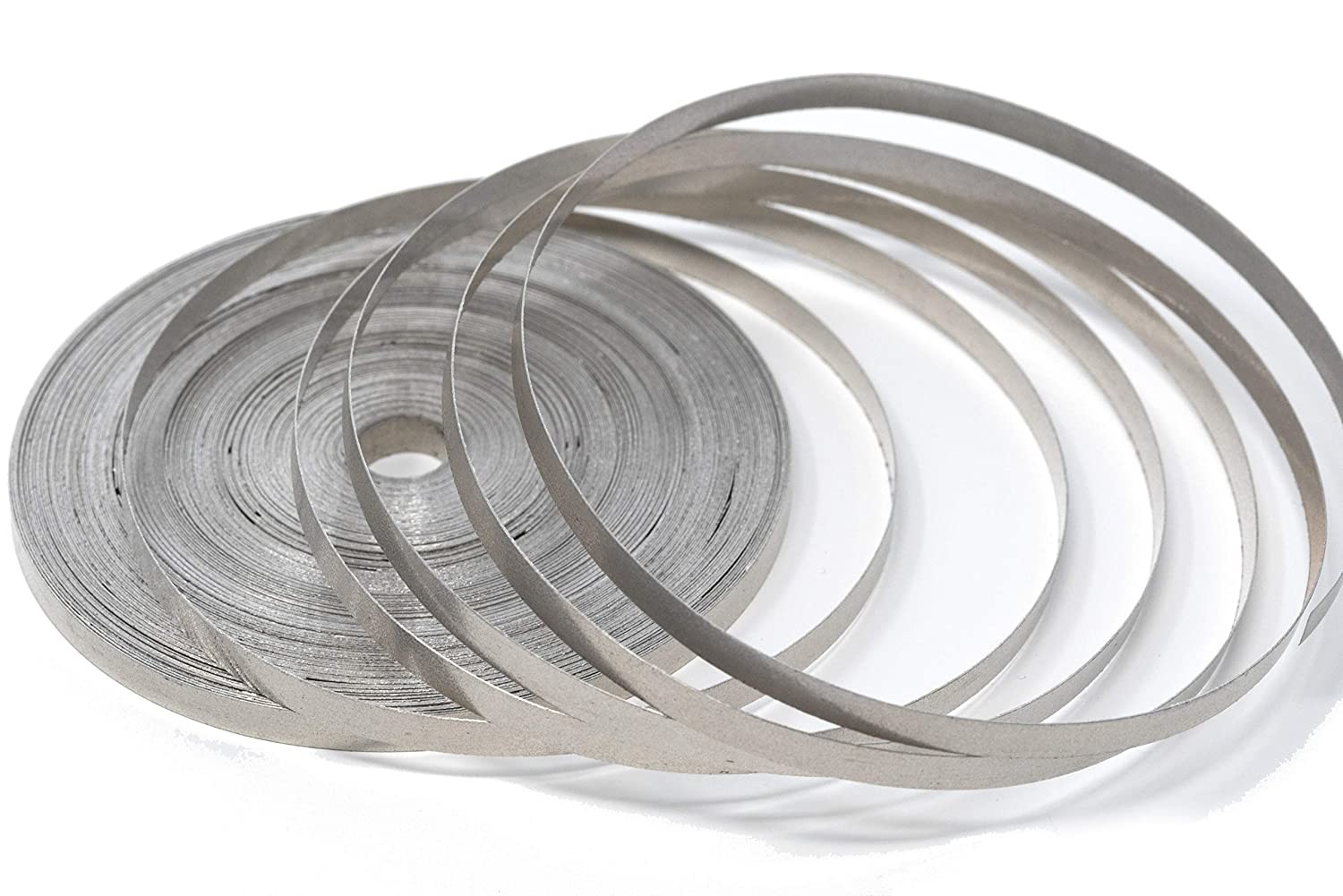

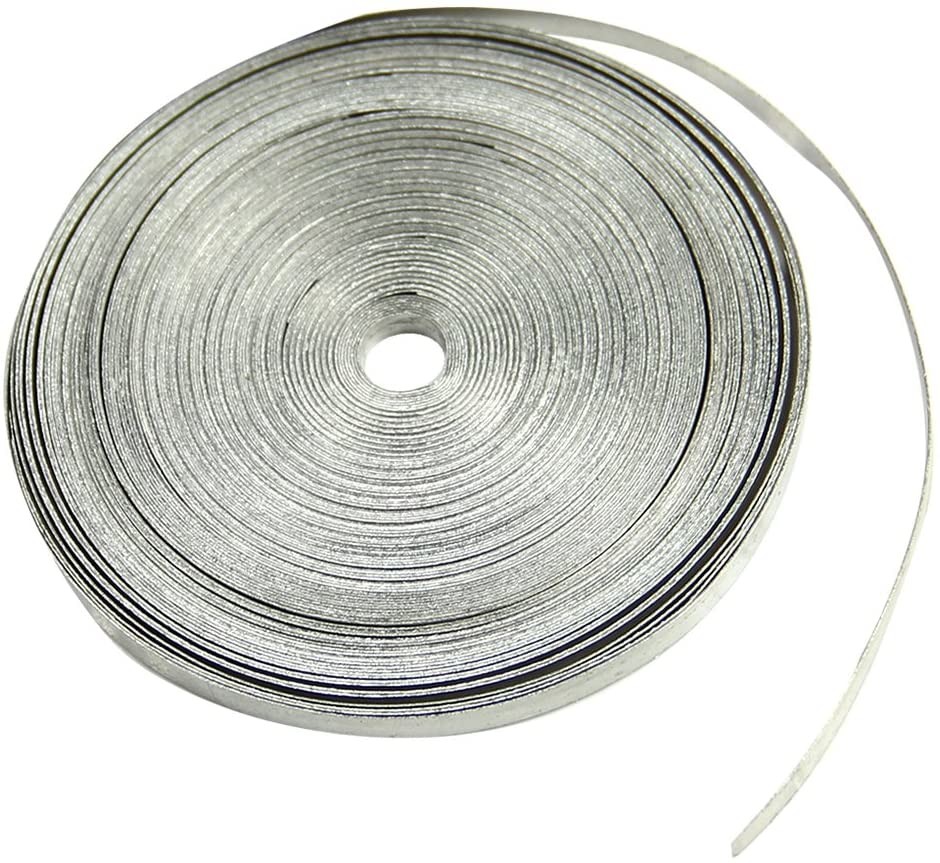

Photos:
