Az91 Magnesium Ribbon Anode ASTM Magnesium Silicon Alloy Strip
| Place of Origin | CHINA |
|---|---|
| Certification | USA : G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keyword | Magnesium Ribbon Anode | Material | Magnesium Alloy |
|---|---|---|---|
| Chemical Composition | Al,Mn,Zn,Mg | Shape | Ribbon |
| Technical Standard | GB/T 17731-2015 | Application | Cathodic Protection |
| High Light | Az91 Magnesium Ribbon Anode,Magnesium Ribbon Anode ASTM,ASTM Magnesium Silicon Alloy Strip |
||
Product Description
GB/T 17731-2015 Magnesium Ribbon Anode Used For Large Storage Tanks Protection
Introduction:
The magnesium strip sacrificial anode is produced with high-quality and high-purity magnesium. The product conforms to ASTM97-98, GB/T17731-2017 "Magnesium Alloy Sacrificial Anode", SY/T0019-97 "Design Specification for Cathodic Protection of Buried Steel Pipeline Sacrificial Anode", extrusion Magnesium ribbon anodes have a larger area-to-mass ratio, so they can produce higher currents than conventional cast anodes. These characteristics can make it unique in cathodic protection engineering, especially in long-distance pipelines, crossing pipelines, large storage pipelines, crossing pipe sections, large storage tank bottoms, grounding grids for lightning protection, and short-term composite anodes Anode etc.
Specification:
|
Section (inch) |
3/8 x 3/4 + 0.015(1/8" corner) |
|
|
Diameter of core (inch) |
0.135 |
|
|
Core eccentric (inch) |
<1/16 |
|
|
Weight (lbs/feet) |
0.243 |
|
|
Standard coil length (feet) |
1000 |
|
|
Coil weight (lbs) |
243 (110kgs) |
|
Chemical composition %:
| Mg | Mn | Zn | Al | Cu | Ni | Fe | Si | Impurities | |
| (max) | (max) | (max) | (max) | (max) | each | total | |||
| Balance | 0.50-1.3 | / | 0.01 | 0.02 | 0.001 | 0.03 | / | 0.05 | 0.3 |
| Balance | 0.20min | 0.7-1.3 | 2.5-3.5 | 0.01 | 0.001 | 0.002 | 0.02 | 0.05 | 0.3 |
Main performance:
The ribbon anode is flat in shape, adjustable in length, easy to bend, has good anti-corrosion performance, does not require external DC power supply, runs automatically after installation, requires no maintenance, requires less floor space, low engineering costs, and does not cause any interference with the external environment.

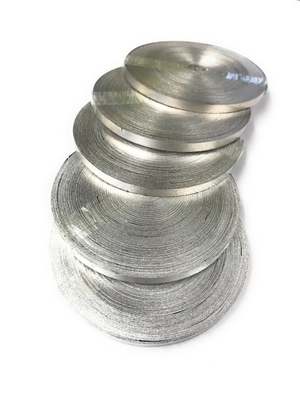

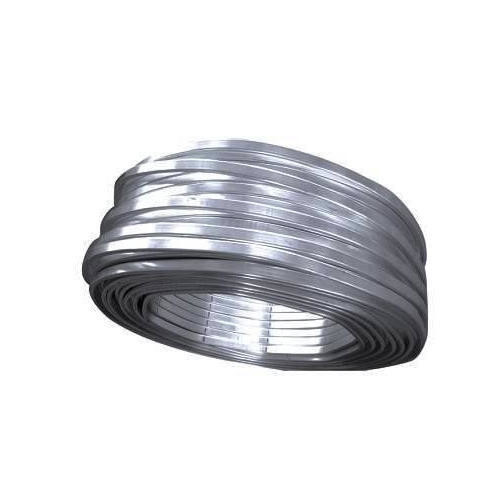

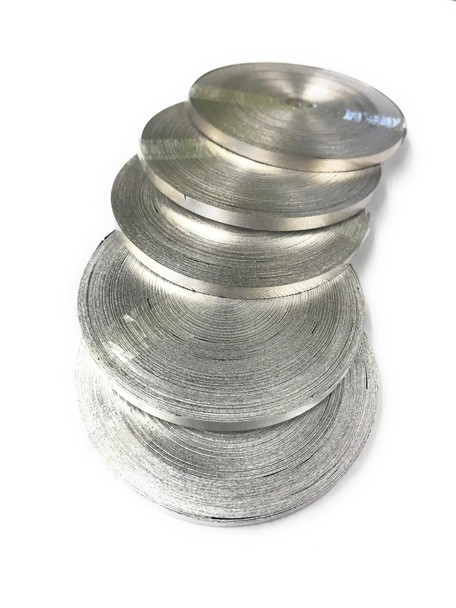

Photos:
