Az80 Mg Ribbon Sacrificial Anode Cathodic Protection G97 In Fresh Water

  • Az80 Mg Ribbon Sacrificial Anode Cathodic Protection G97 In Fresh Water
  • Az80 Mg Ribbon Sacrificial Anode Cathodic Protection G97 In Fresh Water
Place of Origin CHINA
Certification USA: G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Magnesium Strip Anode Material Magnesium Alloy
Shape Ribbon / Strip Length Adjustable
Feature Low Potential Standard ASTM97-98
Adventage Better Comprehensive Properties Application Cathodic Protection
High Light

Az80 Mg Ribbon

,

Ribbon Sacrificial Anode Cathodic Protection G97

,

Mg Ribbon Sacrificial Anode
Leave a Message
Product Description

Easy Bend Magnesium Ribbon Sacrificial Anode For Cathodic Protection



Introduction:



From raw materials - semi-continuous magnesium alloy rods - extrusion - forming, the factory is self-produced and the internal composition is controllable. Extruded ribbon magnesium anode, very flexible. Due to the higher area-to-weight ratio of magnesium ribbons, it can provide higher current output than other anodes.



Specification:



Section (inch)

3/8 x 3/4 + 0.015(1/8" corner)

Diameter of core (inch)

0.135

Core eccentric (inch)

<1/16

Weight (lbs/feet)

0.243

Standard coil length (feet)

1000

Coil weight (lbs)

243 (110kgs)



Chemical composition %:



Mg Mn Zn Al Cu Ni Fe Si Impurities
(max) (max) (max) (max) (max) each total
Balance 0.50-1.3 / 0.01 0.02 0.001 0.03 / 0.05 0.3
Balance 0.20min 0.7-1.3 2.5-3.5 0.01 0.001 0.002 0.02 0.05 0.3



The electrochemical performance of :



Open voltage

(-V)

Closed voltage

(-V)

Actual capacity

(A.h/kg)

Efficiency

(%)
1.50-1.55 1.45-1.50 1230min

55min



Application:



It is used for high resistivity environment, protection of pipelines in casings, temporary cathodic protection of pipelines, protection of storage tanks and pipeline networks, grounding grids against strong electrical interference, etc.



Magnesium tape is mainly suitable for being coiled by a protective body to protect oil tanks or other steel structures in high-resistivity electrolytes, or surfaces with narrow construction spaces, and high-resistivity soils, fresh water and other media.

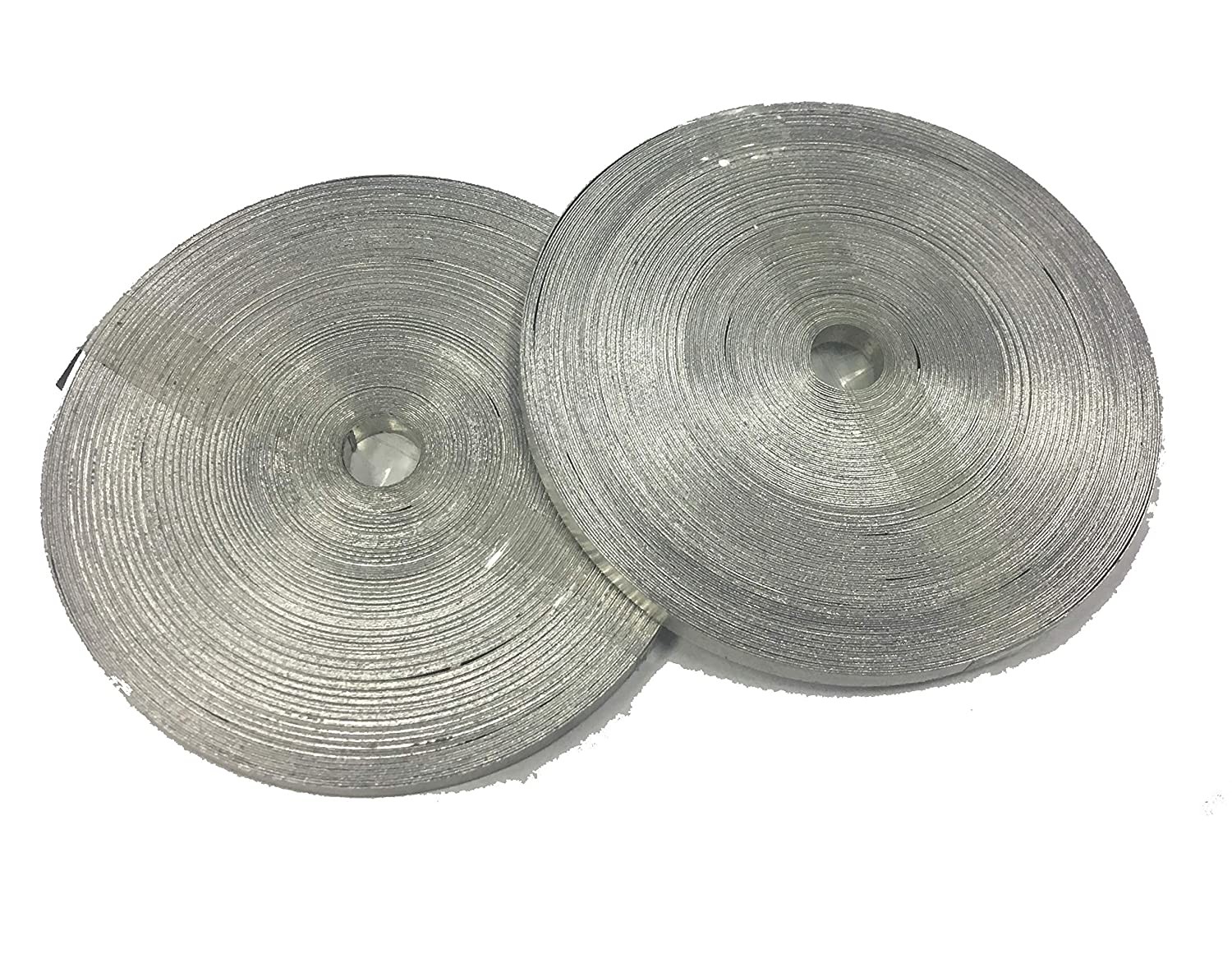

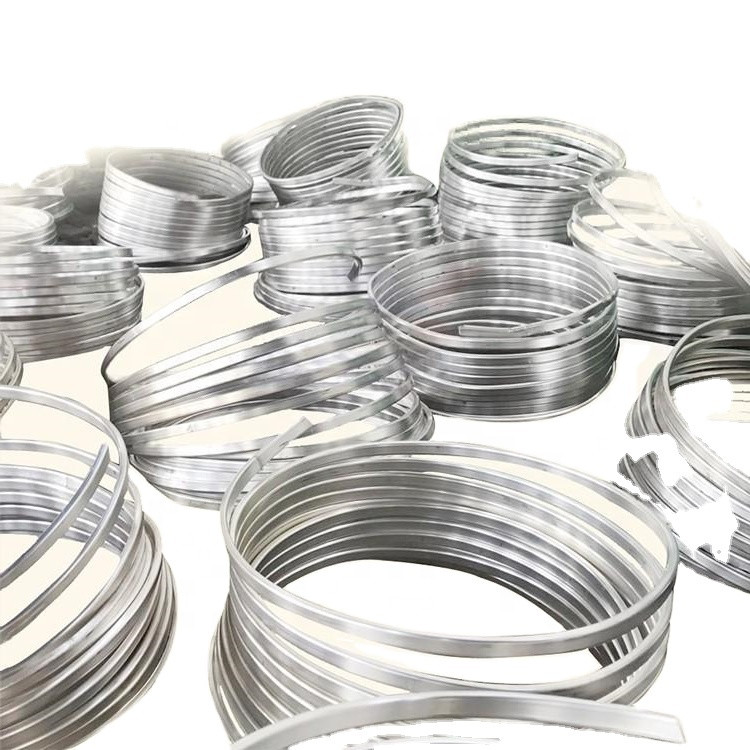

Photos:



Az80 Mg Ribbon Sacrificial Anode Cathodic Protection G97 In Fresh Water 0
