Zk60 0.243lb Magnesium Tape Anode Anti Corrosion Ribbon For Storage Tanks

  • Zk60 0.243lb Magnesium Tape Anode Anti Corrosion Ribbon For Storage Tanks
  • Zk60 0.243lb Magnesium Tape Anode Anti Corrosion Ribbon For Storage Tanks
Place of Origin CHINA
Certification USA: G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Magnesium Strip Anode Material Magnesium Alloy
Shape Ribbon / Strip Length Adjustable
Feature Low Potential Standard ASTM97-98
Adventage Better Comprehensive Properties Application Cathodic Protection
High Light

Zk60 Magnesium Tape

,

Magnesium Tape 0.243lb

,

Anode Anti Corrosion Ribbon For Storage Tanks
Leave a Message
Product Description

Good Anti - Corrosion Performance Magnesium Ribbon Anode For Temporary Cathodic Protection Of Pipeline



Introduction:



Cathodic protection technology is to use a metal or alloy whose potential is more negative than the metal to be protected to be electrically connected to the protected metal, and rely on the current generated by the continuous corrosion and dissolution of the metal with a negative potential to protect others.



The strip-shaped magnesium anode is flat in shape, adjustable in length, easy to bend, has good anti-corrosion performance, no external DC power supply, automatic operation after installation, no maintenance, less floor space, low engineering cost, and no interference with the external environment.



Specification:



Section (inch)

3/8 x 3/4 + 0.015(1/8" corner)

Diameter of core (inch)

0.135

Core eccentric (inch)

<1/16

Weight (lbs/feet)

0.243

Standard coil length (feet)

1000

Coil weight (lbs)

243 (110kgs)



Chemical composition %:



Mg Mn Zn Al Cu Ni Fe Si Impurities
(max) (max) (max) (max) (max) each total
Balance 0.50-1.3 / 0.01 0.02 0.001 0.03 / 0.05 0.3
Balance 0.20min 0.7-1.3 2.5-3.5 0.01 0.001 0.002 0.02 0.05 0.3



The electrochemical performance of :



Open voltage

(-V)

Closed voltage

(-V)

Actual capacity

(A.h/kg)

Efficiency

(%)
1.50-1.55 1.45-1.50 1230min

55min



Advantages:



From raw materials - semi-continuous magnesium alloy rods - extrusion - forming, the factory is independently produced and the internal composition is controllable. Extruded ribbon magnesium anode, very flexible. Due to the higher area-to-weight ratio of the magnesium ribbon, it can provide higher current output than other anodes.



Applications:



Magnesium strip is suitable for cathodic protection of high resistivity soil, fresh water and special parts with narrow space. Such as long-distance pipelines in soil or fresh water, inner walls of buried pipeline casings, large storage tanks and pipeline networks, and underground cables.

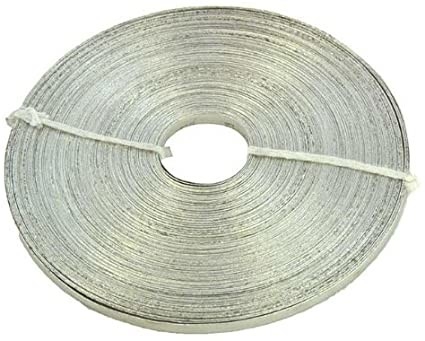

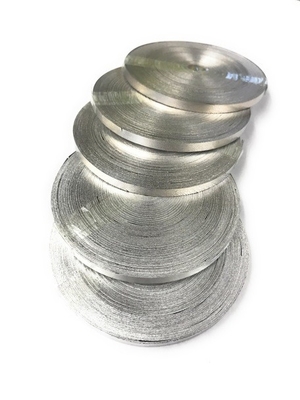

Photos:



Zk60 0.243lb Magnesium Tape Anode Anti Corrosion Ribbon For Storage Tanks 0
