ASTM Magnesium Ribbon Anode Magnesium Aluminum Alloy Strip Oem

  • ASTM Magnesium Ribbon Anode Magnesium Aluminum Alloy Strip Oem
  • ASTM Magnesium Ribbon Anode Magnesium Aluminum Alloy Strip Oem
Place of Origin CHINA
Certification USA : G97，ASTM
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keyword Magnesium Ribbon Anode Material Magnesium Alloy
Chemical Composition Al,Mn,Zn,Mg Shape Ribbon
Technical Standard GB/T 17731-2015 Application Cathodic Protection
High Light

ASTM Magnesium Ribbon Anode

,

Magnesium Ribbon Anode Oem

,

Magnesium Aluminum Alloy strip oem
Leave a Message
Product Description

Simple Operation Magnesium Ribbon Anode Applied For Cathodic Protection Of Special Parts



Introduction:





Due to the higher area-to-weight ratio of the magnesium ribbon, it can provide higher current output than other anodes. From raw materials - semi-continuous magnesium alloy rods - extrusion - forming, the factory is independently produced and the internal composition is controllable.



1) The length is adjustable and easy to bend;

2) Has a larger area-to-mass ratio;

3) It is convenient for construction and installation in narrow spaces;

4) Small footprint and low engineering cost;

5) Suitable for high resistivity environment.



Specification:



Section (inch)

3/8 x 3/4 + 0.015(1/8" corner)

Diameter of core (inch)

0.135

Core eccentric (inch)

<1/16

Weight (lbs/feet)

0.243

Standard coil length (feet)

1000

Coil weight (lbs)

243 (110kgs)



Chemical composition %:



Mg Mn Zn Al Cu Ni Fe Si Impurities
(max) (max) (max) (max) (max) each total
Balance 0.50-1.3 / 0.01 0.02 0.001 0.03 / 0.05 0.3
Balance 0.20min 0.7-1.3 2.5-3.5 0.01 0.001 0.002 0.02 0.05 0.3



Application:



Magnesium Ribbon Anode is used in high resistivity environments, protection of pipelines in casings, temporary cathodic protection of pipelines, protection of storage tanks and pipe networks, grounding grids to prevent strong electrical interference, etc.

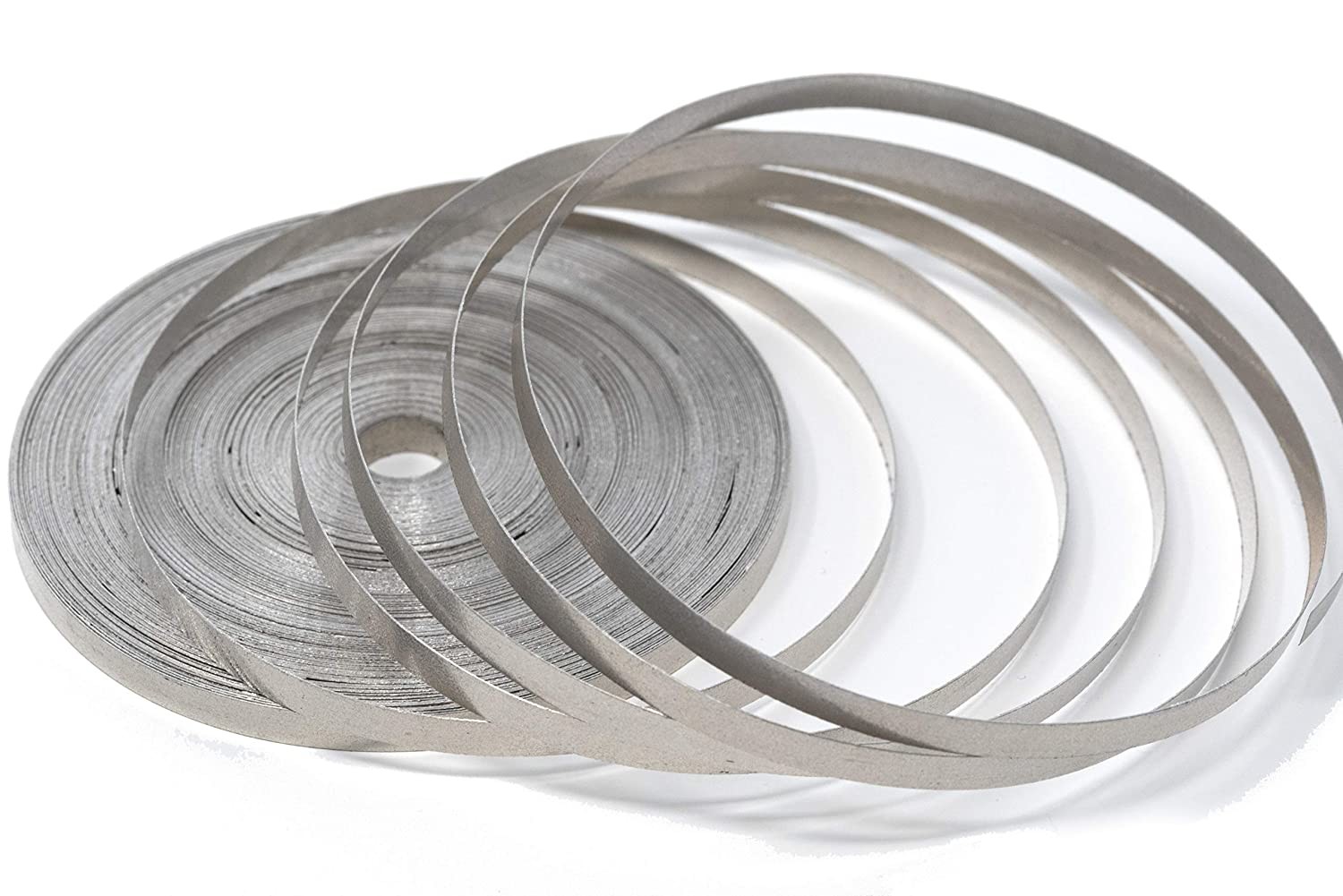

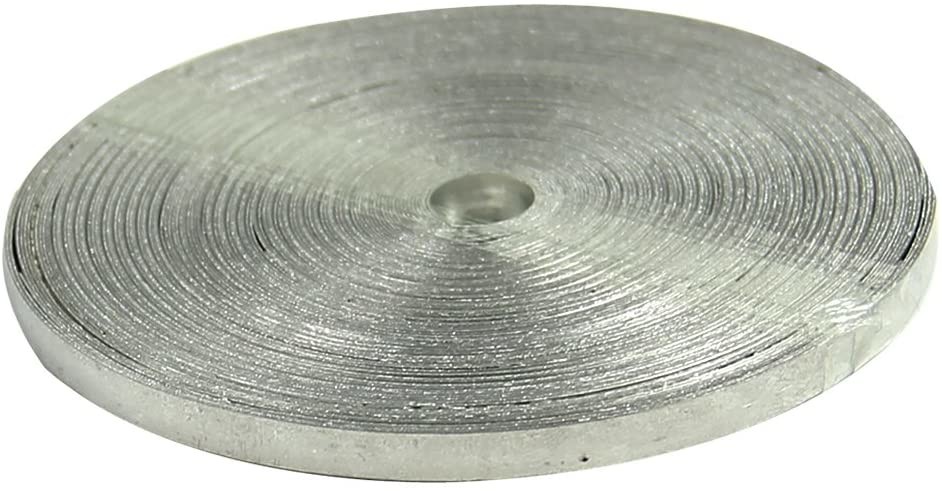

Photos:



ASTM Magnesium Ribbon Anode Magnesium Aluminum Alloy Strip Oem 0
