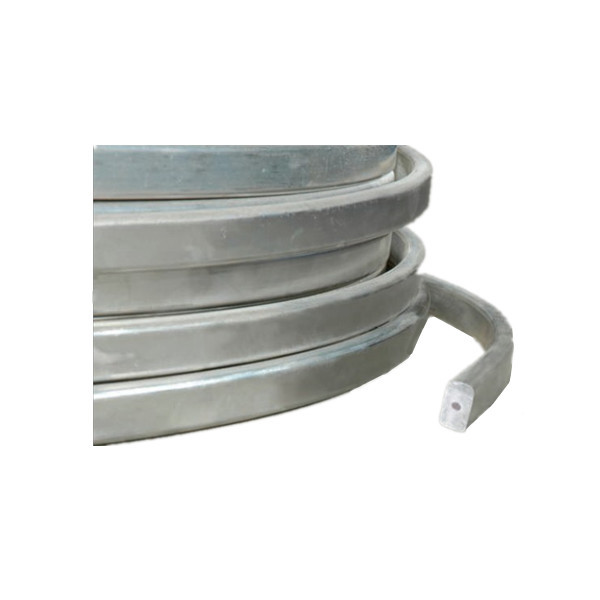

Az91 Magnesium Ribbon Anode For Pipelines
| Place of Origin | CHINA |
|---|---|
| Certification | USA : G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keyword | Magnesium Ribbon Anode | Material | Magnesium Alloy |
|---|---|---|---|
| Chemical Composition | Al,Mn,Zn,Mg | Shape | Ribbon |
| Technical Standard | GB/T 17731-2015 | Application | Cathodic Protection |
| Highlight | Az91 Magnesium Ribbon Anode,Magnesium Ribbon Anode 0.135 Inch,Wrought Magnesium Alloys anode ribbon |
||
Product Description
Wound Magnesium Ribbon Anode Applied For Local Cathodic Protection
Introduction:
The strip-shaped magnesium anode is made of pure magnesium or magnesium-manganese alloy cold-rolled and pressed. The open circuit potential (reference electrode Cu/CuSO4) is -1.7V, and the mass per unit length is 0.37kg/m. used in the environment.
The output current of the magnesium ribbon is 10mA/m in soil with a resistivity of 50Ω·m and 3mA/m in fresh water with a resistivity of 150Ω·m. The surface area of strip-shaped magnesium anode of the same mass is much larger than that of ingot-shaped magnesium anode. For example, the surface area of 11kg magnesium ingot is 0.27m2, while the length of 11kg magnesium strip is 30m, and the surface area is 1.9m2, which is 7 times that of the former.
The anode output current is proportional to the surface area and inversely proportional to the resistivity. Anode quality determines anode life. The local soil resistivity should be considered in the design, and the service life of the magnesium tape should be considered to be equivalent to the service life of the pipeline when it is wound on the pipeline in the crossing section or the casing.
Specification:
|
Section (inch) |
3/8 x 3/4 + 0.015(1/8" corner) |
|
|
Diameter of core (inch) |
0.135 |
|
|
Core eccentric (inch) |
<1/16 |
|
|
Weight (lbs/feet) |
0.243 |
|
|
Standard coil length (feet) |
1000 |
|
|
Coil weight (lbs) |
243 (110kgs) |
|
Chemical composition %:
| Mg | Mn | Zn | Al | Cu | Ni | Fe | Si | Impurities | |
| (max) | (max) | (max) | (max) | (max) | each | total | |||
| Balance | 0.50-1.3 | / | 0.01 | 0.02 | 0.001 | 0.03 | / | 0.05 | 0.3 |
| Balance | 0.20min | 0.7-1.3 | 2.5-3.5 | 0.01 | 0.001 | 0.002 | 0.02 | 0.05 | 0.3 |
Application:
Magnesium Ribbon Anode is used in high resistivity environments, protection of pipelines in casings, temporary cathodic protection of pipelines, protection of storage tanks and pipe networks, grounding grids to prevent strong electrical interference, etc.

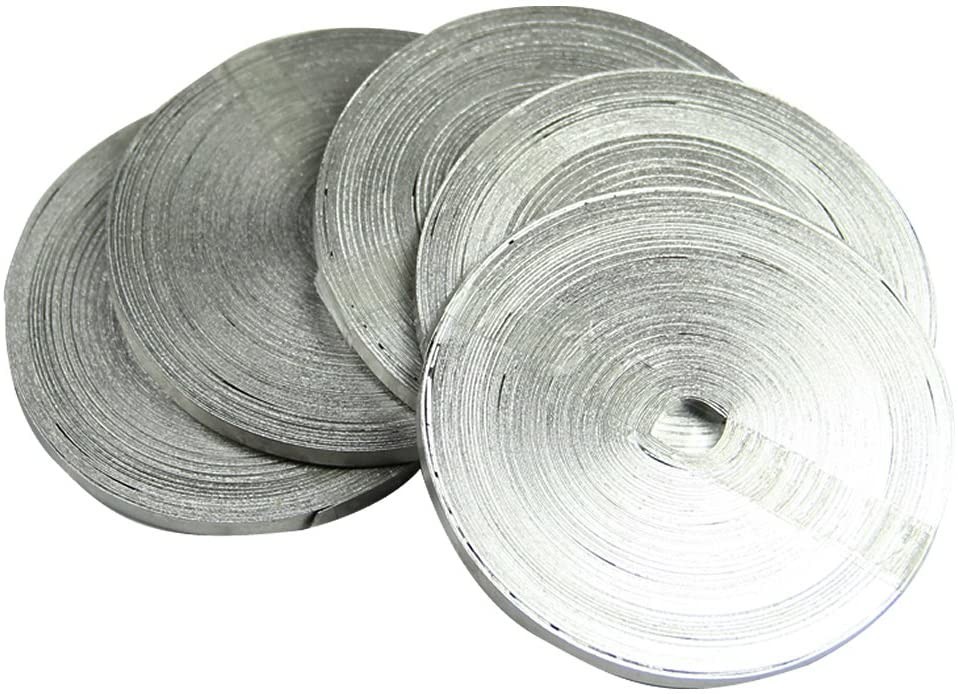

Photos:
