Small Area Magnesium Ribbon Anode 0.135 Inch Magnesium Metal Strips
| Place of Origin | CHINA |
|---|---|
| Certification | USA : G97，ASTM |
| Minimum Order Quantity | 1000KGS |
| Price | Negotiable |
| Packaging Details | Pallet packing, or on customer's request |
| Delivery Time | 30 Days after receiving the deposit |
| Payment Terms | 50% Deposit , 50% Balance before deliver to the port |
| Supply Ability | 500 mts per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keyword | Magnesium Ribbon Anode | Material | Magnesium Alloy |
|---|---|---|---|
| Chemical Composition | Al,Mn,Zn,Mg | Shape | Ribbon |
| Technical Standard | GB/T 17731-2015 | Application | Cathodic Protection |
| High Light | Magnesium Ribbon Anode 0.135 Inch,Small Area Magnesium Ribbon Anode,0.135 Inch Magnesium Metal Strips |
||
Product Description
Small Floor Area Magnesium Ribbon Anode Used For Cathodic Protection
Introduction:
In the case of using steel pipelines, the method of local cathodic protection is generally used for corrosion protection of pipelines. The specific practice in the design process is to wrap magnesium anode strips or zinc anode strips or install bracelet anodes on the main pipe in the casing, and local cathodic protection with wound magnesium anode strips is generally recommended.
Features:
1) Adjustable length and easy to bend;
2) Has a larger area-to-mass ratio;
3) Convenient construction and installation in narrow spaces;
4) Small floor area and low engineering cost;
5) Suitable for high resistivity environment.
Chemical composition %:
| Mg | Mn | Zn | Al | Cu | Ni | Fe | Si | Impurities | |
| (max) | (max) | (max) | (max) | (max) | each | total | |||
| Balance | 0.50-1.3 | / | 0.01 | 0.02 | 0.001 | 0.03 | / | 0.05 | 0.3 |
| Balance | 0.20min | 0.7-1.3 | 2.5-3.5 | 0.01 | 0.001 | 0.002 | 0.02 | 0.05 | 0.3 |
Specification:
|
Section (inch) |
3/8 x 3/4 + 0.015(1/8" corner) |
|
|
Diameter of core (inch) |
0.135 |
|
|
Core eccentric (inch) |
<1/16 |
|
|
Weight (lbs/feet) |
0.243 |
|
|
Standard coil length (feet) |
1000 |
|
|
Coil weight (lbs) |
243 (110kgs) |
|
Application:
Magnesium tape is mainly suitable for being coiled by a protective body to protect oil tanks or other steel structures in high-resistivity electrolytes, or surfaces with narrow construction spaces, and high-resistivity soils, fresh water and other media.

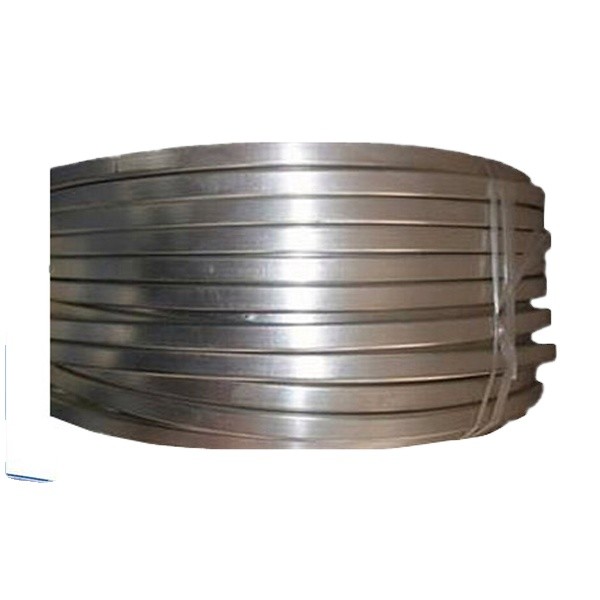

Photos:
