Az91d Mag Ribbon Aluminium Copper Magnesium Manganese Alloy Anode 9D3

  • Az91d Mag Ribbon Aluminium Copper Magnesium Manganese Alloy Anode 9D3
Place of Origin CHINA
Certification USA: G97，ASTM
Model Number 9D3
Minimum Order Quantity 1000KGS
Price Negotiable
Packaging Details Pallet packing, or on customer's request
Delivery Time 30 Days after receiving the deposit
Payment Terms 50% Deposit , 50% Balance before deliver to the port
Supply Ability 500 mts per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Magnesium Strip Anode Material Magnesium Alloy
Shape Ribbon / Strip Length Adjustable
Feature Low Potential Standard ASTM97-98
Adventage Better Comprehensive Properties Application Cathodic Protection
High Light

Az91d Mag Ribbon

,

Mag Ribbon 9D3

,

Ribbon Aluminium Copper Magnesium Manganese Alloy Anode
Leave a Message
Product Description

Large Amount Of Power Generation Magnesium Ribbon Anode For Cathodic Protection



Introduction:



Magnesium strip is suitable for cathodic protection of high resistivity soil, fresh water and special parts with narrow space. Such as soil or fresh water long-distance pipelines, the inner wall of buried pipeline casings, large storage tanks and pipeline networks, and underground cables.



Specification:



Section (inch)

3/8 x 3/4 + 0.015(1/8" corner)

Diameter of core (inch)

0.135

Core eccentric (inch)

<1/16

Weight (lbs/feet)

0.243

Standard coil length (feet)

1000

Coil weight (lbs)

243 (110kgs)



Chemical composition %:



Mg Mn Zn Al Cu Ni Fe Si Impurities
(max) (max) (max) (max) (max) each total
Balance 0.50-1.3 / 0.01 0.02 0.001 0.03 / 0.05 0.3
Balance 0.20min 0.7-1.3 2.5-3.5 0.01 0.001 0.002 0.02 0.05 0.3



The electrochemical performance of :



Open voltage

(-V)

Closed voltage

(-V)

Actual capacity

(A.h/kg)

Efficiency

(%)
1.50-1.55 1.45-1.50 1230min

55min



Cathodic protection method:



When installing the magnesium anode strip, the method of mechanical grinding can be used to expose the inner steel pipe of 3cm to 5cm, and suitable welding spots are cut on the main pipeline, and the magnesium anode strip is welded to the main pipeline by electric welding, aluminothermic welding and other welding methods. The diameter of the pipe is tightly wound against the outer wall of the pipe according to a certain angle and spacing, and the two solder joints must be insulated and anti-corrosion. After the winding of the magnesium anode tape is completed, both ends of the casing should be sealed with flexible anti-corrosion and waterproof materials, and the sealing should be ensured to prevent the entry of water or other debris.



Application:



It is used for high resistivity environment, protection of pipelines in casings, temporary cathodic protection of pipelines, protection of storage tanks and pipeline networks, grounding grids against strong electrical interference, etc.



Photos:

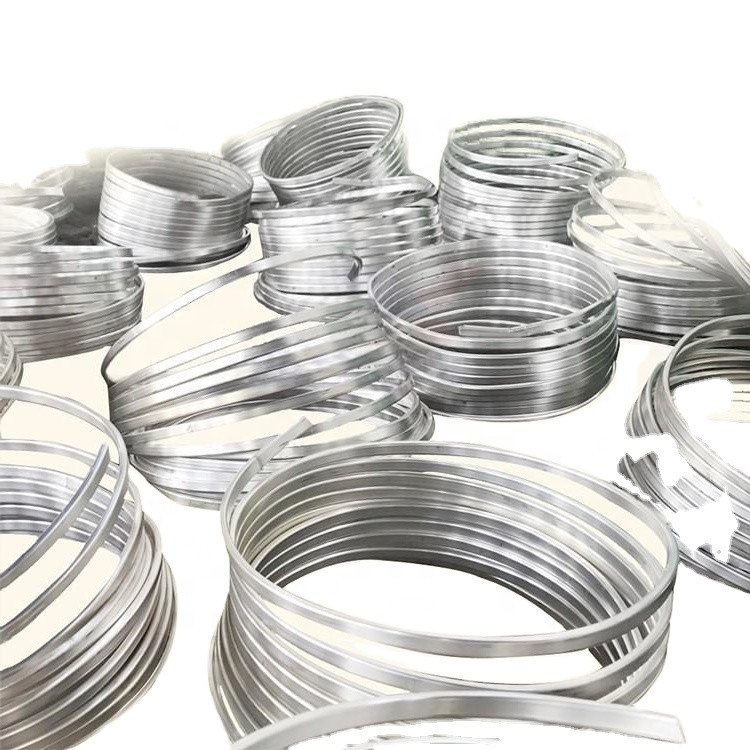

Az91d Mag Ribbon Aluminium Copper Magnesium Manganese Alloy Anode 9D3 0
