Product Details
Keyword Magnesium Ribbon Anode Material Magnesium Alloy
Chemical Composition Al,Mn,Zn,Mg Shape Ribbon
Technical Standard GB/T 17731-2015 Application Cathodic Protection
High Light

Ribbon Aluminium Magnesium Silicon Alloy Anode

,

Az80 Magnesium Silicon Alloy Anode

,

Astm 97 Magnesium Alloy Ribbon Anode
Leave a Message
Product Description

Az80 Magnesium Alloy Ribbon Aluminium Magnesium Silicon Alloy Anode Astm97 Corrosion Cotrol



Introduction:



The ribbon anode is flat in shape, adjustable in length, easy to bend, has good anti-corrosion performance, does not need external DC power supply, runs automatically after installation, requires no maintenance, requires less floor space, low engineering costs, and does not interfere with the external environment.



Features:



The magnesium strip sacrificial anode is produced with high-quality and high-purity magnesium. The product conforms to ASTM97-98, GB/T17731-2017 "Magnesium Alloy Sacrificial Anode", SY/T0019-97 "Design Specification for Cathodic Protection of Buried Steel Pipeline Sacrificial Anode", extrusion Magnesium ribbon anodes have a larger area-to-mass ratio, so they are able to generate higher currents than conventional cast anodes. These characteristics can make it unique in cathodic protection engineering, especially in long-distance pipelines, crossing pipelines, large storage pipelines, crossing pipeline sections, large storage tank bottoms, grounding grids for lightning protection, and short-term composite anodes. Anode etc.



Chemical composition %:



Mg Mn Zn Al Cu Ni Fe Si Impurities
(max) (max) (max) (max) (max) each total
Balance 0.50-1.3 / 0.01 0.02 0.001 0.03 / 0.05 0.3
Balance 0.20min 0.7-1.3 2.5-3.5 0.01 0.001 0.002 0.02 0.05 0.3



Specification:



Section (inch) 3/8 x 3/4 + 0.015(1/8" corner)
Diameter of core (inch) 0.135
Core eccentric (inch) <1/16
Weight (lbs/feet) 0.243
Standard coil length (feet) 1000
Coil weight (lbs) 243 (110kgs)



Application:



Magnesium tape is mainly suitable for being coiled by a protective body to protect oil tanks or other steel structures in high-resistivity electrolytes, or surfaces with narrow construction spaces, and high-resistivity soils, fresh water and other media.



Photos:

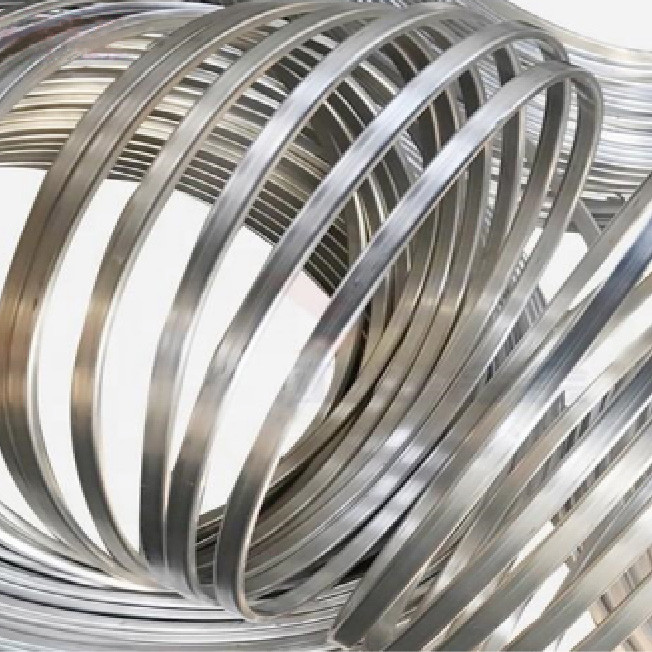

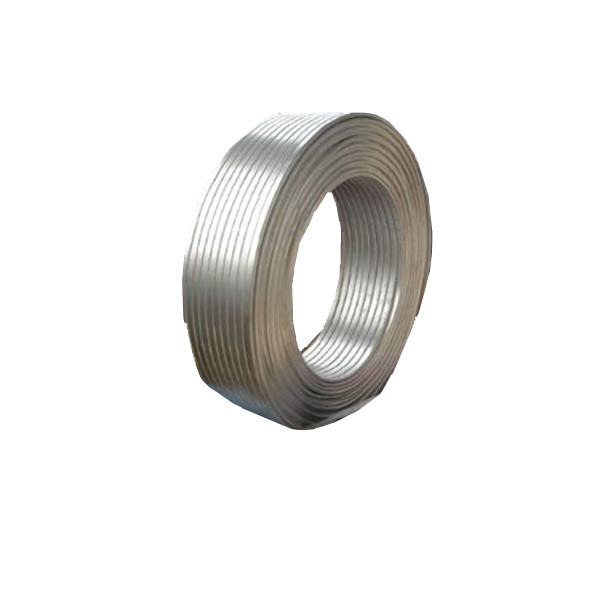

Az80 Magnesium Alloy Ribbon Aluminium Magnesium Silicon Alloy Anode Astm97 0
